Removes the xref drawing from the host drawing permanently and erases all instances of the xref drawing. = Detach

Retrieves the xref drawing and displays the most recently saved version of the drawing. = Reload

Converts the xref drawing into a block, making the drawing a permanent part of the host drawing. = Bind

The type of object that is conventionally used for this purpose is D. A revision cloud123. A revision cloud is a way to highlight changes or revisions in a drawing by creating a cloud-shaped polyline around them12. You can create a revision cloud by moving the mouse or by converting existing objects2. You can also change the style, color, layer and properties of the revision cloud13.

When creating a path array in AutoCAD, the objects being arrayed typically align with the direction of the path by default. To maintain the original orientation of the objects while following the curved path, you should turn off the "Align items" option.

Select the Object: Choose the object you want to array along the path.

Path Array Command: Use the ARRAYPATH command or go to the Array command and choose Path Array.

Select Path: Select the path (curved line or arc) along which the objects will be arrayed.

Turn Off Align Items: In the Array options, turn off the "Align items" checkbox to ensure that the objects maintain their original orientation.

This will keep the orientation of each object the same as the original, regardless of the curvature of the path.

To assign the 22x34_PDF page setup to a layout, follow these steps in the Page Setup Manager:

Open the Page Setup Manager:

Type PAGESETUP in the command line and press Enter.

Locate the 22x34_PDF Page Setup:

In the Page Setup Manager, locate the 22x34_PDF page setup in the list of available setups.

Set as Current:

Right-click (Control-click on Mac) on the 22x34_PDF page setup.

Select Set Current from the context menu. This action will assign the selected page setup to the current layout.

Verify the Changes:

The current layout will now use the 22x34_PDF page setup. You can verify this by checking the plot settings in the layout tab.

Enable Table Breaks:

Property Setting: Yes

Explanation: Enabling table breaks allows the table to be divided into multiple segments.

Direction:

Property Setting: Down

Explanation: The direction "Down" ensures that the table segments are arranged vertically one below the other.

Repeat Top Labels:

Property Setting: Yes

Explanation: This ensures that the header row (top labels) is repeated at the beginning of each segment of the table, providing clarity and consistency across the split sections.

Repeat Bottom Labels:

Property Setting: No

Explanation: Not repeating bottom labels ensures that only the top labels are repeated, which is generally sufficient for table readability and avoids redundancy.

Manual Positions:

Property Setting: No

Explanation: Not using manual positions lets AutoCAD automatically position the breaks, simplifying the process.

Manual Heights:

Property Setting: No

Explanation: Disabling manual heights allows AutoCAD to control the height of each segment automatically.

Break Height:

Property Setting: 2.7553

Explanation: This value controls the height of the table breaks, determining how much content fits into each segment.

Spacing:

Property Setting: 0.5000

Explanation: This value controls the spacing between the segments of the table, ensuring they are adequately separated for visual clarity.

By configuring these properties correctly, the CAD designer was able to split the window schedule table into two sections, maintaining readability and a clear structure as shown in the exhibits.

References:

AutoCAD Help Documentation on Table Breaks

AutoCAD User Manual on Managing and Formatting Tables

In AutoCAD, when managing sheets and layouts, different properties are used to control and organize sheet information.

Sheet Custom Property: This property allows you to define custom information specific to each sheet or layout. It is used for unique identifiers that are not globally applied to the entire sheet set but rather specific to individual sheets.

Setting the Property:

Open the Sheet Set Manager.

Right-click the sheet and select Properties.

Add a custom property for the sheet number based on discipline (e.g., C001).

Define the Custom Property:

In the Properties dialog, add a new property for the sheet number.

Enter the value (e.g., C001) for the specific sheet.

Using a Sheet Custom Property ensures that each sheet has a unique identifier that can be easily managed and referenced.

Inspect the Dimension Properties:

Double-click on the first dimension to open the text editor. Notice the dark solid color background behind the dimension text.

This indicates that a background mask is enabled for this dimension.

Check the Background Mask Settings:

Select the dimension and go to the Properties palette.

Under the 'Text' section, find the 'Fill Color' or 'Background Mask' setting. Ensure it is set to an appropriate color (e.g., the same as the background).

Compare with the Second Dimension:

Double-click on the second dimension and observe the absence of a background color during editing.

In the Properties palette, confirm that the 'Background Mask' is either disabled or set to 'None.'

Adjust Settings if Needed:

If you want both dimensions to have a background mask, enable the 'Background Mask' for the second dimension and choose the desired color.

References:

AutoCAD Documentation on dimension styles and background masks: Dimension Styles

The function that needs to be enabled to display the dimension input box while drawing a line is "Dynamic Input." This feature provides a command interface near the cursor, allowing you to input dimensions and commands directly where you are drawing.

Dynamic Input:

Effect: Displays input boxes for dimensions and commands near the cursor.

Usage: Facilitates real-time input of lengths, angles, and other parameters directly while drawing.

How to Enable:

Command: DYNMODE

Toggle: You can toggle Dynamic Input on or off using the F12 key or by typing DYNMODE and setting it to 1.

To ensure that the "Walls" layer is not visible while drafting, the appropriate property to set is "Layer Off." This will make the entire layer invisible in the drawing.

Layer Off:

Effect: Turns off the visibility of the layer in the drawing, making it not visible.

Usage: This is useful when you want to hide certain elements temporarily without affecting the actual data or properties of the elements on that layer.

Layer Freeze:

Effect: Similar to "Layer Off," but additionally, it removes the layer from memory, which can improve performance in large drawings. However, "Layer Freeze" is not the primary choice when only visibility control is needed.

Layer Lock:

Effect: Prevents editing of the layer's content but does not hide it from view.

Usage: Useful when you want to protect the layer's content from accidental modifications.

Layer Unlock:

Effect: Opposite of "Layer Lock," allows editing of the layer's content.

a baseline dimension is a linear, angular, or ordinate dimension that is measured from the baseline of a previous or selected dimension. The spacing between baseline dimensions can be set from the Dimension Style Manager, Lines tab, Baseline Spacing (DIMDLI system variable).

The most efficient method to avoid the problem of dimensions being too close together in the future is to use Dimension Style Manager. This will allow you to change the default spacing for all baseline dimensions in your drawing.

According to the AutoCAD for Design and Drafting documents1, the EXTEND command allows you to extend objects to meet the edges of other objects. To trim objects instead of extending them, you can hold down the Shift key while selecting the objects1. This will invoke the TRIM command within the EXTEND command.

polyline is a connected sequence of line segments created as a single object that can contain a width. You can change the width of a polyline by using the PEDIT command.

Based on 3 and 4, LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only. PLINEWID is a system variable that sets a default polyline width for new polylines. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices.

The function that needs to be enabled to display the dimension input box while drawing a line is "Dynamic Input." This feature provides a command interface near the cursor, allowing you to input dimensions and commands directly where you are drawing.

Dynamic Input:

Effect: Displays input boxes for dimensions and commands near the cursor.

Usage: Facilitates real-time input of lengths, angles, and other parameters directly while drawing.

How to Enable:

Command: DYNMODE

Toggle: You can toggle Dynamic Input on or off using the F12 key or by typing DYNMODE and setting it to 1.

According to the AutoCAD for Design and Drafting documents, the CHAMFER command creates a beveled corner between two lines, while the FILLET command creates a rounded corner between two lines. Both commands can be used with the Polyline option to apply chamfers or fillets to all corners of a 2D polyline1. However, in this case, the lines are not polylines but separate line segments. Therefore, using the Polyline option will not work. Instead, you can use the Multiple option to chamfer or fillet multiple sets of lines without restarting the command2.

Box 1 = annotative

an annotative dimension style is a dimension style that automatically adjusts the size of dimensions based on the viewport scale. An annotative dimension style has an icon next to its name in the Dimension Style Manager dialog box. The dimension style is annotative because the dimension text height is the same for both viewports in the layout, even though they have different viewport scales1.

Box 2 = associativeThe DIMASSOC is at its default value of 2, therefore the dimensions are associative because they are linked to and update with the measured geometry3.

To determine the most current file in the Drawing Recovery Manager, you should review the last saved date and time for each file in the Details panel. This ensures you are selecting the most recent version of the drawing.

Select each file name:

Procedure: Click on each file name in the Drawing Recovery Manager.

Review the Details panel:

Information: The Details panel provides the last saved date and time for each file.

Purpose: Helps you identify which backup file is the most recent and thus the best candidate for recovery.

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.

the mode that should be used if you want the default value of the attribute assigned upon insertion where the attribute value cannot be changed is Constant. This option sets the attribute value as constant and prevents it from being modified during a block insertion or later.

a layout viewport is a window that displays a view of model space on a layout tab. You can create multiple layout viewports to display different views of your model at different scales.

To create the viewports in a layout tab, you can use three methods:

From the Viewports dialog box: select a viewport configuration

Create individual viewports by using the MVIEW command

From the View Manager dialog box, generate named views and add them as layout viewpoints

These methods will allow you to create and arrange viewports on your layout tab.

To create multiple parallel lines (lanes) for a running track using the OFFSET command in AutoCAD, and to ensure they are placed on the current layer (LANES), follow these steps:

Initiate the OFFSET command:

Type OFFSET in the command line and press Enter.

Set the offset distance:

When prompted for the offset distance, type 10 and press Enter.

Use the Layer option:

To place the offset lines on the current layer, type L for Layer and press Enter.

Select Current to ensure the new offset lines are created on the current layer (LANES).

Select the Multiple option:

To create multiple offsets at the same distance, type M for Multiple and press Enter.

Create the offsets:

Select the polyline (outside lane) as the object to offset.

Click to the side where the offsets are to be created (inside of the original polyline).

Repeat the clicks to create the necessary number of lanes.

This method ensures that each new lane is created at a consistent distance of 10 units from the previous one and that all new lanes are placed on the current layer.

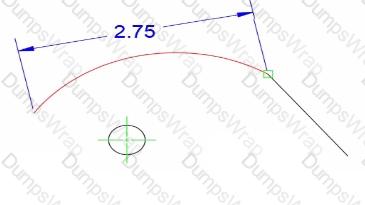

When working with arcs in AutoCAD, you can use different methods to draw them. The given exhibit shows a dimensioned arc which looks to be defined by three points: the starting point, the center point, and the ending point. This is typically how the "Start, Center, End" method works.

Start Point: The initial point where the arc begins.

Center Point: The center of the circle from which the arc is a segment.

End Point: The final point where the arc ends.

This method is useful for accurately defining the curve and ensuring it passes through the desired points.

an annotative hatch is a hatch that automatically adjusts its scale and size to match the viewport scale. This means that the hatch pattern will look the same regardless of how you zoom in or out of the viewport.

To create an annotative hatch, you need to:

Set the annotation scale tool to 1:1

Create your hatch as usual

In the properties palette, make the hatch annotative

Add annotation scales to the hatch as needed

This will create a hatch that displays correctly at different viewport scales.

The Current prompt should be used to make sure that the edge of the top step is shown in a different linetype, as shown by the dashed line in the exhibit. This way, you can set a different linetype for your current layer before using the OFFSET command4.

The object property that you should use when using the Insert Field command to generate the viewport scale, if the default scale list is being used, is the "Standard scale".

The "Standard scale" property is used to specify the standard scale factor for the viewports. It represents a value in the format of 1:n, where n is the scale factor. For example, if you set the standard scale to 1:50, the viewport will display objects at a scale of 50 units per drawing unit.

To use this property in the Insert Field command, you can select "Object" in the "Field category" dropdown and "Standard scale" from the "Field names" dropdown. This will insert a field code that will automatically update the viewport scale based on the properties of the viewport.

 Access the Xref Manager: Type XREF in the command line and press Enter.

 Select the Xref: Choose the Xref you want to modify from the list.

 Modify the Path: Click on the Path Type and select Make Relative. This ensures that the references will correctly point to the ALT-1_Xrefs folder relative to the current drawing location.

References:

AutoCAD Help Documentation on Attach and Overlay External References

True

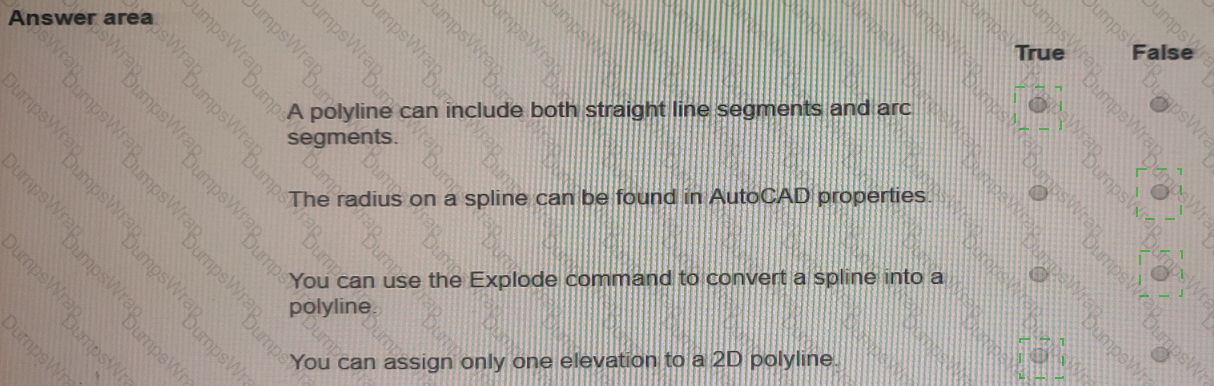

1. According to the AutoCAD for Design and Drafting documents1, a polyline is a connected sequence of line segments created as a single object. You can create straight line segments, arc segments, or a combination of the two2341. Therefore, the correct answer is True. A polyline can include both straight line segments and arc segments.

2. False.According to the AutoCAD for Design and Drafting documents1, a spline is a smooth curve that passes through or near a set of fit points, or that is defined by the vertices in a control frame. A spline does not have a constant radius, but rather a local radius at each point on the curve2. Therefore, AutoCAD cannot directly dimension or display a radius of a spline curve23. You can use some workarounds such as exploding the curve to arc segments with the FLATTEN command2, or creating a polyline over the top with arc active3, but these may not be accurate or desirable. Therefore, the correct answer is False. The radius on a spline cannot be found in AutoCAD properties.3. TrueAccording to the AutoCAD for Design and Drafting documents1, a 2D polyline is a connected sequence of line segments created as a single object. You can specify an elevation for a 2D polyline using the Edit Polyline Elevations command2. However, this command will assign the same elevation to all vertices of the polyline2. Therefore, you cannot assign different elevations to different segments or points of a 2D polyline. Therefore, the correct answer is True. You can assign only one elevation to a 2D polyline.

by Step Comprehensive Detailed Explanation with References

Open Table Style Manager: Type TABLESTYLE in the command line and press Enter to open the Table Style Manager.

Create New Table Style: Click on New to create a new table style, or modify an existing one if preferred.

Define Cell Style: In the Table Style dialog box, go to the Cell Styles tab and create a new cell style for the total cells.

Format Cell Style: Set the desired formatting for the cell style, such as background color (blue), text formatting, etc.

Apply Cell Style to Tables: Apply this custom cell style to the total cells in both the existing and any new schedules created in the project.

References:

AutoCAD Help Documentation on Using and Creating Table Styles

False: You cannot create a new clipping boundary without removing the existing clipping boundary. If you want to change the clipping boundary, you have to select the PDF underlay, right-click and choose Remove Clipping Boundary first, and then use the Clip PDF command again with a different option12.

True: To access the Underlay Layers dialog box, you have to select a PDF underlay, right-click and choose PDF Layers2. In the Underlay Layers dialog box, you can click the light bulb icon for the layer name that you want to turn on or off2.

True: To use the Align command, you have to select a polyline, right-click and choose Align3. Then you have to specify two source points on the polyline and two destination points on the PDF underlay that correspond to each other3. You can also specify a third pair of points if needed3. Finally, you have to press Enter twice to confirm the alignment3. The statement "You can use the grips on the polyline to align to the edges and corners of the PDF underlay" is true. When you place a rectangular polyline over a PDF underlay and use it as a clipping boundary, the polyline's grips can be used to adjust its size and position so that it aligns with the edges and corners of the underlay.

By hovering the cursor over a grip, you can see its tooltip display the name of the grip and its function. If you then click and drag the grip, you can move it along its corresponding axis to resize the boundary. This allows you to adjust the clipping boundary to fit exactly over the content you want to display.

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.
