User ID Requirement: The installation of the XtremApp code requires specific user permissions.

xinstall User: The xinstall user ID has the necessary permissions to perform installations and modifications on the XtremIO XMS and Storage Controllers.

Installation Process: Using the xinstall user ensures that the process is completed without permission issues.

References:

Dell XtremIO Installation Guide

Dell XtremIO User Management Guide

After creating volumes on an XtremIO system, the steps required to provision these volumes to the servers involve host configuration, establishing SAN connectivity, setting up an Initiator group, and mapping the volumes.

Host Configuration: Configure the host’s HBA (Host Bus Adapter) to ensure it can connect to the SAN (Storage Area Network). This involves setting the correct parameters such as data transfer rates and queue depths.

SAN Connectivity: Establish connectivity between the host and the SAN. This includes zoning in a Fibre Channel network or setting up the appropriate network configurations for iSCSI.

Initiator Group: Create an Initiator group within the XtremIO system. This group will contain the identifiers (WWPN for Fibre Channel or IQN for iSCSI) of the host’s HBA.

Volumes Mapping: Map the volumes to the host by creating a LUN (Logical Unit Number) mapping that associates the volumes with the Initiator group. This allows the host to see and access the volumes.

These steps ensure that the XtremIO volumes are correctly provisioned and accessible to the servers1. It’s important to follow the specific procedures outlined in the official Dell XtremIO Deploy Achievement documentation to ensure proper configuration and to avoid any potential issues during the provisioning process.

Leaving one rack unit open at the bottom of a rack containing an XtremIO X2 is a practice recommended for allowing more efficient cooling. This space acts as a buffer zone, helping to facilitate better airflow and prevent the recirculation of hot air within the rack. It is a part of thermal management strategies in data centers to optimize the cooling systems, which are crucial for maintaining the performance and longevity of the equipment1.

The Dell Best Practices Guide for Rack Enclosures emphasizes the importance of proper cooling and airflow management within rack enclosures. It suggests that efficient cooling can help reduce inefficiencies at the rack level and is essential for maintaining the necessary thermal environment for rack-mounted equipment1. While the guide does not explicitly mention leaving a rack unit open at the bottom, the principle of optimizing airflow for cooling purposes is consistent with the practice.

Understanding X-Bricks: X-Bricks are the fundamental building blocks of an XtremIO storage array. Each X-Brick consists of a pair of storage controllers and a set of SSDs.

XtremIO X1 Cluster Configuration:

An XtremIO X1 cluster can scale by adding more X-Bricks.

The scalability and configuration limits depend on the hardware and software capabilities of the XtremIO X1 system.

Maximum Number of X-Bricks:

The XtremIO X1 cluster can be configured with up to 4 X-Bricks.

This means the maximum configuration for an XtremIO X1 cluster would include 4 X-Bricks.

References:

Dell XtremIO X1 System Overview and Specifications

Dell XtremIO Deployment Services

Official XtremIO Documentation for hardware and cluster configuration limits.

Understanding Execution Throttle: The Execution Throttle setting controls the maximum number of concurrent I/O operations that can be sent from a host to a storage array. This setting is crucial for optimizing performance and preventing overloading of the storage array.

QLogic Fibre Channel HBAs: QLogic Host Bus Adapters (HBAs) are used for connecting servers to Fibre Channel storage networks. The recommended settings for these HBAs can significantly impact the performance and reliability of the storage network.

Best Practices for XtremIO and VMware:

According to best practices for connecting VMware clusters to XtremIO arrays, especially when using QLogic Fibre Channel HBAs, the Execution Throttle value is set to optimize performance.

The recommended value for the Execution Throttle setting for QLogic HBAs in a VMware environment connected to an XtremIO array is 65535. This value helps ensure that the host can handle a high number of I/O operations efficiently without overwhelming the storage array.

References:

Dell XtremIO Best Practices Guide for VMware

QLogic HBA Configuration and Performance Tuning Guides

Dell XtremIO Deployment Services

VMware and XtremIO Integration Documentation.

When powering up an XtremIO X2 multi X-Brick cluster, both the Disk Array Enclosures (DAEs) and the Storage Controllers will automatically power up once the rack Power Distribution Units (PDUs) are turned on. This process ensures that the essential components for storage and data management are operational immediately, facilitating a seamless startup of the storage environment. The DAEs contain the SSDs for data storage, while the Storage Controllers manage the data operations, ensuring high performance and reliability.

References:

Dell EMC XtremIO X2 documentation explains that upon powering the PDUs, the DAEs and Storage Controllers automatically power up as part of the system's startup process​

Checking Connectivity: Before creating a cluster, it is crucial to ensure that all components such as DAE controllers, IB switches, IPMI, and BBU are correctly connected and operational.

Technician Advisor Tool: This tool is specifically designed to assist with installation and validation of hardware components in an XtremIO environment. It provides comprehensive checks and ensures all components are correctly connected and operational.

Other Options:

WebUI: Typically used for management and monitoring after cluster creation.

Easy-Install Menu: Helps in initial setup but may not provide detailed connectivity checks.

XMCLI: Can be used for various configurations and checks, but the Technician Advisor Tool is more specialized for this purpose.

References:

Dell XtremIO Installation and Setup Guide

Technician Advisor Tool Documentation

Dell XtremIO Deployment Services

The correct sequence of steps to create a Windows volume backup using the Microsoft VSS Framework with an XtremIO cluster is as follows:

Requestor interacts with the VSS service to start the backup.

VSS service sends a Freeze request to the Writer.

Provider creates an XVC of the file system and exposes the volume to the host.

VSS service sends a Thaw request to the Writer.

Requestor uses the XVC to back up the content of the volume.

The Requestor, typically a backup application, initiates the process by interacting with Microsoft’s Volume Shadow Copy Service (VSS) to commence a snapshot backup.

The VSS service then issues a Freeze request to its Writers, which are responsible for ensuring data consistency for applications during backups.

An XtremIO Provider, which interfaces between the XtremIO storage and VSS, creates an XtremIO Virtual Copy (XVC) of the file system. This copy is then made accessible to the host system for backup purposes.

After the XVC is created, the VSS sends a Thaw request to the Writers, allowing them to resume normal operations while maintaining data integrity.

Finally, the Requestor uses the XVC to back up the content of the volume, ensuring a consistent and recoverable backup is made.

Please note that this sequence is based on the standard operation of Microsoft VSS with storage systems like XtremIO and should be verified against the most current Dell XtremIO Deploy Achievement documentation for any updates or specific instructions related to your environment.

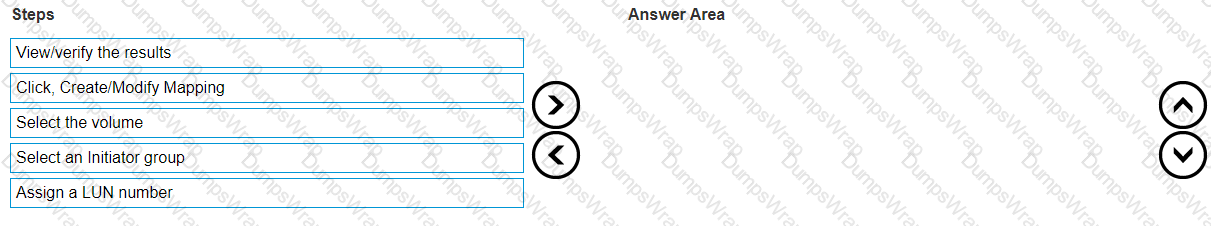

 Click, Create/Modify Mapping

 Select the volume

 Select an Initiator group

 Assign a LUN number

 View/verify the results

Click, Create/Modify Mapping: Start by navigating to the section where you can create or modify mappings in the XtremIO WebUI.

Select the volume: Choose the volume you want to map to a host from the list of available volumes.

Select an Initiator group: Pick the appropriate initiator group, which represents the host or group of hosts to which the volume will be mapped.

Assign a LUN number: Assign a Logical Unit Number (LUN) to the volume, which the host will use to access it.

View/verify the results: Finally, review the mapping configuration to ensure that everything is set up correctly and verify that the host can access the mapped volume.

References:

Dell XtremIO User Guide

XtremIO WebUI Documentation

Dell XtremIO Deployment Services

Best practices for managing volumes and host mappings in XtremIO environments

Power Requirements for XtremIO X1 Cluster: Each X-Brick in an XtremIO X1 cluster has its own power distribution units (PDUs) to ensure redundancy and reliability.

Calculation for Four X-Brick Cluster:

Each X-Brick has 2 storage controllers, each with its own PDU.

Therefore, 1 X-Brick requires 2 PDUs.

For a four X-Brick configuration: 4 X-Bricks * 2 PDUs per X-Brick = 8 PDUs.

Ensuring Adequate Power Supply: Connecting 8 PDUs to an electrical source ensures that all storage controllers in the cluster are powered reliably.

References:

Dell XtremIO X1 Installation Guide

XtremIO User Guide

Dell XtremIO Deployment Services

Identify the Components: According to the Dell XtremIO Deploy Achievement document, the XtremIO X1 system includes a Storage Controller (SC) and a Battery Backup Unit (BBU)1.

Understand the Configuration: For a single X-Brick cluster, the left power supply in Storage Controller 1 (X1-SC1-PSU-L) should be connected to the corresponding BBU to ensure proper power redundancy and failover capabilities1.

Determine the Correct Connection: The document specifies that each Storage Controller’s left power supply connects to Output1 of the BBU within the same X-Brick cluster1.

Verify the Answer: Based on the information provided, the correct power cable connection for the left power supply in Storage Controller 1 to the Battery Backup Unit in an XtremIO X1 single X-Brick cluster is to BBU1-Output1, which corresponds to option OB1.

The iostat command is used for monitoring the performance of system input/output devices on Linux/UNIX systems. It provides statistics about disk input/output operations and CPU utilization, which are essential for assessing the performance of these devices. The iostat command generates reports that can be used to change system configuration to better balance the input/output load between physical disks1. This command is particularly useful for system administrators who need to monitor and optimize disk performance and throughput2.

After completing the network configuration for all Storage Controllers in the XtremIO installation process, the next step is to check the cluster component connectivity. This step is crucial to ensure that all components within the cluster are communicating correctly and are ready for further configuration and use.

The process typically involves:

Verifying Network Settings: Confirm that the network settings applied to the Storage Controllers are correct and that they are on the correct network segments.

Testing Connectivity: Use network testing tools or the XtremIO Management Server (XMS) to test connectivity between the Storage Controllers and other cluster components such as X-Bricks and InfiniBand switches.

Checking Component Status: Review the status of all cluster components in the XMS to ensure they are operational and recognized by the system.

Resolving Connectivity Issues: If any connectivity issues are detected, troubleshoot and resolve them before proceeding with the installation process.

Documenting the Process: Keep a record of the connectivity checks and any actions taken to resolve issues as part of the installation documentation.

The documented sequence of steps to deploy an XMS OVF template includes:

Select the source file of the OVA image.

Verify the template details for space requirements.

Name the VM or keep the default name.

Select the disk format “Thin” and then, select Finish.

Select the Source File: Begin by selecting the source file of the OVA image, which is the package containing all files for the VM1.

Verify Template Details: Check the template details to ensure there is enough space on the datastore for the VM1.

Name the VM: Assign a unique name to the VM or retain the default name provided in the OVA template1.

Select Disk Format: Choose the “Thin” disk format to save storage space, as it allocates space as needed rather than upfront1.

Complete the Deployment: Finalize the deployment process by selecting ‘Finish’, which will deploy the VM to your environment1.

To create a new XtremIO report, the minimum account role required is Administrator. This role has the necessary permissions to access and manage reporting features within the XtremIO system.

Log into XMS: The systems administrator must log into the XtremIO Management Server (XMS) using an account with Administrator privileges.

Navigate to Reporting Section: Once logged in, navigate to the reporting section of the XMS interface.

Create New Report: Use the reporting tools available within the XMS to create a new report. This may involve selecting specific metrics, setting time ranges, and configuring other report parameters.

Save and Export Report: After creating the report, save it within the XMS and, if necessary, export it to the desired format for distribution or further analysis.

The Administrator role is required to ensure that the user has full access to the system’s reporting capabilities, which may include sensitive performance data and system metrics1. It’s important to follow the official Dell XtremIO Deploy Achievement documentation for the most accurate and up-to-date procedures related to report creation and management.

The send-syr-notification command in the XtremIO XMCLI (XtremIO Management Command Line Interface) is used to test the Connect Home functionality. This feature allows the XtremIO system to send system health and status information to Dell Technologies for proactive monitoring and support. References := Dell Deployment ServicesTo test the Connect Home functionality using the XtremIO XMCLI, the send-email-notification command can be used. This command is designed to send a test email to verify that the email notification system is properly configured and able to send out alerts.

Power Connectors for XtremIO X2 Dual X-Brick Configuration: Each X-Brick typically requires multiple power connections for redundancy and reliability. A dual X-Brick configuration without a physical XMS would need to account for these requirements.

Calculation:

Each X-Brick has 2 storage controllers, each requiring 2 power connections, totaling 4 power connections per X-Brick.

For a dual X-Brick configuration: 4 power connections per X-Brick * 2 X-Bricks = 8 power connections.

Each DAE (Disk Array Enclosure) typically requires 2 power connections. In a dual X-Brick setup, there are 4 DAEs, totaling 8 power connections.

Total power connections: 8 (for X-Bricks) + 8 (for DAEs) = 16 power connections.

References:

Dell XtremIO X2 Installation Guide

XtremIO User Guide

Dell XtremIO Deployment Services

The RESTful API method used to retrieve an existing configuration from an XtremIO system is the HTTP GET methD. This is a standard method used in RESTful APIs for retrieving resources. In the context of XtremIO, the GET method would be used to call endpoints that return information about the system’s configuration. For example, a GET request to /api/json/v2/types/clusters would retrieve information about the clusters1. The Official Dell XtremIO Deploy Achievement document will contain specific details on the API calls and should be referred to for the most accurate instructions.
