To enable SNMP v2c on a managed FortiSwitch, the essential requirement involves configuring the SNMP agent and community strings:

Configure SNMP Agent and Communities (D):

SNMP Agent:Activating the SNMP agent on FortiSwitch allows it to respond to SNMP requests.

Community Strings:SNMP v2c uses community strings for authentication. These strings function as passwords to grant read-only or read-write access to the SNMP data.

Understanding Other Options:

Create an SNMP user (A)is necessary for SNMP v3, not v2c, as it involves user-based authentication and encryption.

Specify an SNMP host (B)is typically a part of SNMP configuration but not a requirement just to enable SNMP.

Enable SNMP v3 (C)is not related to enabling SNMP v2c.

References:For detailed instructions on configuring SNMP on FortiSwitch, you can refer to the SNMP configuration section in the FortiSwitch administration guide available on:Fortinet Product Documentation

When FortiGate exports configuration settings to a managed FortiSwitch stack with sampling mode set to "perimeter is true," the behavior is:

B. FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.This setting ensures that all incoming traffic on normal operational ports is sampled for monitoring and analysis purposes, but it excludes the inter-chassis link (ICL) and inter-switch link (ISL) interfaces from sampling. These exclusions are typically made to prevent the duplication of sampled data and to reduce unnecessary load on the monitoring system, as these links often carry traffic already monitored at other points.

Options A and D are incorrect because they either generalize the sampling across all interfaces without exceptions or incorrectly specify egress sampling on management interfaces. Option C is also incorrect as FortiGate can modify existing sampling settings to fit the perimeter-based configuration requirement.

"The tool is a Python script that converts the supported settings in a FortiSwitch standalone configuration file to the equivalent FortiOS settings for a managed switch." Reference: FortiSwitch 7.2 Study Guide, page 349

The two reasons why port1 can be shut down are loop guard protection and Spanning Tree Protocol (STP).

Loop guard protection:This is a feature that helps to prevent switching loops in a network.expand_more A loop guard can be configured on a port to monitor for specific traffic patterns that indicate a loop. If loop guard protection detects a loop, it will shut down the port to prevent the loop from causing problems.

STP:STP is a protocol that helps to prevent switching loops.expand_more When multiple paths exist between two network devices, STP will block all but one of the paths, creating a loop-free topology.expand_more If STP detects a loop, it will shut down the ports that are involved in the loop.

In the exhibit, both ports 1 and 2 are configured with the same native VLAN 10. This configuration could create a switching loop if both ports are connected to devices on the same network segment. If a loop occurs, loop guard protection or STP could shut down port1 to prevent the loop from causing problems.

References:

Fortinet FortiSwitch 7.2 Administration Guide

"Classification: FortiSwitch maps packets with a given CoS or DSCP marking to an egress queue. There are eight egress queues on each port: queues 0 to 7."

In Quality of Service (QoS) mechanisms, the process of mapping packets with specific CoS (Class of Service) or DSCP (Differentiated Services Code Point) markings to an egress queue involves two key steps:classificationandqueuing.

Classification: This occurs on the ingress side (incoming traffic). The switch examines the packet headers (e.g., CoS or DSCP values) to determine how the traffic should be treated. Based on this classification, the switch assigns the packet to a specific priority level or queue.

Queuing: Once the packet is classified, it is mapped to an egress queue based on its priority level. The egress queues are used to manage how traffic is transmitted out of the switch.

Option A (Queuing for egress traffic)refers to managing how packets leave the switch, but it does not involve the initial mapping of CoS/DSCP values to a queue.

Option C (Rate limiting for egress traffic)is about controlling the rate of outgoing traffic, which is unrelated to CoS/DSCP mapping.

Option D (Marking for ingress traffic)involves modifying the CoS or DSCP values of packets as they enter the switch, but it does not map them to an egress queue.

Thus,classification for ingress trafficis the mechanism that identifies and maps packets with specific CoS or DSCP markings to an appropriate egress queue.

Tail-drop mode is a congestion management technique used in network devices, including FortiSwitches, to handle congestion on network ports:

Tail-Drop Mode (A):

Behavior:When a queue reaches its maximum capacity on a congested port, tail-drop mode simply drops any incoming packets that arrive after the buffer is full. This continues until the congestion is alleviated and there is space in the queue to accommodate new packets.

Application:This is a straightforward approach used when the device’s buffer allocated to the port becomes full due to sustained high traffic, preventing buffer overflow and maintaining system stability.

References:For more details on congestion management techniques and settings on FortiSwitch, you can refer to the configuration manuals available on:Fortinet Product Documentation

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

The native VLAN is implicitly part of the allowed VLAN on the port (C): On a managed FortiSwitch port, the native VLAN, which is the VLAN assigned to untagged traffic, is implicitly included in the list of allowed VLANs. This means it does not need to be explicitly specified when configuring VLAN settings on the port. This configuration simplifies VLAN management and ensures that untagged traffic is handled correctly without additional configuration steps.

In FortiSwitch, Access Control Lists (ACLs) are used to enforce security rules on both ingress and egress traffic:

ACL Evaluation Order (D):

Operational Function:FortiSwitch processes ACL entries from top to bottom, similar to how firewall rules are processed. The first match in the ACL determines the action taken on the packet, whether to allow or deny it, making the order of rules critical.

Configuration Advice:Careful planning of the order of ACL rules is necessary to ensure that more specific rules precede more general ones to avoid unintentional access or blocks.

References:For a comprehensive guide on configuring ACLs in FortiSwitch, consult the FortiSwitch security settings documentation available on:Fortinet Product Documentation

The issue described pertains to the establishment of a tunnel (likely a CAPWAP tunnel for management purposes between FortiGate and FortiSwitch). Based on typical error analysis in tunnel setup scenarios:

The CAPWAP tunnel failed to come up due to a mismatch in time (Option C): This answer is plausible because time synchronization is crucial for security protocols that underpin tunnel establishments, such as DTLS (Datagram Transport Layer Security) used within CAPWAP tunnels. If the clocks on FortiGate and FortiSwitch are significantly out of sync, the security handshake (which can include timestamp validation) could fail, preventing the tunnel from coming up.

References:

Fortinet's technical documentation typically outlines the importance of time synchronization for secure communications. In CAPWAP/DLTS scenarios, precise time matching is crucial to ensure that the cryptographic parameters align correctly during the handshake process.

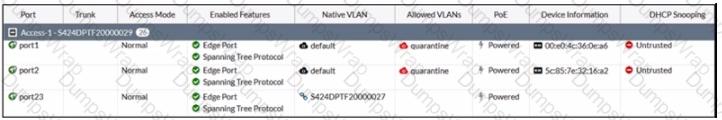

The information in the "Native VLAN" column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays "$424MPTF20000027," which matches the format of a Fortinet device serial number.

Here's a breakdown of the evidence in the image:

Native VLAN:The "Native VLAN" column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ("$424MPTF20000027").

No Trunk Information:The "Trunk" column is blank for port23, indicating it's not configured as a trunk member.

Other Ports:Port1 and port2 show "default" in the "Native VLAN" column, which is the expected behavior for access ports.

Fortinet FortiSwitch devices typically don't display the serial number of adjacent FortiSwitch devices in the "Native VLAN" column. This column is reserved for VLAN information on trunk ports.

Based on the DHCP snooping configuration details provided in the exhibit:

B. FortiSwitch is configured to trust DHCP replies coming on FortiLink interface.The configuration segment shows "trusted ports : port2 FlInK1 MLAG0," indicating that the FortiSwitch is configured to trust DHCP replies coming from the specified ports, including the FortiLink interface labeled FlInK1. This setup is critical in environments where the FortiLink interface connects directly to a trusted device, such as a FortiGate appliance, ensuring that DHCP traffic on these ports is considered legitimate.

D. Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.The "DHCP Broadcast Mode" set to 'All'under the DHCP Global Configuration indicates that DHCP client requests are allowed to broadcast across all ports within the VLAN. This setting is essential for environments needing broad DHCP client servicing across multiple access ports without restriction, facilitating network connectivity and management.

Page 452 of 7.2 study guide, specifically states "Although you can use the sniffer command to capture traffic on switch ports, the types of packets capture by the sniffer are very limited.

The use of the sniffer command on FortiSwitch CLI can be unreliable on port 23 for specific reasons related to the nature of traffic on the port:

D.The switch port might be used as a trunk member.When a switch port is configured as a trunk, it can carry traffic for multiple VLANs. If the sniffer is set up without specifying VLAN tags or a range of VLANs to capture, it may not accurately capture or display all the VLAN traffic due to the volume and variety of VLAN-tagged packets passing through the trunk port. This limitation makes using the sniffer on a trunk port unreliable for capturing specific VLAN traffic unless properly configured to handle tagged traffic.

References:

For guidelines on how to properly use sniffer commands on trunk ports and configure VLAN filtering, consult the FortiSwitch CLI reference available through Fortinet support channels, including theFortinet Knowledge Base.

In the context of the topology provided and the concepts of LAG (Link Aggregation Group) and MCLAG (Multi-Chassis Link Aggregation), the spanning tree protocol's perspective can be summarized as follows:

Switch 1, Switch 2, and Switch 3 are seen as one MCLAG peer group (Option A): In this configuration, Switches 1 and 2 form a Multi-Chassis Link Aggregation Group (MCLAG) which effectively allows them to act as a single logical entity from the perspective of downstream switches (in this case, Switch 3). Thisgrouping enhances fault tolerance and bandwidth by pooling the link resources of the two switches.

Switch 3 and Switch 4 uplinks are treated as single interfaces (Option B): This option suggests that the connections between Switch 3 and Switch 4 (presumably using LAG) are perceived by the spanning tree protocol as a single logical connection. This perception is due to the LAG configuration, which combines multiple network cables/ports into a single logical link to provide redundancy and increase bandwidth.

References:

The use of LAG and MCLAG is well-documented in networking literature and Fortinet's own documentation, as these technologies are commonly employed to enhance redundancy and bandwidth. Fortinet's implementation of these protocols is designed to maintain compatibility with standard networking protocols, including Spanning Tree Protocol (STP).
