Fortinet NSE7_PBC-7.2 Dumps

Confirming to delete all the resources in Terraform will have the following impact:

D. It destroys all the resources in the state file.

Terraform State File Role: The terraform.tfstate file contains a real-time mapping of the resources that Terraform manages, including their current configuration and relationships. This file tracks the actual state of resources provisioned by Terraform.

Impact of Destruction: When Terraform prompts for confirmation to destroy resources, and 'yes' is entered, Terraform reads the state file and systematically removes all the resources that are managed as part of that state. This is not limited to a specific .tfvars file, IAM user, or resource group—it is a global action that affects all resources tracked by the state file associated with the current Terraform workspace and configuration.

References: The function of the terraform.tfstate file and the impact of resource destruction are detailed in Terraform's official documentation. This behavior is fundamental to how Terraform manages infrastructure as code.

In this scenario, the issue is caused by the Azure service principle account not having a contributor role. This is required for the FortiGate HA floating IP to work properly. Without this role, the new primary device will not have the previous primary device floating IP address after failover. References: Fortinet Public Cloud Security knowledge source documents or study guide.

The correct answer is B and C. Both landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the TGW. Both landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate port2.

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. To send outbound traffic from the Linux instances to the internet through the security VPC, you need to do the following steps:

In the main subnet routing table in the spoke VPCs, add a new route with destination 0.0.0.0/0, next hop TGW. This route directs all traffic from the Linux instances to the TGW, which can then forward it to the appropriate destination based on the TGW route table.

In the main subnet routing table in the security VPC, add a new route with destination 0.0.0.0/0, next hop FortiGate port2. This route directs all traffic from the TGW to the FortiGate internal interface, where it can be inspected and allowed by the FortiGate policies.

The other options are incorrect because:

Adding a 0.0.0.0/0 traffic route to the Internet Gateway (IGW) in the spoke VPCs is not correct, as this would bypass the TGW and the security VPC and send all traffic directly to the internet.

Adding a 0.0.0.0/0 traffic route to the TGW in all the VPCs is not necessary, as only the spoke VPCs need to send traffic to the TGW. The security VPC needs to send traffic to the FortiGate port2.

Transit Gateways - Amazon Virtual Private Cloud : Fortinet Documentation Library - Deploying FortiGate VMs on AWS

The exhibit shows the results of a FortiCNP registry scan, which is part of the FortiCNP container protection. FortiCNP’s Container Protection provides deep visibility into the security posture of container registries and images1. The registry scan utilizes Common Vulnerabilities and Exposures (CVE) index regularly updated by NVD to detect underlying vulnerabilities, security flaws, and provides security best practices2. The registry scan is performed at the registry level, and it can scan all images in a repository if the Tag section is left blank when adding a repository2. The CAP section stands for Container Assurance Policy, which defines the minimum number of images to be scanned per repository3. Therefore, the correct statements are A and C. References: Container Image Scan | FortiCNP 22.3.a, FortiCNP, Cloud Native Application Protection Platform | FortiCNP

B. It is recommended to enable NAT on FortiGate policies. This is because the Azure load balancer uses a hash-based algorithm to distribute traffic to the FortiGate instances, and it relies on the source and destination IP addresses and ports of the packets1. If NAT is not enabled, the source IP address of the packets will be the same as the load balancer’s frontend IP address, which will result in uneven distribution of traffic and possible asymmetric routing issues1. Therefore, it is recommended to enable NAT on the FortiGate policies to preserve the original source IP address of the packets and ensure optimal load balancing and routing1. D. It supports session synchronization for handling asynchronous traffic. This means that the FortiGate instances can synchronize their session tables with each other, so that they can handle traffic that does not follow the same path as the initial packet of a session2. For example, if a TCP SYN packet is sent to FortiGate A, but the TCP SYN-ACK packet is sent to FortiGate B, FortiGate B can forward the packet to FortiGate A by looking up the session table2. This feature allows the FortiGate instances to handle asymmetric traffic that may occur due to the Azure load balancer’s hash-based algorithm or other factors.

The other options are incorrect because:

It does not use the vdom-exception command to exclude the configuration from being synced. The vdom-exception command is used to exclude certain configuration settings from being synchronized between FortiGate devices in a cluster or a high availability group3. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, but they are standalone devices with standalone configuration synchronization enabled. This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname.

It does not use the FGCP protocol. FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.

The reason the administrator cannot access the EC2 instance could be:

D. The directory location of the .pem file is incorrect.

SSH Key Location: When initiating an SSH connection to an AWS EC2 instance, you must specify the private key file (.pem file) location that corresponds to the public key used when the instance was launched. The error "Warning: Identity file Staging-key.pem not accessible: No such file or directory" indicates that the SSH client cannot find the .pem file at the specified location.

Correct File Path: The administrator needs to ensure that the path to the Staging-key.pem file is correctly specified when running the SSH command. If the file is not in the current directory from which the command is executed, the full or relative path to the file must be provided.

References: This behavior is in line with standard SSH connection practices and AWS guidelines for accessing EC2 instances. It is a common issue that occurs when the private key file is not located in the directory from which the SSH command is being executed or the path provided is incorrect.

The correct answer is C. Use FortiWebCloud.

FortiWebCloud is a SaaS cloud-based web application firewall (WAF) that protects public cloud hosted web applications from the OWASP Top 10, zero day threats, and other application layer attacks1. FortiWebCloud also includes robust features such as API discovery and protection, bot mitigation, threat analytics, and advanced reporting2. FortiWebCloud supports multiple regions across the world, and you can choose the region that is closest to your applications to minimize traffic cost3.

The other options are incorrect because:

FortiADC is an application delivery controller that provides load balancing, acceleration, and security for web applications. It is not a dedicated WAF solution and does not offer the same level of protection as FortiWebCloud4.

FortiCNP is a cloud-native platform that provides security and visibility for containerized applications. It is not a WAF solution and does not protect web applications from the OWASP Top 10 vulnerabilities5.

FortiGate is a next-generation firewall (NGFW) that provides network security and threat prevention. It is not a WAF solution and does not offer the same level of protection as FortiWebCloud for web applications. It also requires additional configuration and management to deploy in the public cloud6.

1: Overview | FortiWeb Cloud 23.3.0 - Fortinet Documentation 2: Web Application Firewall (WAF) & API Protection | Fortinet 3: [FortiWeb Cloud WAF-as-a-Service | Fortinet] 4: [Application Delivery Controller (ADC) | Fortinet] 5: [Fortinet Cloud Native Platform | Fortinet] 6: [FortiGate Next-Generation Firewall (NGFW) | Fortinet]

The correct answer is D. CloudWatch and S3.

According to the GitHub repository for the Fortinet aws-lambda-tgw script1, this function requires the following AWS services:

CloudWatch: A monitoring and observability service that collects and processes events from various AWS resources, including Transit Gateway attachments and route tables.

S3: A scalable object storage service that can store the configuration files and logs generated by the Lambda function.

By using the Fortinet aws-lambda-tgw script, you can automate the creation and configuration of Transit Gateway Connect attachments for your FortiGate devices. This can help you save time and avoid errors when adding more spoke VPCs to an existing hub and spoke topology1.

The other AWS services mentioned in the options are not required for this task. GuardDuty is a threat detection service that monitors for malicious and unauthorized behavior to help protect AWS accounts and workloads. WAF is a web application firewall that helps protect web applications from common web exploits. Inspector is a security assessment service that helps improve the security and compliance of applications deployed on AWS. DynamoDB is a fast and flexible NoSQL database service that can store various types of data.

1: GitHub - fortinet/aws-lambda-tgw

The correct answer is C and D. FortiGate NGFW can inspect north-south container traffic with label aware policies and FortiGate NGFW and FortiSandbox can be used to secure container traffic.

According to the Fortinet documentation for container security1, FortiGate NGFW can provide the following benefits for securing container infrastructure:

It can inspect north-south traffic between containers and external networks using label aware policies, which allow for dynamic policy enforcement based on Kubernetes labels and metadata.

It can integrate with FortiSandbox to provide advanced threat protection for container traffic, by sending suspicious files or URLs to a cloud-based sandbox for analysis and detection.

It can leverage FortiGuard Security Services to provide real-time threat intelligence and updates for container traffic, such as antivirus, web filtering, IPS, and application control.

The other options are incorrect because:

FortiGate NGFW cannot be placed between each application container for north-south traffic inspection, as this would create unnecessary complexity and overhead. Instead, FortiGate NGFW can be deployed at the edge of the container network or as a sidecar proxy to inspect traffic at the ingress and egress points.

FortiGate NGFW cannot connect to the worker node and protect the container, as this would not provide sufficient visibility and control over the container traffic. Instead, FortiGate NGFW can leverage the native Kubernetes APIs and services to monitor and secure the container traffic.

1: Fortinet Documentation Library - Container Security

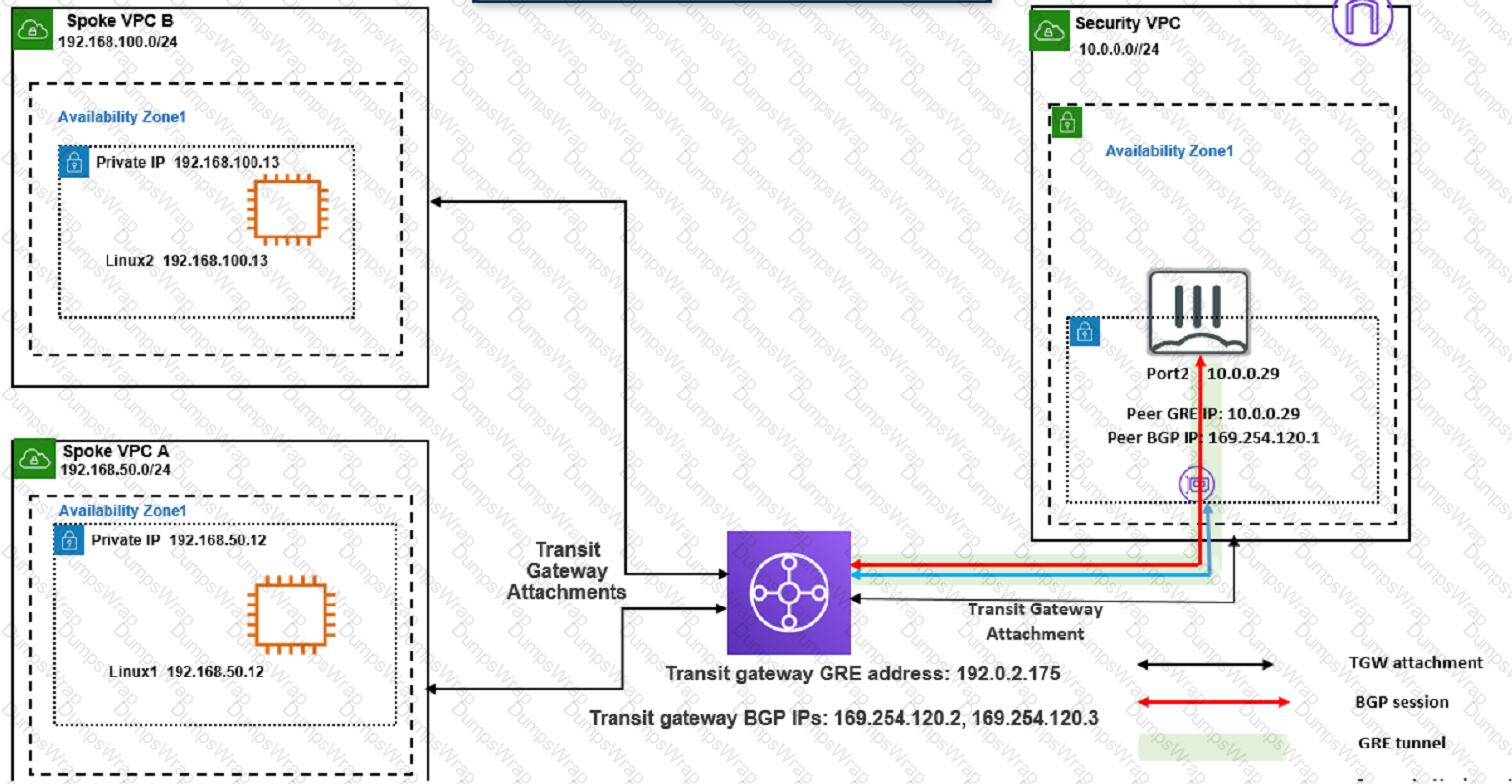

According to the AWS documentation for Transit Gateway, a Transit Gateway is a network transit hub that connects VPCs and on-premises networks. To route traffic from Linux instances to the TGW, you need to do the following steps:

In the TGW route table, associate two attachments. An attachment is a resource that connects a VPC or VPN to a Transit Gateway. By associating the attachments to the TGW route table, you enable the TGW to route traffic between the VPCs and the VPN.

In the main subnet routing table in VPC A and B, add a new route with destination 0_0.0.0/0, next hop TGW. This route directs all traffic from the Linux instances to the TGW, which can then forward it to the appropriate destination based on the TGW route table.

The other options are incorrect because:

In the TGW route table, adding route propagation to 192.168.0 0/16 is not necessary, as this is already the default route for the TGW. Route propagation allows you to automatically propagate routes from your VPC or VPN to your TGW route table.

In the main subnet routing table in VPC A and B, adding a new route with destination 0_0.0.0/0, next hop Internet gateway (IGW) is not correct, as this would bypass the TGW and send all traffic directly to the internet. An IGW is a VPC component that enables communication between instances in your VPC and the internet.

[Transit Gateways - Amazon Virtual Private Cloud]

To keep track of sensitive data files located in AWS S3 buckets and protect them from malware, the administrator should use:

C. FortiCNP DLP policies.

Data Loss Prevention (DLP): DLP policies are designed to detect and prevent unauthorized access or sharing of sensitive data. In the context of AWS S3, DLP policies can be used to scan for sensitive information stored in S3 objects and enforce protective measures to prevent data exfiltration or compromise.

FortiCNP Integration: FortiCNP is Fortinet’s cloud-native protection platform that offers security and compliance solutions across cloud environments. By applying DLP policies within FortiCNP, the administrator can ensure sensitive data within S3 is monitored and protected consistently.

References: Fortinet's FortiCNP documentation provides information on implementing DLP policies within cloud environments, highlighting the capabilities for protecting sensitive data within cloud storage services like AWS S3.

This is because the Linux1 EC2 instance is not accessible directly from the internet using its public IP address in AWS.

An internet gateway is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. Without an internet gateway, the Linux1 EC2 instance cannot receive or send traffic to or from the internet, even if it has a public IP address assigned to it.

To fix this issue, you need to attach an internet gateway to the Spoke VPC A and configure a route table that directs internet-bound traffic to the internet gateway. You also need to ensure that the Linux1 EC2 instance has a security group that allows inbound and outbound traffic on the desired ports.

[Internet Gateways - Amazon Virtual Private Cloud] : [Attach an Internet Gateway to Your VPC - Amazon Virtual Private Cloud] : [Security Groups for Your VPC - Amazon Virtual Private Cloud]

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway route table is a set of rules that determines how traffic is routed among the attachments to the transit gateway1.

A transit gateway can have multiple route tables, and you can associate different attachments with different route tables. This allows you to control how traffic is routed between your VPCs and VPNs based on your network design and security requirements1.

The other options are incorrect because:

Both the TGW attachment and propagation must be in the same TGW route table is not true. You can associate an attachment with one route table and enable propagation from another attachment to a different route table. This allows you to separate the routing domains for your attachments1.

A TGW attachment can be associated with multiple TGW route tables is not true. You can only associate an attachment with one route table at a time. However, you can change the association at any time1.

The TGW default route table cannot be disabled is not true. You can disable the default route table by deleting all associations and propagations from it. However, you cannot delete the default route table itself1.

1: Transit Gateways - Amazon Virtual Private Cloud

When an administrator decides to use the 'Use managed identity' option for the FortiGate SDN connector with Microsoft Azure and faces a connection failure, the correct action to take is:

C. Make sure to enable the system assigned managed identity on Azure.

Managed Identity Configuration: The system assigned managed identity is a feature in Azure that provides an identity for the Azure service instance (in this case, the FortiGate SDN connector) within Azure Active Directory and eliminates the need for credentials to be stored in the configuration.

Troubleshooting Connection Issues: If the SDN connector is failing to connect, it could be because the system assigned managed identity has not been enabled or configured properly in Azure for the FortiGate service.

References: Azure documentation on managed identities explains the need to enable and configure this feature for services to authenticate and interact securely with Azure resources.

When using an AWS CloudFormation template to add a new spoke to an existing transit VPC environment, the necessary components are:

The BGPASN value used for the transit VPC (Option C): BGP Autonomous System Number (ASN) is required for setting up BGP routing between the transit VPC and the new spoke. This number uniquely identifies the system in BGP routing and is crucial for correct routing and avoiding routing conflicts.

The tag value of the spoke (Option D): Tags in AWS are used to identify and manage resources. The tag value assigned to a spoke VPC helps in organizing, managing, and locating the VPC within the larger AWS environment. Tags are essential for automation scripts and policies that depend on specific identifiers to apply configurations or rules.

References: AWS CloudFormation and AWS Transit Gateway documentation provide guidance on the use of BGPASN and tags for managing and automating VPC deployments effectively.

A is incorrect because the terraform plan command will not deploy any resources at all. It will only show the changes that would be made if the terraform apply command was run. The error message in the exhibit indicates that the service principal details are invalid, which means that Terraform cannot authenticate to Azure and cannot create any resources1.

B is incorrect because you can run the terraform apply command without running the terraform plan command first. The terraform apply command will automatically generate a new plan and prompt you to approve it before applying it2. However, running the terraform plan command first can help you preview the changes and avoid any unwanted or unexpected actions.

C is correct because you must run the terraform init command once before the terraform plan command. The terraform init command initializes a working directory containing Terraform configuration files. It downloads and installs the provider plugins required for your configuration, such as the Azure provider2. It also creates a hidden directory called .terraform to store the plugin binaries and other metadata1. Without running the terraform init command, the terraform plan command will fail because it cannot find the required plugins or modules.

D is correct because the terraform plan command makes Terraform do a dry run. A dry run is a simulation of what would happen if you executed a certain action, without actually performing it. The terraform plan command creates an execution plan, which is a description of the actions that Terraform would take to make your infrastructure match your configuration2. The execution plan shows you what resources will be created, modified, or destroyed, and what attributes will be changed. The execution plan does not affect your infrastructure or state file until you apply it with the terraform apply command1.
