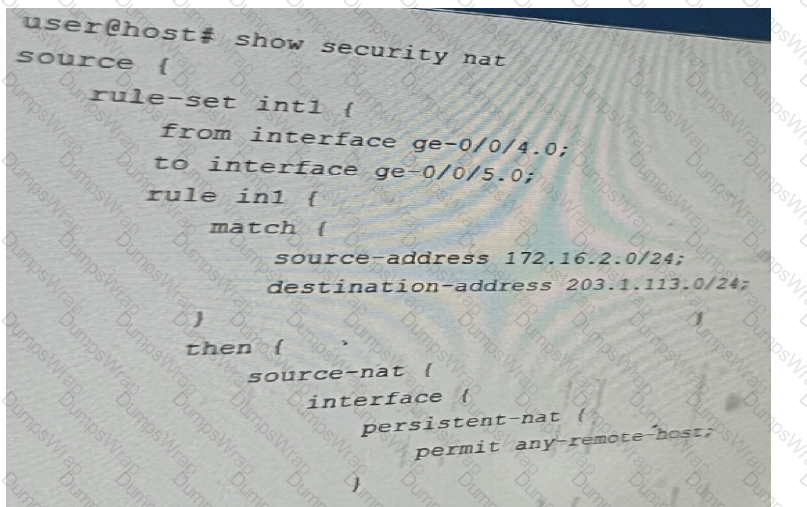

The problem describes two offices needing to communicate, but both share the same IP address space, 192.168.100.0/24. To resolve this, NAT must be configured to translate the conflicting address spaces on each side. Here’s how each of the configurations works:

Option A (Correct):This source NAT rule translates the source address of traffic from Office B to Office A. By configuring source NAT, the source IP addresses from Office B (192.168.210.0/24) will be translated when communicating with Office A (192.168.200.0/24). This method ensures that there is no overlap in address space when packets are transmitted between the two offices.

Option D (Correct):This is a source NAT rule configured on Office B, which translates the source addresses from Office A to prevent address conflicts. It ensures that when traffic is initiated from Office A to Office B, the overlapping address range (192.168.100.0/24) is translated.

Options B and C (Incorrect):These options involve static NAT rules that map address ranges between the two offices, but they do not resolve the overlapping IP address space issue effectively. Static NAT is not the optimal solution in this scenario since the problem involves address space conflict, which requires translation of source addresses during communication.

Juniper References:

Juniper NAT Configuration Guide: Detailed instructions on how to configure source NAT and resolve address conflicts between networks.

==========

In this configuration, User1 is logged into logical system LSYS-1, which restricts access and visibility to that particular system. This ensures isolation between logical systems on the same physical device. Only a system administrator can assign additional permissions. For more details, see Juniper Logical Systems Guide.

From the exhibit, we see that User1 is logged into logical system LSYS-1:

Access to Assigned Logical System (Answer A): User1, being logged into the logical system LSYS-1, only has access to the configuration and interfaces within that logical system. This is a key feature of logical systems in Junos, ensuring users are restricted to their respective environments.

Logged into LSYS-1 (Answer B): The prompt shows that User1 is currently operating in LSYS-1, as indicated by the User1@SRX:LSYS-1> command line.

==========

==========

Exception traffic, including management and control plane traffic, is handled by examining host-inbound traffic configurations at the ingress interface and zone. It ensures traffic reaches necessary services like SSH and IKE securely. See Juniper Host Inbound Traffic Documentation for more.

SRX Series devices handle exception traffic (such as management traffic like SSH, Telnet, DNS queries, etc.) differently than regular transit traffic. Exception traffic is examined based on host-inbound traffic for the ingress interface and zone. If traffic is destined for the device itself (e.g., management traffic or routing protocol messages), it must be allowed as host-inbound traffic on both the ingress interface and zone.

Example Command:

bash

set security zones security-zone trust host-inbound-traffic system-services ssh

This ensures that traffic destined to the SRX device is inspected based on the ingress interface and zone.

The interfaces are active and respond to ARP for virtual IP as long as the node is the primary or active node in the SRG group. This ensures high availability and proper traffic forwarding. For information, refer to Juniper SRX HA Documentation.

The exhibit shows information about a chassis cluster and its services redundancy group (SRG1). Let's analyze the relevant details:

Explanation of Answer B (Backup Node for SRG1):

The exhibit indicates that this SRX device is in the backup role for SRG1. The status: BACKUP field confirms that this device is currently in a standby role and is not the active node for the services redundancy group.

Explanation of Answer A (Interfaces Not Active):

Since the device is in the backup role, the interfaces ge-0/0/3.0 and ge-0/0/4.0 will not respond to ARP requests for the virtual IP's MAC address. Only the active node's interfaces respond to ARP requests in a chassis cluster configuration.

Juniper Security Reference:

Chassis Cluster Redundancy Overview: In a chassis cluster, the backup node does not respond to ARP requests for the virtual IP. Only the active node handles such requests to ensure seamless traffic forwarding. Reference: Juniper Chassis Cluster Documentation.

==========

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding NAT64:

NAT64 allows IPv6-only clients to communicate with IPv4 servers by translating IPv6 addresses to IPv4 addresses and vice versa.

It is essential in environments where IPv6 clients need access to IPv4 resources.

Flow-Based vs. Packet-Based Forwarding Modes:

Flow-Based Forwarding Mode:

The SRX device processes packets based on the session state.

Supports advanced services like NAT, IDP, and ALG.

Packet-Based Forwarding Mode:

The SRX device processes each packet individually without maintaining session state.

Limited support for advanced services.

Option A: An SRX Series device should be in flow-based forwarding mode for IPv4.

True.

NAT64 requires flow-based mode for IPv4 traffic to properly translate and maintain session states.

Option B: An SRX Series device should be in packet-based forwarding mode for IPv4.

False.

Packet-based mode does not support NAT features.

Option C: An SRX Series device should be in packet-based forwarding mode for IPv6.

False.

Similar to IPv4, NAT64 requires flow-based mode for IPv6 traffic.

Option D: An SRX Series device should be in flow-based forwarding mode for IPv6.

True.

Flow-based mode is necessary for NAT64 to handle IPv6 traffic correctly.

Key Points:

NAT64 Requires Flow-Based Mode:

Both IPv4 and IPv6 interfaces involved in NAT64 must be configured in flow-based mode.

This is because NAT64 relies on session information and stateful packet inspection.

Packet-Based Mode Limitations:

Does not support NAT, as it lacks session awareness.

Not suitable for NAT64 operations.

Juniper Security References:

Juniper Networks Documentation:

"NAT64 is supported only in flow-based processing mode."

Source: Configuring NAT64

Understanding Flow-Based and Packet-Based Modes:

"Flow-based mode is required for stateful services such as NAT."

Source: Flow-Based and Packet-Based Processing

Conclusion:

To implement NAT64 on an SRX Series device, both IPv4 and IPv6 traffic must be processed in flow-based forwarding mode.

Therefore, Options A and D are the correct statements.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Scenario:

Objective: Deploy OSPF over IPsec between an SRX Series device and a third-party device using GRE tunnels.

Components Involved:

GRE (Generic Routing Encapsulation): Encapsulates packets to allow routing protocols like OSPF to run over IPsec tunnels.

IPsec: Provides security for the GRE tunnels.

OSPF: Dynamic routing protocol used over the GRE tunnel.

Option A: The GRE interface should use lo0 as endpoints.

Explanation:

Using the loopback interface (lo0) as the source and destination endpoints for GRE tunnels is a common best practice.

Advantages:

Stability: Loopback interfaces are always up, ensuring the GRE tunnel remains operational even if physical interfaces fail.

Reachability: Provides consistent endpoint IP addresses for GRE tunnels.

Configuration:

Assign IP addresses to lo0 interfaces on both devices.

Configure GRE tunnels to use these lo0 IP addresses as source and destination.

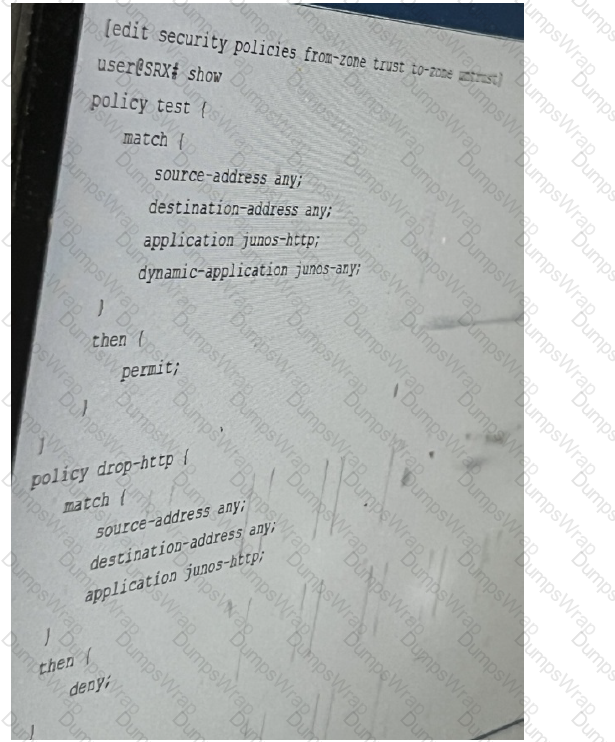

The request security policies check command allows you to simulate a session through the SRX device, checking the security policy action that would apply without needing to send real traffic. This helps in validating configurations before actual deployment. For more details, see Juniper Security Policies Testing.

The command request security policies check is used to test how a Junos security device handles a theoretical session without generating actual traffic. This command is useful for validating how security policies would be applied to a session based on various parameters like source and destination addresses, application type, and more.

Explanation of Answer A (request security policies check):

This command allows you to simulate a session and verify which security policies would be applied to the session. It's a proactive method to test security policy configurations without the need to generate real traffic.

Example usage:

bash

request security policies check from-zone trust to-zone untrust source 10.1.1.1 destination 192.168.1.1 protocol tcp application junos-https

Juniper Security Reference:

Security Policies Check: This command provides a way to simulate and verify security policy behavior without actual traffic. Reference: Juniper Security Policy Documentation.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Scenario:

Multinode HA Default Mode Deployment:

In a chassis cluster, two SRX devices operate together to provide high availability.

ICL (Inter-Cluster Link) is Down:

The control and fabric links between the nodes are not operational.

Objective:

Determine how the SRX devices verify each other's activeness without the ICL.

Option A: Custom IP addresses may be configured for the activeness probe.

Explanation:

When the control link is down, SRX devices use an ICMP ping-based activeness probe to check the peer's status.

Custom IP addresses can be configured as probe targets to verify the peer's activeness.

When Ethernet interfaces are configured as Layer 2 and added to the same VLAN without being assigned to a security zone, they will not forward traffic by default. Additionally, because they are operating in a pure Layer 2 switching mode, they lack the capability to enforce stateful security policies. For further details, refer to Juniper Ethernet Switching Layer 2 Documentation.

Explanation of Answer A (Unable to Apply Stateful Security Features):

When two interfaces are configured as Layer 2 interfaces and belong to the same VLAN but are not assigned to any security zone, traffic switched between them is handled purely at Layer 2. Stateful security features, such as firewall policies, are applied at Layer 3, so traffic between these interfaces will not undergo any stateful inspection or firewalling by default.

Explanation of Answer C (Interfaces Will Not Forward Traffic):

In Junos, Layer 2 interfaces must be added to a security zone to allow traffic forwarding. Since the interfaces in this scenario are not part of a security zone, they will not forward traffic by default until assigned to a zone. This is a security measure to prevent unintended forwarding of traffic.

Juniper Security Reference:

Layer 2 Interface Configuration: Layer 2 interfaces must be properly assigned to security zones to enable traffic forwarding and apply security policies. Reference: Juniper Networks Layer 2 Interface Documentation.

==========

==========

When using security profiles to limit system resources in Juniper logical systems:

No Resource Specification (Answer B): If a resource limit is not specified for a logical system, no specific amount of system resources is reserved for it. Instead, the logical system competes for resources along with others in the system, up to the maximum available. This allows flexible resource allocation, where logical systems can scale based on actual demand rather than predefined limits.

Multiple Logical Systems per Security Profile (Answer D): A single security profile can be applied to multiple logical systems. This allows administrators to define resource limits once in a profile and apply it across several logical systems, simplifying management and ensuring consistency across different environments.

These principles ensure efficient and flexible use of system resources within a multi-tenant or multi-logical-system environment.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Problem:

The goal is to bypass IDP for traffic destined to social media sites using Application-Based Policy Routing (APBR).

Despite the configuration, IDP is still dropping the sessions.

Need to identify two reasons why this is happening.

Key Concepts:

Application-Based Policy Routing (APBR): Allows routing decisions based on the application identified in the traffic.

IDP (Intrusion Detection and Prevention): Monitors network traffic for malicious activity and can drop suspicious packets.

Bypassing IDP: To bypass IDP for certain traffic, specific configurations are required within the APBR rule.

Option A: IDP disable is not configured on the APBR rule.

Explanation:

To bypass IDP for specific traffic using APBR, you must explicitly configure the idp-disable option within the APBR rule.

Without this configuration, even if APBR redirects the traffic, IDP will still inspect and potentially drop the traffic.

For threat remediation in a third-party network, the RADIUS protocol is necessary to communicate with the RADIUS server for details about infected hosts. CoA enables security measures to be enforced based on endpoint information provided by the RADIUS server. Details on this setup can be found in Juniper RADIUS and AAA Documentation.

When deploying threat remediation to endpoints connected through third-party devices, such as switches, the following conditions must be met for proper integration and functioning:

Explanation of Answer A (Support for AAA/RADIUS and Dynamic Authorization Extensions):

Third-party switches must support AAA (Authentication, Authorization, and Accounting) and RADIUS with Dynamic Authorization Extensions. These extensions allow dynamic updates to be made to a session's authorization parameters, which are essential for enforcing access control based on threat detection.

Explanation of Answer B (Connector Gathers MAC Information via API):

The connector uses an API to gather MAC address information from the RADIUS server. This MAC address data is necessary to identify and take action on infected hosts or endpoints.

Explanation of Answer D (Connector Initiates CoA):

The connector queries the RADIUS server for infected host details and triggers a Change of Authorization (CoA) for the infected host. The CoA allows the connector to dynamically alter the host's access permissions or isolate the infected host based on its threat status.

Juniper Security Reference:

Threat Remediation via RADIUS: Dynamic remediation actions, such as CoA, can be taken based on information received from the RADIUS server regarding infected hosts. Reference: Juniper RADIUS and CoA Documentation.

==========

In mixed mode, SRX devices can simultaneously handle Layer 2 switching and Layer 3 routing, but a reboot is required when configuring Layer 2 and Layer 3 interfaces to ensure the configuration takes effect. Layer 2 packets are switched within the defined bridge domain. Further guidance on SRX mixed mode can be found at Juniper Mixed Mode Documentation.

When an SRX Series device is configured in mixed mode, both Layer 2 switching and Layer 3 routing functionalities can be used on the same device. This enables the SRX to act as both a router and a switch for different interfaces. However, there are certain considerations:

Explanation of Answer C (Reboot Requirement):

After configuring the SRX to operate with at least one Layer 2 interface and one Layer 3 interface, the device needs to be rebooted. This is required to properly initialize the mixed mode configuration, as the SRX needs to switch between Layer 2 and Layer 3 processing modes.

Explanation of Answer D (Layer 2 Traffic Handling):

In mixed mode, traffic from Layer 2 interfaces is switched within the same bridge domain. A bridge domain defines a Layer 2 broadcast domain, and packets from Layer 2 interfaces are forwarded based on MAC addresses within that domain.

Juniper Security Reference:

Mixed Mode Overview: Juniper SRX devices can operate in mixed mode to handle both Layer 2 and Layer 3 traffic simultaneously. Reference: Juniper Mixed Mode Documentation.

==========

==========

Secure wire mode on SRX devices allows traffic to flow transparently through the firewall without being routed or switched, while still applying security policies. This is ideal for scenarios where traffic inspection is required without altering the traffic path or performing additional routing decisions. For further details on Secure Wire, refer to Juniper Secure Wire Documentation.

In this scenario, you want traffic to pass through the SRX unchanged (without routing or switching lookups) but still be subject to security policy checks. The best solution for this requirement is Secure Wire.

Explanation of Answer C (Secure Wire):

Secure Wire allows traffic to flow through the SRX without any Layer 3 routing or Layer 2 switching decisions. It effectively bridges two interfaces at Layer 2 while still applying security policies. This ensures that traffic remains unchanged, while security policies (such as firewall rules) can still be enforced.

This is an ideal solution when you need the SRX to act as a "bump in the wire" for security enforcement without changing the traffic or performing complex network lookups.

Juniper Security Reference:

Secure Wire Functionality: Provides transparent Layer 2 forwarding with security policy enforcement, making it perfect for scenarios where traffic needs to pass through unchanged. Reference: Juniper Secure Wire Documentation.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

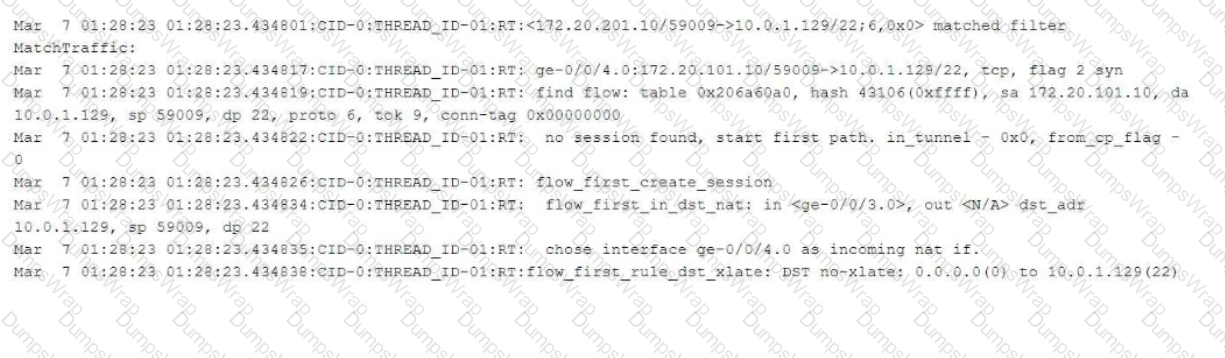

Understanding the Session Output:

Session State: Valid

Indicates that the session is active and permitted by security policies.

Policy Name: L1-to-L9/11

Shows the policy that allowed the session.

In Direction:

Source: 10.10.101.10

Destination: 10.10.102.10

Packets: 1

Bytes: 84

Out Direction:

Packets: 0

Bytes: 0

Indicates no return traffic.

Option A: The traffic is permitted.

Explanation:

The session state is Valid, and a policy name is specified.

This means the SRX device allowed the traffic.

In the scenario where internal users are trying to access the company's web server via its FQDN but the DNS server resolves to a private IP, two key actions are needed:

Static NAT (Answer B): Since the internal DNS server resolves the web server to its private IP address (10.10.10.4/24), you need to configure static NAT for both the DNS server and the webserver. This will ensure that requests coming from the internet will be translated to the web server's public IP (203.0.113.4) and the DNS server’s public IP (203.0.113.2).

Example Command:

bash

set security nat static rule-set public-to-private from zone untrust

set security nat static rule-set public-to-private rule dns-server match destination-address 203.0.113.2/32

set security nat static rule-set public-to-private rule dns-server then static-nat-prefix 10.10.10.2/32

set security nat static rule-set public-to-private rule web-server match destination-address 203.0.113.4/32

set security nat static rule-set public-to-private rule web-server then static-nat-prefix 10.10.10.4/32

Proxy ARP (Answer D): The SRX needs to respond to ARP requests for the public IP addresses of both the DNS and webserver on the interface facing the internet (ge-0/0/3). This allows the SRX to handle requests directed at the public IPs.

Example Command:

set interfaces ge-0/0/3 unit 0 family inet proxy-arp interface-address 203.0.113.2/32

set interfaces ge-0/0/3 unit 0 family inet proxy-arp interface-address 203.0.113.4/32

These two configurations allow external users to access the internal web server via its public IP, as resolved by the DNS server.
