 Technology Overview:

Q-in-Q (802.1ad), also known as VLAN stacking, allows multiple VLAN tags to be inserted into a single frame. This enables the carrying of multiple VLANs across a single backbone, preserving the original VLAN tags across different network segments.

 Application in Scenario:

By using Q-in-Q, the existing VLANs of the acquired company can be encapsulated within a single VLAN tag. This technique is highly efficient for carrying VLANs across a corporate backbone without altering the existing addressing scheme and with minimal configuration changes.

 Configuration Example:

Juniper Configuration:

shell

Copy code

set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan-id 100

set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan-id-list 100-200

set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan-id 300

set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan-id-list 300-400

This setup ensures that VLANs 100-200 on interface ge-0/0/1 and VLANs 300-400 on interface ge-0/0/2 are bundled together, achieving the desired encapsulation.

 References:

Detailed configuration and benefits are documented in the "network-mgmt.pdf" file, which outlines the necessary steps and considerations for deploying Q-in-Q​​.

Step 1: Identify the requirements for interface-level authentication.

Ensure only corporate devices can connect using their MAC addresses.

Centralized server handles authentication.

Step 2: Evaluate authentication methods.

MAC RADIUS: Uses MAC addresses for authentication via a centralized RADIUS server.

Captive Portal: Typically used for guest access, not suitable for restricting to corporate devices.

802.1X with single-secure supplicant mode: Ensures only one device per port, but requires certificates or credentials, not just MAC addresses.

802.1X with multiple supplicant mode: Allows multiple devices per port, still requires certificates or credentials.

Step 3: Select the appropriate method.

MAC RADIUS: Satisfies the requirement of using MAC addresses for device authentication via a centralized server.

References:

Juniper authentication configuration and best practices​​​​.

Commands for configuring MAC RADIUS: set protocols dot1x authenticator interface mac-radius, set access radius-server ​​​​.

For devices like printers that do not support 802.1X authentication, you can configure static MAC bypass. This allows traffic from devices with specific MAC addresses to bypass 802.1X authentication and gain network access directly.

References:

From the Juniper documentation, you can implement static MAC bypass for devices that do not support 802.1X by configuring their MAC addresses to be statically permitted on the network.

Useful Juniper Commands.txt

Tech Ops Managed Router Juniper Install Guide

shell

Copy code

# Example configuration for static MAC bypass

set protocols dot1x authenticator interface ge-0/0/1.0 mac-radius static-mac 00:11:22:33:44:55

commit

These configurations and explanations should address the questions accurately based on the provided information and referenced documents.

Understanding EVPN Route Types:

EVPN (Ethernet VPN) is used for providing Ethernet multipoint services over MPLS or VXLAN networks.

EVPN Route Types:

Type 1 (Ethernet Auto-Discovery Route): Used for auto-discovery of PEs and for detecting multi-homed devices.

Type 2 (MAC/IP Advertisement Route):

Carries endpoint MAC address information.

Carries endpoint IP address information.

Facilitates MAC learning and IP-to-MAC binding distribution.

Type 3 (Inclusive Multicast Route):

Carries replication information.

Used for forwarding multicast and broadcast traffic.

Type 5 (IP Prefix Route): Carries IP prefixes for inter-subnet connectivity, but not replication information.

Verification:

Type 2 routes are crucial for distributing MAC and IP information about endpoints.

Type 3 routes are used to manage multicast traffic effectively.

References:

Juniper EVPN Configuration Guide

Understanding EVPN Route Types

- Configure the local routing device so that it appears to be overloaded. You might do this when you want the routing device to participate in OSPF routing, but do not want it to be used for transit traffic. - Traffic destined to directly attached interfaces continues to reach the routing device. - When configured, the transit interface metrics are set to the maximum value of 65535.

OSPF Protocol Basics:

OSPF (Open Shortest Path First) is a link-state routing protocol.

Routers exchange LSAs (Link-State Advertisements) to share topology information.

LSA Acknowledgment Mechanism:

OSPF uses a reliable mechanism to ensure LSAs are received.

When a router sends an LSA to a neighbor, it expects an acknowledgment (ACK).

If an ACK is not received within a certain period, the router will retransmit the LSA.

Acknowledgment Process:

LSAs are sent over OSPF's reliable transport, which ensures delivery through acknowledgments.

This mechanism helps to maintain consistent and up-to-date topology databases across routers.

References:

OSPF RFC 2328

Understanding OSPF Operations

Reviewing POE Interface Information:

The exhibit shows the output of show poe interface and show poe controller commands.

The show poe interface command provides information about the PoE (Power over Ethernet) status on each interface.

Maximum Wattage Allocation:

The show poe controller output indicates that the maximum power available is 100 watts:

plaintext

Copy code

Controller Maximum Power consumption Guard Management Status Lldp

index power band

0 100.00W 22.40W 10W Class AT_MODE Disabled

Thus, statement A is correct.

Power Consumption and Interface Priority:

The interface ge-0/0/11 has a high priority with a max power of 25.4W and current consumption of 11.4W:

plaintext

Copy code

ge-0/0/11 Enabled ON 25.4W(L) High 11.4W 4

Given its high priority, ge-0/0/11 will continue to receive power even if the total power consumption exceeds 90 watts, as high-priority interfaces are less likely to be powered off when resources are low.

POE Status on Interfaces:

The ge-0/0/0 interface is shown as Enabled OFF, indicating PoE is not currently enabled.

plaintext

Copy code

ge-0/0/0 Enabled OFF 15.4W Low 0.0W not-applicable

PoE+ Support:

The ge-0/0/10 interface has a power class of 4, which indicates support for PoE+.

plaintext

Copy code

ge-0/0/10 Enabled ON 25.4W(L) Low 11.0W 4

References:

Exhibit output for show poe interface

Understanding PoE and PoE+ classes and priorities

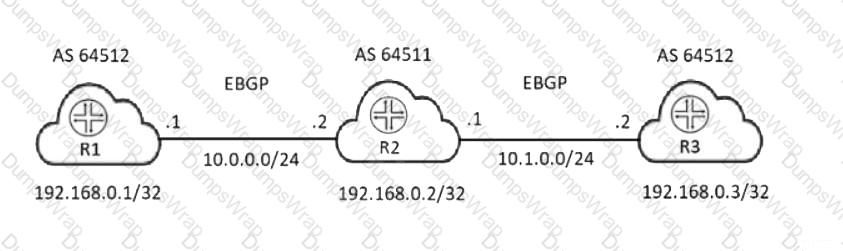

The correct sequence for BGP active route selection when BGP multipath or multihop are not configured is as follows:

Higher local preference: Routes with a higher local preference are preferred.

Shortest AS path: Routes with the shortest AS path are preferred.

Lower origin code: Routes with lower origin code (IGP < EGP < Incomplete) are preferred.

Lowest router ID: Routes with the lowest router ID are preferred.

Lowest peer address: Routes with the lowest peer address are preferred.

References:

Standard BGP route selection criteria as outlined in network routing protocols.

Documentation from "Useful Juniper Commands.txt" and "Juniper Commands.pdf" which include detailed BGP operational commands and preferences​​​​.

Understanding the Problem:

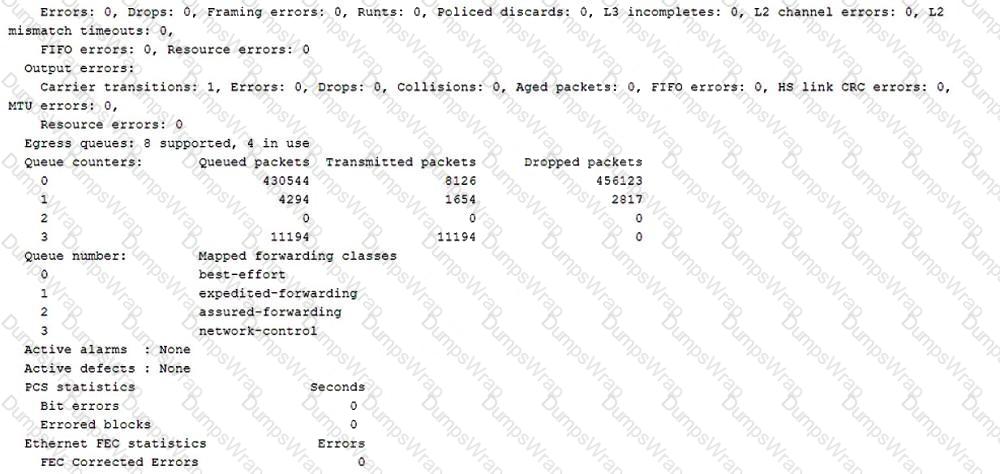

The issue involves voice packets being dropped in a newly implemented VoIP network.

Voice packets are marked correctly for the expedited forwarding (EF) queue, indicating that classification is working as intended.

Dropped packets suggest that there may be insufficient resources allocated to handle the traffic in the EF queue.

Key Concepts:

Classifiers: These are used to mark packets so that they can be placed into the appropriate forwarding class. This step is already correctly implemented as indicated by the problem statement.

Rewrite Rules: These ensure that packets retain their markings as they transit the network, but this is not the issue here as packets are already marked correctly.

Policers: These control the rate of traffic to ensure it does not exceed specified limits, but policing is not required here as the issue is with packet drops due to insufficient resources.

Schedulers: These allocate resources (bandwidth, priority) to different queues to ensure that high-priority traffic (like VoIP) is transmitted with minimal delay and packet loss.

Solution: Configuring a Scheduler:

To prevent the EF queue from being starved of resources and to ensure voice packets are not dropped, you need to configure a scheduler. This scheduler will allocate appropriate bandwidth and priority to the EF queue.

Configuring Scheduler on Juniper Devices:

Here is a sample configuration to allocate bandwidth to the expedited forwarding queue:

set class-of-service schedulers voip-scheduler transmit-rate percent 20

set class-of-service schedulers voip-scheduler priority strict-high

set class-of-service forwarding-classes queue 1 expedited-forwarding

set class-of-service forwarding-classes queue 1 scheduler voip-scheduler

In this configuration:

The voip-scheduler is set to allocate 20% of the bandwidth and is given strict-high priority to ensure voice packets are transmitted with the highest priority.

The EF queue (queue 1) is associated with the voip-scheduler.

Verification:

Ensure the scheduler is applied and active on the interfaces handling the VoIP traffic.

Monitor the interface statistics to ensure that packet drops are minimized and voice quality issues are resolved.

References:

Juniper Networks Documentation on Class of Service

Configuring Schedulers

When troubleshooting an EVPN-VXLAN IP fabric loop, the following steps are crucial:

Issue the show route table bgp.evpn.0 command on Leaf2 and verify that Type 4 routes are present: Type 4 routes indicate EVPN Ethernet Segment routes, which are essential for detecting and mitigating loops.

Issue the show route table bgp.evpn.0 command on Leaf2 and verify that Type 3 routes are present: Type 3 routes (Inclusive Multicast Ethernet Tag routes) ensure that multicast and broadcast traffic is properly handled, helping identify and troubleshoot loop issues.

References:

The commands for verifying BGP EVPN routes are standard in troubleshooting EVPN-VXLAN fabrics.

Documentation from "Useful Juniper Commands.txt" and "Juniper Commands.pdf" which provide command references for verifying EVPN route types​​​​.

A modified deficit round-robin (MDRR) scheduler is defined by the following three variables:

Priority (A):

Priority determines the importance of the queue, influencing the order in which packets are serviced. Higher priority queues are serviced before lower priority queues.

Transmit rate (C):

The transmit rate controls the amount of bandwidth allocated to each queue. It determines how quickly packets from a queue can be transmitted.

Buffer size (E):

Buffer size defines the amount of memory allocated to each queue for storing packets before they are transmitted. Larger buffer sizes can accommodate more packets but may introduce more latency.

References:

Detailed information on MDRR and its variables can be found in Juniper's QoS configuration guides and related networking documents​​​​.

From the provided IS-IS adjacency outputs:

R1 is configured to participate in both Level 1 and Level 2 (A): This is indicated by the adjacency states for both Level 1 and Level 2 on the R1 interfaces.

R2 is configured to participate in Level 2 only (D): This is shown by the adjacency state for Level 2 only on the R2 interfaces.

References:

The IS-IS adjacency outputs indicate the state and levels of participation for each router.

Configuration and command references from "Example configs for VMRCAXP01W.txt" and other documents provide context for understanding IS-IS states and levels​​​​​​.

In a PIM-SM (Protocol Independent Multicast - Sparse Mode) network setup:

Before the formation of the rendezvous-point tree, a join message is sent from R1 to R3 (RP):

R1, being the router connected to the receiver, sends a PIM join message towards the RP (R3) to join the multicast group.

Before the formation of the rendezvous-point tree, an IGMP is sent from the Receiver to R1:

The receiver sends an IGMP membership report to its directly connected router (R1), indicating its interest in joining a multicast group.

References:

The behavior of PIM-SM and the process of join messages and IGMP reports are covered in multicast networking sections of network configuration and design guides​​​​.

To understand what routes the BGP neighbor can and cannot advertise, we need to analyze the output provided in the exhibit. Here are the key points from the BGP neighbor configuration:

Address Families Configured:

The neighbor has the EVPN (Ethernet VPN) address family configured.

There is no indication of L3 VPN (Layer 3 Virtual Private Network) address family configuration in the provided output.

Advertised NLRI (Network Layer Reachability Information):

The output shows that the BGP neighbor advertises EVPN NLRI and does not have configurations to advertise L3 VPN NLRI.

Session Details:

The BGP session is established and in sync with the EVPN address family.

Based on these observations, the correct statements about the BGP neighbor's capabilities are:

C. The BGP neighbor can advertise EVPN related routes.

The exhibit confirms that the EVPN address family is configured and EVPN NLRI is advertised.

D. The BGP neighbor cannot advertise L3 VPN related routes.

There is no configuration or NLRI for L3 VPN in the exhibit, indicating that L3 VPN routes cannot be advertised by this neighbor.

References:

Useful Juniper Commands.txt

Tech Ops Managed Router Juniper Install Guide

In summary, the BGP neighbor in the exhibit can advertise EVPN routes but cannot advertise L3 VPN routes based on the provided configuration and session details.

Understanding the Problem:

The ports between the access switches and the distribution switch are shutting down when the L2PT configuration is applied. This typically happens due to a mismatch in port configurations or protocol incompatibilities.

Examining the Configurations:

L2PT (Layer 2 Protocol Tunneling) allows tunneling of Layer 2 traffic, which includes protocols like STP (Spanning Tree Protocol), CDP (Cisco Discovery Protocol), VTP (VLAN Trunking Protocol), etc. over a Layer 2 network.

If the L2PT is applied on access ports, it may lead to conflicts or shut down the ports as access ports are typically not configured to handle Layer 2 protocol traffic beyond their designated VLAN.

Solution: Configure Trunk Ports:

By configuring the links between the access switches and the distribution switch as trunk ports, you allow multiple VLANs to be carried over a single physical link. Trunk ports can carry tagged traffic for multiple VLANs, which includes the tunneled Layer 2 protocols.

This setup prevents the ports from shutting down and enables the correct tunneling of Layer 2 protocols.

References:

Juniper Documentation on L2PT Configuration

Troubleshooting Layer 2 Protocol Tunneling Issues

Understanding 802.1X Authentication:

802.1X is a network access control protocol that restricts access until the device or user is authenticated.

Guest VLAN Configuration:

When hosts fail authentication, they need to be placed in a separate VLAN to provide limited network access.

server-reject-vlan Command:

This command configures a VLAN for unauthenticated devices.

Ensures that devices that fail authentication are placed in a designated guest VLAN.

Configuration Example:

shell

Copy code

set protocols dot1x authenticator interface ge-0/0/1.0 server-reject-vlan guest-vlan

References:

Juniper 802.1X Authentication Configuration Guide

Juniper Guest VLAN Configuration

The address range 232.0.0.0/8 is reserved for Source-Specific Multicast (SSM). This range is specifically allocated for SSM where data is sent from a specific source to the receivers.

References:

Source-Specific Multicast (SSM) Overview, RFC 4607
