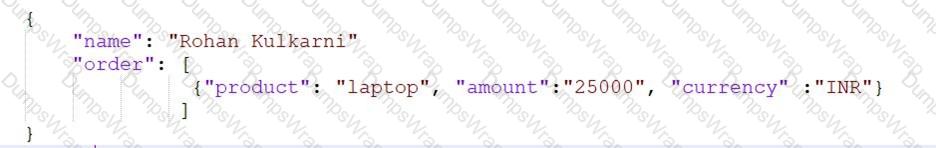

Correct answer is as below. In this case address will be stored in a variable. Hence payload will not be overwritten and will contain order details

{

orderkey: "payload.order",

addresskey: "vars.address"

}

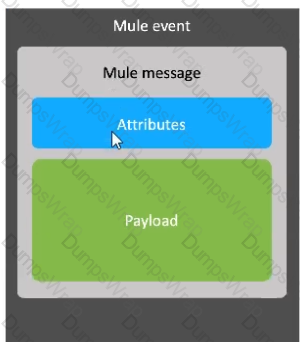

Variables are stored under Mule event. Please refer to below image for the hierarchy .

Graphical user interface Description automatically generated

Correct answer is as below.After all processing routes have finished execution, the Scatter-Gather component creates a new Mule event that combines all resulting Mule events from each route, and then passes the new Mule event to the next component in the flow.

{

"0": {

"attributes": ...,

"payload": "100"

},

"1": {

"attributes": ...,

"payload": "200"

}

}

Bottom of Form

Below are the Key performance indicators (KPIs), to measure and track the and success of the C4E and its activities, as well as the growth and health of the application network. Most of the metrics can be extracted automatically, through REST APIs, from Anypoint Platform.

• # of assets published to Anypoint Exchange

• # of interactions with Anypoint Exchange assets

• # of APIs managed by Anypoint Platform

• # of System APIs managed by Anypoint Platform

• # of API clients registered for access to APIs

• # of API implementations deployed to Anypoint Platform

• # of API invocations

• # or fraction of lines of code covered by automated tests in CI/CD pipeline

• Ratio of info/warning/critical alerts to number of API invocations

Correct answer is Nothing needs to be changed in the other APIs or their associated applications

This is the benefit of having separate interface layer. As there are no changes to interface , no changes are required on the API's which consumes this API in context

For Each Scope

The For Each scope splits a payload into elements and processes them one by one through the components that you place in the scope. It is similar to a for-each/for loop code block in most programming languages and can process any collection, including lists and arrays. The collection can be any supported content type, such as application/json, application/java, or application/xml.

General considerations about the For Each scope:

By default, For Each tries to split the payload. If the payload is a simple Java collection, the For Each scope can split it without any configuration. The payload inside the For Each scope is each of the split elements. Attributes within the original message are ignored because they are related to the entire message.

For Each does not modify the current payload. The output payload is the same as the input.

Mule Doc Reference :

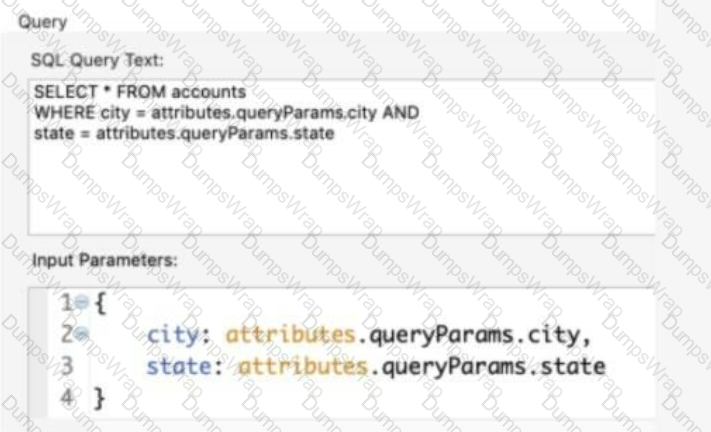

Database always return rows as an array.

Array is the correct answer

Correct answer is Specify throttling , security and other policies

MuleSoft Doc Ref :

API Gateway is responsible for below functions.

1) Determine which traffic is authorized

2) Meter the traffic

3) Logs transaction

4) Apply throttling and other policies (Not specifying. These are specified in API Manager)

Graphical user interface, text, application Description automatically generated

Correct answer is */status as it is the correct way to use wildcards while configuring path value in HTTP listener

Organization Administrators can approve/revoke/delete SLA tier access requests via API Manager only

The List operation returns an array of messages in which: Each message holds the file’s content in its payload. The file’s attributes section carries the file’s metadata (such as name, creation time, and size). The payload is empty if the element is a folder.

Correct answer is Request access to the API in Anypoint Exchange. This way we can get clientId and Client secret which we can use to access the API

Sequence can be described as follows.

* When web client sends the request , it sends payload as Blue (mentioned in question)

* In first iteration this will go to default choice , which sets payload to Red

* Via default route , flow will call itself with payload as Red

* In second iteration , as payload is Red , it will go to first route in choice router which will set payload to Blk and second iteration will end returning back payload as Blk to first iteration.

* This Blk will be again set to payload and first iteration will end returning back response as Blk

In this case as outbound call is made using HTTP: POST /child , all attributes will be replaced by this invocation. Hence query parameter will not be accessible at logger.

Logs would look like:

INFO 2021-06-09 19:14:56,039 [[MuleRuntime].uber.06: [validationtest].batch-job-validationtestBatch_Job-work-manager @6de10f3e] [processor: validationtestFlow/processors/1/route/0/route/0/aggregator/processors/0; event: bfb751e1-9939-11eb-9f69-02053763653a] org.mule.runtime.core.internal.processor.LoggerMessageProcessor:

[

“\”A\””,

“\”C\””,

“\”D\””

]

—-

INFO 2021-06-09 19:15:02,486 [[MuleRuntime].uber.06: [validationtest].batch-job-validationtestBatch_Job-work-manager @6de10f3e] [processor: validationtestFlow/processors/1/route/0/route/0/aggregator/processors/0; event: bfb751e1-9939-11eb-9f69-02053763653a] org.mule.runtime.core.internal.processor.LoggerMessageProcessor: [

“\”E\””

]

Batch aggregator value is 3. Hence in first time it will print [“A”, “C”, “D”] and in next iteration it will print [ “E” ]

--------------------------------------------------------------------------------------------------------------------------------------------------

Correct answer is [ “E” ]

Transform Message Add write_date is coverting payload in JSON format and same JSON payload is avaialble to file write processor. However, if the payload is a different format (for example, not CSV) , you can place the transformation inside the Write operation to generate content that will be written without producing a side effect on the message in transit. This is not done in this case. By default, the connector writes whatever is in the message payload. Hence JSON payload will be written to file.

Its primary function is to design and develop fully functional Mule applications in a hosted development environment.

Correct answer is An Object containing all three Mule event Objects

The Scatter-Gather component is a routing event processor that processes a Mule event through different parallel processing routes that contain different event processors. Each route receives a reference to the Mule event and executes a sequence of one or more event processors. Each of these routes uses a separate thread to execute the event processors, and the resulting Mule event can be either the same Mule event without modifications or a new Mule event with its own payload, attributes, and variables. The Scatter-Gather component then combines the Mule events returned by each processing route into a new Mule event that is passed to the next event processor only after every route completes successfully.

The Scatter-Gather component executes each route in parallel, not sequentially. Parallel execution of routes can greatly increase the efficiency of your Mule application and may provide more information than sequential processing.

Sample output is as below

Table Description automatically generated with low confidence

MuleSoft Documentation reference :

Error in validation component will get processed by Processer level On Error Propagate block and then error will be rethrown which will get processed by flow level error handler which will set payload to "Error- main flow". Hence correct answer is Error - main flow

1) Request is received by HTTP listener

2) Try scope gets executed

3) The validator component in the Try scope creates an Error Object because the payload is not null.

4) The On Error Propagate handles the error. The payload is set to “Error – Try scope”

6) “Error – Try scope” is returned to the 'On Error Continue' block. Main flow execution stops. Payload is set to "Error - main flow"

7) “Error - main flow” is returned to the requestor in the body of the HTTP request. HTTP Status Code: 200

------------------------------------------------------------------------------------------------------------------------------------------

Reference Diagram though not exactly same, conditions are similar. They will help you answer any new question on error handling in real exam:

Timeline Description automatically generated

POM.xml contains info about the project and configurationn details used by Maven to build the project

Correct answer is Merges elements of two lists (arrays) into a single list

MuleSoft Doc Reference :

1. Set Payload “Start”

2. 'Is Balnk String' Creates an Error object with #[error.description] =“String is not blank”

3. Default Error Handler catches and Propagates error

4. 'On Error Propogate' is 'RED IN RED OUT'. It Returns Status Code : 500 & #[error.description]

--------------------------------------------------------------------------------------------------------------------------

Correct answer is String is not blank. Because validation component will throw an error as payload is not blank.

A picture containing timeline Description automatically generated

Bottom of Form

Top of Form

In this case three configurations will be required each for port 8000, 6000 and 7000.

There would be three global elements defined for HTTP connections.

Each HTTP connection will have host and port. One example shown below with host as localhost and port 6000

Graphical user interface, application Description automatically generated

To use an HTTP listener, you need to declare a configuration with a corresponding connection. This declaration establishes the HTTP server that will listen to requests.

Additionally, you can configure a base path that applies to all listeners using the configuration.

Correct answer is ${training.host}

String is the correct answer as XML is of an Object type String

Debugger can be used to debug applications to see event data movine from one flow to other

Core (dw::Core) This module contains core DataWeave functions for data transformations. It is automatically imported into any DataWeave script.

Correct Answer: Response body: "Error" Default response status code: 200.

-------------------------------------------------------------------------------------------------------------------------------------------------

1) Payload is successfully set to “Success – Started Flow”

2) When HTTP Request throws an error, execution halts

#[error.description] = “ABC"

#[error.errorType] = "XYZ"

3) The On Error Continue scope handles the error. When On Error Continue scope is invoked, all the processors in error block are executed and success response is sent back to the client with payload which is set in error flow. In this case payload is set to "Error" value in error block.

4) “Error” is returned to the requestor in the body of the HTTP request with HTTP Status Code: 200 as On error continue always sends success error code.

Reference Diagram:

Timeline Description automatically generated with medium confidence

Correct answer is as below. On complete phase only has access to batch job result statistics and payload is not available.

• Total Records Processed: 3
• Successful Records: 3
• Failed Records: 0

On Complete

During this phase, you can optionally configure the runtime to create a report or summary of the records it processed for the particular batch job instance. This phase exists to give system administrators and developers some insight into which records failed to address any issues that might exist with the input data.

Sample output is as below

Mule Ref Doc :

Choice router finds the FIRST true condition, then distribute the event to the ONE matched route.

MuleSoft Doc Ref :

The Choice router dynamically routes messages through a flow according to a set of DataWeave expressions that evaluate message content. Each expression is associated with a different routing option. The effect is to add conditional processing to a flow, similar to an if/then/else code block in most programming languages.

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route’s execution and the others are not checked. If none of the expressions are true, then the default route executes.

Diagram Description automatically generated

Correct answer is Subflow has no error handling implementation where as sync flow has.

Subflow

A subflow processes messages synchronously (relative to the flow that triggered its execution) and always inherits both the processing strategy and exception strategy employed by the triggering flow. While a subflow is running, processing on the triggering flow pauses, then resumes only after the subflow completes its processing and hands the message back to the triggering flow.

Synchronous Flow

A synchronous flow, like a subflow, processes messages synchronously (relative to the flow that triggered its execution). While a synchronous flow is running, processing on the triggering flow pauses, then resumes only after the synchronous flow completes its processing and hands the message back to the triggering flow. However, unlike a subflow, this type of flow does not inherit processing or exception strategies from the triggering flow.

This type of flow processes messages along a single thread, which is ideally suited to transactional processing

For such questions always look for Syntax:

I call it "Wrap the Map"

trains:

{(

When mapping array elements (JSON or JAVA) to XML, wrap the map operations in {(..)}

-{ } are defining the object

-( ) are transforming each element in the array as a key/value pair

* To use custom modules, you need to import the module or functions you want to use by adding the import directive to the head of your DataWeave script, for example:

1) Does not identify any functions to import from the String module:

import dw::core::Strings

2) To identify a specific function to import from the String module:

import camelize, capitalize from dw::core::Strings

3) To import all functions from the String module:

import * from dw::core::Strings

The way you import a module impacts the way you need to call its functions from a DataWeave script. If the directive does not list specific functions to import or use * from to import all functions from a function module, you need to specify the module when you call the function from your script.

* In given scenario, it's mentioned to import all of the WebStore.dwl

So correct answer is:

lookup(String, Any, Number)

This function enables you to execute a flow within a Mule app and retrieve the resulting payload.

It works in Mule apps that are running on Mule Runtime version 4.1.4 and later.

Similar to the Flow Reference component (recommended), the lookup function enables you to execute another flow within your app and to retrieve the resulting payload. It takes the flow’s name and an input payload as parameters. For example, lookup("anotherFlow", payload) executes a flow named anotherFlow.

Correct answer is

lookup( "createCustomerObject", {first: "Aice, last: "Green"})

MuleSoft Documentation Reference :

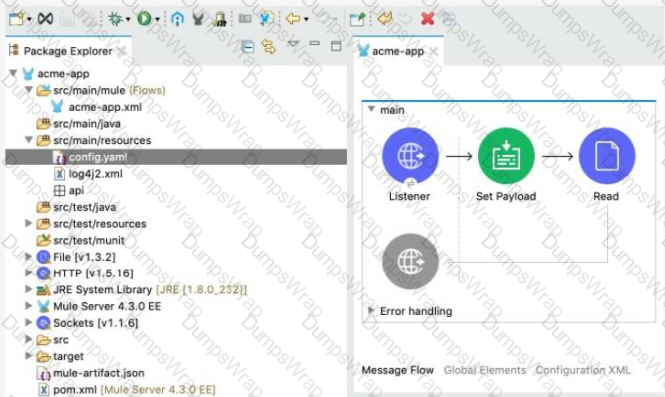

File is not updated when FTP read operations is performed.

MuleSoft Doc Ref :

Correct answer is Modify the API implementation to use auto-discovery to register with API Manager

API Autodiscovery

Configuring autodiscovery allows a deployed Mule runtime engine (Mule) application to connect with API Manager to download and manage policies and to generate analytics data. Additionally, with autodiscovery, you can configure your Mule applications to act as their own API proxy.

When autodiscovery is correctly configured in your Mule application, you can say that your application’s API is tracked by (green dot) or paired to API Manager. You can associate an API in a Mule setup with only one autodiscovery instance at a given time.

MuleSoft Doc Ref :

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route1 execution and the others are not checked. If none of the expressions are true, then the default route executes. Hence only Route1 will be executed as it is the first expression. hence output of logger is Route1.

MuleSoft Doc Ref :

The Choice router dynamically routes messages through a flow according to a set of DataWeave expressions that evaluate message content. Each expression is associated with a different routing option. The effect is to add conditional processing to a flow, similar to an if/then/else code block in most programming languages.

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route’s execution and the others are not checked. If none of the expressions are true, then the default route executes.

Diagram Description automatically generated

Choice Router

The Choice router dynamically routes messages through a flow according to a set of DataWeave expressions that evaluate message content. Each expression is associated with a different routing option. The effect is to add conditional processing to a flow, similar to an if/then/else code block in most programming languages.

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route’s execution and the others are not checked. If none of the expressions are true, then the default route executes.

Properties of

PropertyDescription

Expression (expression)

Expression in DataWeave language to evaluate input.If the expression evaluates to true, this routing option is used:

Mulesoft Doc Ref :

With respect to above information ,

Option 1 is the correct syntax as others are incorrect because of below reasons

* Single = is not the correct syntax to validate the condition. It should be ==

* If keyword is not required in when condition.

Allowed methods is an optional configuration. If nothing is specified then all HTTP methods are supported.

Rest all are mandatory.

An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. Internally, Mule uses object stores in various filters, routers, and other message processors that need to store states between messages.

Object stores are available in all deployment targets. If you deploy your application to CloudHub, you can also use Object Store V2.

Correct answer is Key/value pair in Object store

MuleSoft Documentation reference :

Centre for Enablement (C4E) is an IT operating model that enables an enterprise to build reusable assets, accumulate API’s, leverage best practices and knowledge to enable self service and efficient delivery in the organization and implement new solutions faster

As can be seen in error message , SOAP service findFlights expects the SOAP paylaod. This can be set using transform message processor which forms SOAP payload before the Consume operation that contains the destination query parameter

Setting Breakpoints

To set breakpoints, right-click a building block, then select Toggle Breakpoint.

Studio applies a red dot to the building block’s icon on the canvas.

When you run your application in Debug mode, Studio stops the flow execution at the breakpoint you have set, allowing you to check the Mule Event content in the Mule Debugger View.

Mule Ref Doc : Setting Breakpoints | MuleSoft Documentation

Correct answer is The API interfaces are specified at a granularity intended for developers to consume specific aspect of integration processes

In General > Request > Query Parameters, click the plus icon (+) to add a parameter to a request. Type a name and value for the parameter or use a DataWeave expression to define the name and value.

Graphical user interface, text, application, email Description automatically generated

You can choose Attach Project Sources to include metadata that Studio requires to reimport the deployable file as an open Mule project into your workspace. You must keep the Attach Project Sources option selected to be able to import the packaged JAR file back into a Studio workspace. But requirement here is to create smallest deployable archive that will successfully deploy to Cloudhub. Hence we can ignore this option.

We need to select Include project module and dependencies

As actual modules and external dependencies required to run the Mule application in a Mule runtime engine

Hence correct answer is

Select only below option 2) Include project module and dependencies

MuleSoft Doc Ref :

Correct answer is as below as it follows the correct syntax.

• http:
• basepath: "api"
• host : "localhost"
• port : "8081"

Mule Doc Reference :

Creates reusable APIs and assets designed to be consumed by other business units

* RAML file contains lot of information that could be considered as "not API-describing". Sort of "economy-class" members.

Equally important, but not necessarily part of the main RAML file.

* Through !includes, RAML allows us to build file-distributed API definitions, which is not only useful to encourage code reuse but also improves readability.

* We can create RAML fragments with such code and then include them in main RAML project using !include like:

types:

Book: !include bookDataType.raml and

examples:

input: !include bookExample.raml

* Additionally for

----------------------------------------------------------------------------------------------------------------------------------------

Correct Answer: D

In this case as outbound call is made using HTTP: POST /child , all attributes will be replaced by this invocation. Hence query parameter will not be accessible at logger. Hence correct answer is option 2

In this case both the flows can start without any error and requests can be received on both ports. Flow names httpListener1 can call other flow using HTTP request without any issues.

Hence correct answer is

The mule application start successfully

Web client requests can  be received at URI on port 2222 and on port 3333.

Lets check why other options are incorrect

1) The mule application fails to start. There is URL path conflict because both HTTP Listeners are configured with same path  ---- This is incorrect as port value is different in both listeners

2) The mule application start successfully. Web client requests can only be received at URI on port 2222 but not on port 3333  --- This is incorrect as there is no reason for not receiving requests on port 3333

3) The mule application fails to start because of the port binding conflict as HTTP request also use same port i.e. 3333 --- Port binding conflict will not happen in this case. It would have if both listener configurations would have been on same port . But that is not the case here.

Mule Ref Doc : HTTP Listener Reference - Mule 4 | MuleSoft Documentation

Lets revise few concepts RAML which can help us to find the answer of this question.

URI Parameters

Lets have a look at below example.

• /foos:
• /{id}:
• /name/{name}:

Here, the braces { } around property names define URI parameters. They represent placeholders in each URI and do not reference root-level RAML file properties as we saw above in the baseUri declaration. The added lines represent the resources /foos/{id} and /foos/name/{name}.

Query Parameters

Now we'll define a way to query the foos collection using query parameters. Note that query parameters are defined using the same syntax that we used above for data types:

• /foos:
• get:
• description: List all Foos matching query criteria, if provided;
• otherwise list all Foos
• queryParameters:
• name?: string
• ownerName?: string

Based on the above information , below is the only option which defines storeid as uri parameter and department as query parameter.

• /{storeId}:
• get:
• queryParameter:
• department:

Flow Reference Component

Flow Reference routes the Mule event to another flow or subflow, executes all processors in the referenced flow, and then routes the event back within the same Mule application. The following diagram shows the order of processing when one flow references another:

When the main flow is triggered, the Mule event travels through and executes the flow until the event reaches the Flow Reference. The event then travels through and executes the referenced flow from beginning to end, and then returns to the main flow.

This process enables you to treat the entire referenced flow like a single component in your current flow.

Mule Ref Doc :

Correct answer is

• payload
• quantity var
• color query param
