Question 1

Choose the correct answer.

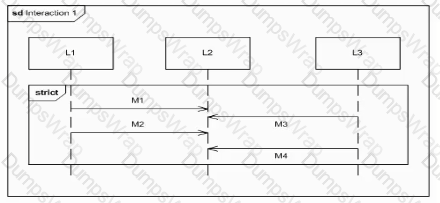

Given the following diagram:

as

Which message ordering is valid?

Options:

A.

M1, M2. M3, M4

B.

M3. M1. M2, M4

C.

M3, M4. M1, M2

D.

None of these orderings is valid.

Question 2

Choose the correct answer

What is the key distinction between a profile and a meta model?

Options:

A.

A metamodel is used to define the stereotypes and the properties of a profile.

B.

A metamodel Is the result of applying a profile to a user model to define new domain concepts.

C.

A profile is a mechanism for extending existing concepts defined In a metamodel.

D.

A profile is a mechanism for defining stereotypes, which is not related to metamodels in any way.

Question 3

Choose the correct answer.

A system engineer has created a SysML block structure for his system-of-interest. Two of the blocks (M and E) represent system-level abstractions of components that will be designed by a mechanical engineer and an electrical engineer m their respective computer-aided design (CAD) tools.

Given that the CAD models are wrapped as blocks B_mcad and B_ecad, what type of diagram should the system engineer use to quantitatively relate the properties of B_mcad and B_ecad to their system level abstractions M and E respectively?

Options:

A.

an activity diagram

B.

a parametric diagram

C.

an internal block diagram

D.

a block definition diagram

Question 4

Choose the correct answer.

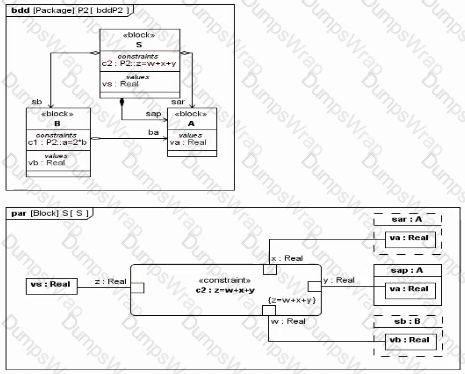

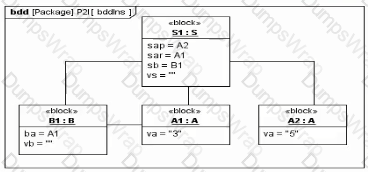

Given the following block structure model:

as

What is the value of S1.vs when the parametric models are executed for the following instance?

as

Options:

A.

11

B.

14

C.

13

D.

There is no value - the instance model is invalid

Question 5

Choose the correct answer.

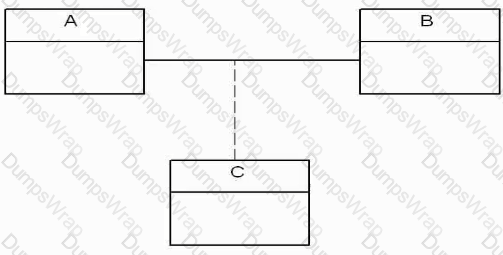

Given the following diagram:

as

What is element C?

Options:

A.

a tag value

B.

an association block

C.

a connector property

D.

a connector illustration

E.

a relation information element

Question 6

Choose the correct answer

Different Block kinds are modeled using stereotypes such as «system», «subsystem» or «software»

Where are these stereotypes typically defined?

Options:

A.

The modeling tool provides the stereotypes

B.

The stereotypes are part of the SysML standard

C.

Each modeler who writes requirements can define stereotypes

D.

A profile that maps modeling methodology concepts to the model defines the stereotypes

Question 7

Choose the correct answer.

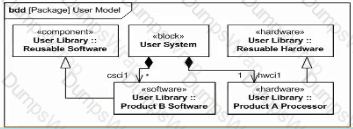

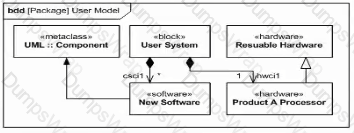

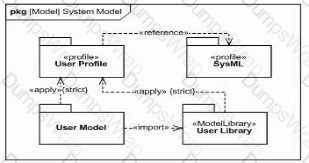

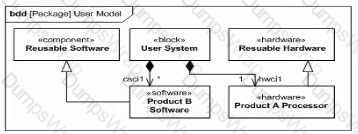

Given the following package diagram depicting profile and model library relationships to a user model.

as

The User Profile extends SysML with two new stereotypes of Block Hardware and Software.

Which bdd fragment is valid, yet does not contain unnecessary or redundant information?

A)

as

B)

as

C)

as

D)

as

E)

as

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

E.

Option E

Question 8

Choose the correct answer

How would a modeler refine a use case textual narrative?

Options:

A.

provide a detailed definition of the use case using a behavioral diagram

B.

specify all of the triggers preconditions, and post conditions for the use case

C.

specify all extension points for extend use cases and specify all secondary actors

D.

provide a complete textual description of the main flow and alternative/exceptional flows for the use case

Question 9

Choose the correct answer

Which diagram fragment validly depicts adding properties to a stereotype?

A)

as

B)

as

C)

as

D)

as

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Question 10

Choose the correct answer

Which SysML construct is used to represent a connection point to an interaction when It is being used by another interaction?

Options:

A.

a formal gate

B.

a usage point

C.

a message port

D.

an interaction parameter

Question 11

Choose the correct answer.

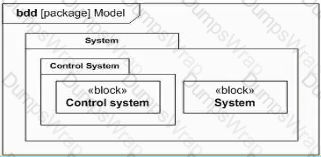

Which diagram shows that the control system block is in the namespace of the system block?

A)

as

B)

as

C)

as

D)

as

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Question 12

Choose the correct answer.

Given the following diagram:

as

What do the keywords in the braces represent?

Options:

A.

suggestions for improving the efficiency of the design

B.

constraints specifying that the direction of the association is ordered and that an instance of A uniquely consists of instances of B

C.

constraints specifying that the set representing the Instances of P is ordered In the context of the association, and all instances are unique

D.

constraints specifying that all instances of B must be ordered in a unique sequence when they are associated with any instance of block A

Question 13

Choose the correct answer

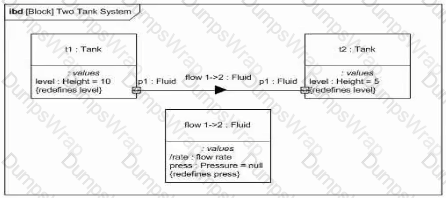

A system consists of two identical tanks each containing a different level of fluid. The tanks are connected together by a port at the bottom of each tank. This system is modeled m the following diagram:

as

Which statement is true?

Options:

A.

The block Fluid, which types item property flow 1 ->2. has a value property press : Pressure with a default value of null

B.

The value property /rate : flow rate is a derived property, which accommodates calculating its value based on oilier properties

C.

Parts t1 and t2 each use part instances to redefine the value of property level : Height

D.

The value of /rate for item property flow 1->2 is positive for flow from t1 to t2. and negative for How in the other direction

E.

Both port p1 on pan t1. and port p1 on t2. must have values defined for value properties /rate and press

Question 14

Choose the correct answer.

What are the possible values of the enumeration ControlValue?

Options:

A.

suspend and resume

B.

enable and disable

C.

suspend, resume, enable and disable

D.

It has no values, but is intended for a modeler to extend with their own control values.

Question 15

Choose the correct answer

How ate use cases and requirements used for requirements analysis in SysML?

Options:

A.

in a SysML model, either use cases or requirements are modeled, but never both

B.

Use cases are a relic from UML and are. strictly speaking, useless in a SysML model

C.

Use cases are good for capturing functional requirements. For nonfunctional requirements, the requirement element is needed

D.

Use cases are the basis for all requirements in a model. Requirements refine the use cases by adding additional information through then properties.

Question 16

Choose the correct answer.

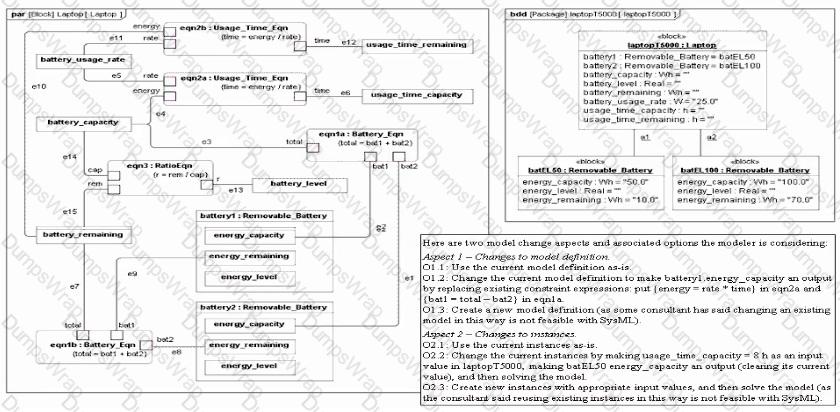

The essentials of a laptop battery capacity model are shown In the following diagrams (where the value types W, h and Wh stand for watl, hour, and watt-hour respectively). Assume that the instance values shown are inputs, and that nothing relevant has been omitted.

as

The designer needs to determine what the energy_capacity of battery 1 should be to enable a laptop usage_time_capacity time of 8 hours. Which combination of the options listed in the text box in the figure will achieve this Intent with minimal changes (including minimal new aspects)?

Options:

A.

O1.1 and O2 1

B.

O1.1 and O2 2

C.

O1 1 and O2 3

D.

O1.2 and O2.1

E.

O1 7 and O2.2

F.

O1.2 and O2.3

G.

O1 3 and O2 3

Question 17

Choose the correct answer

In a state machine which behavior can be interrupted by a transition which leaves the current state?

Options:

A.

a do behavior

B.

an entry behavior

C.

an exit behavior

D.

the effect of an internal transition

Question 18

Choose the correct answer

What is a 'control operator’?

Options:

A.

it is an activity that can output control tokens via a parameter node.

B.

It Is the general term for any element of an activity that can handle control tokens.

C.

It Is a special kind of activity node that can be used to control the flow of tokens into an activity.

D.

It Is an activity node that allows a modeler to specify the use of mathematical operators such as plus minus, multiply, or divide.

Question 19

Choose the correct answer.

What is the best way to specify the behavior of a functional requirement?

Options:

A.

Model an activity that refines the functional requirement.

B.

Model a state machine that refines the functional requirement.

C.

The project methodology will indicate which way is compatible with its process.

D.

The requirement text must be a clear and concise specification of the functionality.

Question 20

Choose the correct answer.

There is a requirement to count and prioritize widgets. While it is active, the action that implements this behavior will repeatedly accept a widget and immediately output a prioritized widget. A special "final" widget will cause the action to terminate and output the total count of widgets It processed

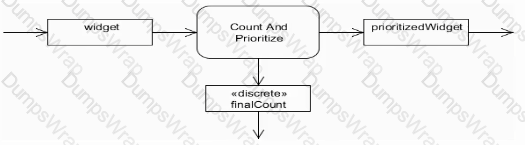

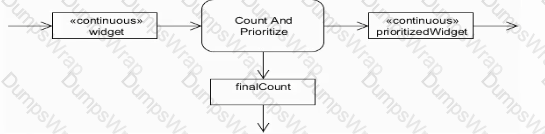

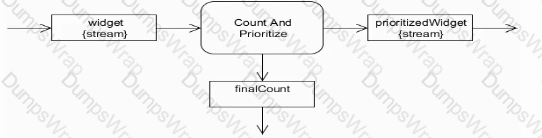

Which activity diagram fragment shows this action along with its inputs and outputs?

A)

as

B)

as

C)

as

D)

as

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Question 21

Choose the correct answer.

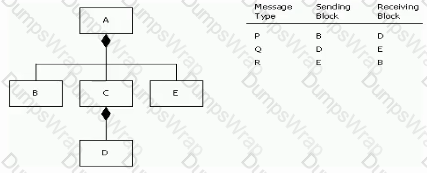

Given the following bdd fragment and table showing messages sent between blocks:

as

Block C Is encapsulated; none of the other blocks are.

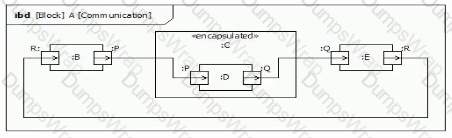

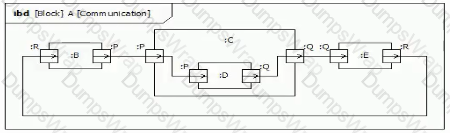

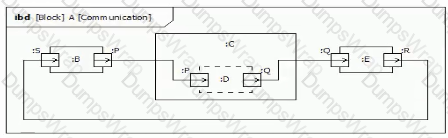

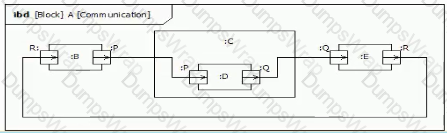

Which Ibd for block A has the correct assignment of flow ports and connectors? If two or more options are correct, select the one with the fewest ports.

A)

as

B)

as

C)

as

D)

as

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Question 22

Choose the correct answer.

Given the following diagram fragment:

as

What does the multiplicity at the actor end mean?

Options:

A.

At most two Initiator actor instances can perform the use case

B.

Two Initiator actor instances are required to trigger the use case

C.

Two Initiator actor instances are required to participate in the use case.

D.

Multiplicities carry no meaning on use case diagrams

Question 23

Choose the correct answer.

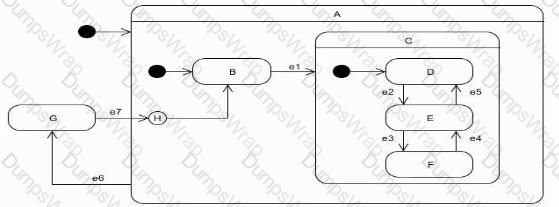

Given the following state machine, and assuming that it starts from initialization:

as

Which option is the shortest sequence of events that will cause the machine to be in state E?

Options:

A.

e1, e2, e6, e7

B.

e1, e2, e6, e7, e1

C.

e1, e2, e6, e7, e2

D.

e1, e2, e3, e6, e7, e2

E.

e1, e2, e3, e3, e6, e7, e1, e2

Question 24

Choose the correct answer.

Given the following diagram:

as

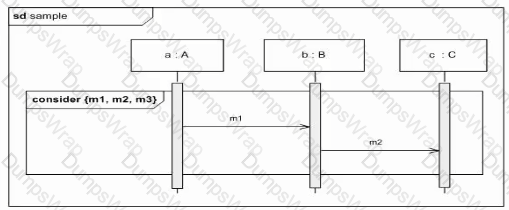

What Is the meaning of the consider fragment?

Options:

A.

It is a constraint that prevents adding a nested ignore fragment for any one of ml. m2 or m3.

B.

It ignores all messages other than ml m2 and m3 in the scenario being described by the interaction

C.

The meaning is undefined because the diagram is ill-formed in the absence of n>3. which must be considered.

D.

It allows the invocation of the operations corresponding to messages m 1. m? and m3 only when they appear in that order

Question 25

Choose the correct answer.

Given the following bdd:

as

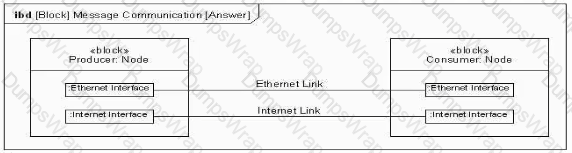

Which Ibd corresponds?

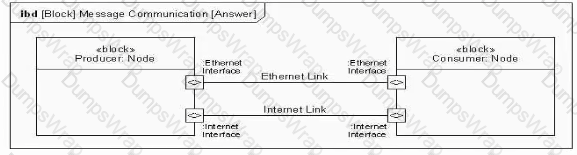

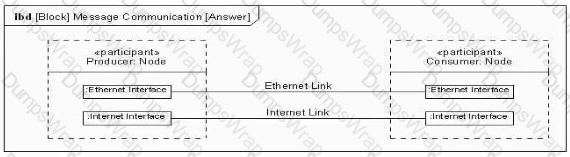

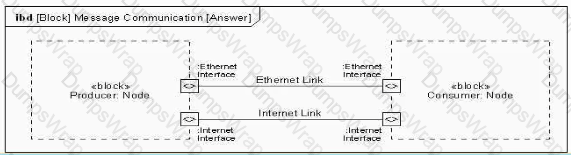

A)

as

B)

as

C)

as

D)

as

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Question 26

Choose the correct answer

What is an effective and efficient approach to project modeling standards and conventions?

Options:

A.

Every project should create its own domain specific profile to describe modeling standards and conventions

B.

Organizations should create specific modeling standards and conventions to ensure modeling consistency across projects

C.

The SysML specification alone is sufficient to describe modeling standards and conventions when the modeling tool has a proper implementation of SysML

D.

The SysML specification and the modeling tool documentation are sufficient to describe modeling standards and conventions

Question 27

Choose the correct answer.

Block 1 has a value property 'a' part 1. typed by Block! sends the message Ml If a»0; otherwise it sends message M2.

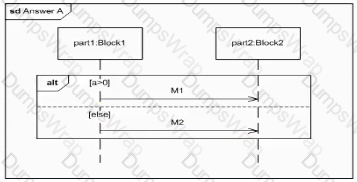

Which diagram depicts this scenario?

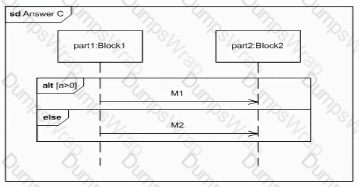

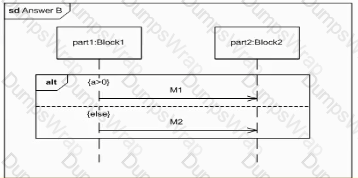

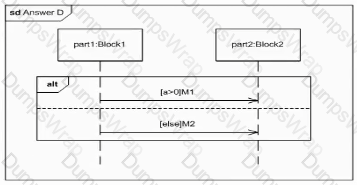

A)

as

B)

as

C)

as

D)

as

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D
