Adding further clarity and quoting same Splunk reference URL from @giubal "

" To keep configuration settings consistent across peer nodes, configuration files are managed from the cluster master, which pushes the files to the slave-app directories on the peer nodes. Files in the slave-app directories have the highest precedence in a cluster peer ' s configuration. Here is the expanded precedence order for cluster peers:

1.Slave-app local directories -- highest priority

2. System local directory

3. App local directories

4. Slave-app default directories

5. App default directories

6. System default directory --lowest priority

Once further conditions are met (for example, the index reaches some maximum number of warm buckets), the indexer begins to roll the warm buckets to cold, based on their age. It always selects the oldest warm bucket to roll to cold. Buckets continue to roll to cold as they age in this manner. Cold buckets reside in a different location from hot and warm buckets. You can configure the location so that cold buckets reside on cheaper storage.

A Splunk deployment server is a system that distributes apps, configurations, and other assets to groups of Splunk Enterprise instances. You can use it to distribute updates to most types of Splunk Enterprise components: forwarders, non-clustered indexers, and search heads2.

A Splunk deployment server is available on every full Splunk Enterprise instance. To use it, you must activate it by placing at least one app into %SPLUNK_HOME%\etc\deployment-apps on the host you want to act as deployment server3.

A Splunk deployment server maintains the list of server classes and uses those server classes to determine what content to distribute to each client. A server class is a group of deployment clients that share one or more defined characteristics1.

A Splunk deployment client is a Splunk instance remotely configured by a deployment server. Deployment clients can be universal forwarders, heavy forwarders, indexers, or search heads. Each deployment client belongs to one or more server classes1.

A Splunk deployment app is a set of content (including configuration files) maintained on the deployment server and deployed as a unit to clients of a server class. A deployment app can be an existing Splunk Enterprise app or one developed solely to group some content for deployment purposes1.

Therefore, option C is correct, and the other options are incorrect.

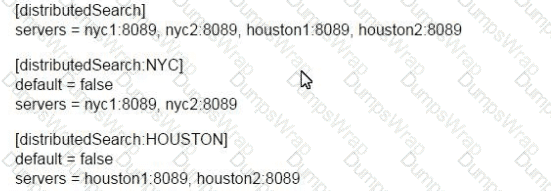

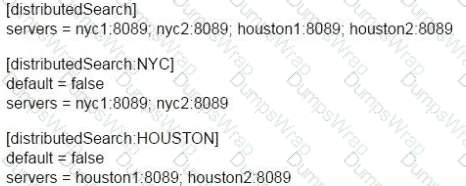

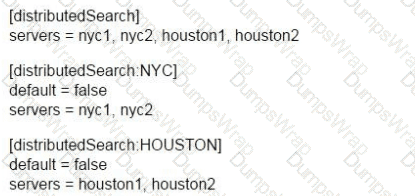

" To activate distributed search, you add search peers, or indexers, to a Splunk Enterprise instance that you desingate as a search head. You do this by specifying each search peer manually. "

Parallel reduce search processing If you struggle with extremely large high-cardinality searches, you might be able to apply parallel reduce processing to them to help them complete faster. You must have a distributed search environment to use parallel reduce search processing.

- Section: About channels and sending data

Sending events to HEC with indexer acknowledgment active is similar to sending them with the setting off. There is one crucial difference: when you have indexer acknowledgment turned on, you must specify a channel when you send events. The concept of a channel was introduced in HEC primarily to prevent a fast client from impeding the performance of a slow client. When you assign one channel per client, because channels are treated equally on Splunk Enterprise, one client can ' t affect another. You must include a matching channel identifier both when sending data to HEC in an HTTP request and when requesting acknowledgment that events contained in the request have been indexed. If you don ' t, you will receive the error message, " Data channel is missing. " Each request that includes a token for which indexer acknowledgment has been enabled must include a channel identifier, as shown in the following example cURL statement, where < data > represents the event data portion of the request

" The forwarder/indexer relationship can be considered platform agnostic (within the sphere of supported platforms) because they exchange their data handshake (and the data, if you wish) over TCP.

In Splunk Enterprise , when integrating with an LDAP (Lightweight Directory Access Protocol) directory for authentication, user access is governed by the mapping between LDAP groups and Splunk roles . A user authenticated via LDAP must belong to at least one LDAP group that is mapped to a Splunk role. Without this mapping, the user can authenticate successfully against LDAP but will not be granted any role privileges inside Splunk, and therefore cannot log in to the Splunk web interface.

Splunk documentation explicitly states:

“When you integrate Splunk Enterprise with LDAP, a user must be assigned at least one Splunk role through an LDAP group mapping. If the user does not belong to a mapped group, they cannot log into Splunk.”

This ensures that user permissions are inherited from LDAP-to-role mappings and provides centralized management of authentication and authorization.

Reference (Splunk Documentation):

Splunk® Enterprise Admin Manual → Securing Splunk Enterprise → Authenticate users with LDAP

authentication.conf.spec and example → LDAP configuration and role mapping

Splunk Docs: “Configure LDAP authentication”

The acceptFrom setting controls which remote hosts are allowed or denied for a network input. It supports IP addresses and CIDR notation. A deny rule is represented with an exclamation mark !.

To allow all hosts in the 10.0.0.0/8 network but deny hosts in the 10.1.0.0/16 network, the configuration must include both:

10.0.0.0/8 to allow the broader network

!10.1.0.0/16 to deny the excluded subnet

The best matching option is:

acceptFrom = !10.1.0.0/16, 10.0.0.0/8

Option A is incorrect because it only accepts the 10.1.0.0/16 network, which is the network that should be excluded.

Option B is incorrect because it accepts all 10.x.x.x hosts and does not exclude 10.1.x.x.

Option C is incorrect because it repeats the acceptFrom setting on separate lines. In Splunk configuration files, repeated attributes in the same stanza can override earlier values, so this is not the correct way to express the allow/deny list.

Option D is correct because it defines the exclusion and the allowed network in one acceptFrom list.

According to the Splunk documentation1, a heavy forwarder is a Splunk Enterprise instance that can parse and filter data before forwarding it to an indexer. A heavy forwarder can perform line breaking,which is the process of splitting incoming data into individual events based on a set of rules2. A heavy forwarder can also apply other transformations to the data, such as field extractions, event type matching, or masking sensitive data3.

The HTTP Event Collector (HEC) supports indexer acknowledgment to confirm event delivery. Each acknowledgment is associated with a uniqueGUID(Globally Unique Identifier).

GUID ensures events are not re-indexed in the case of retries.

Incorrect Options:

B, C, D:These are not valid channel values in HEC acknowledgments.

The possible causes of the load balancing issue on the Universal Forwarder are A and C. The receiving port and the DNS record are both factors that affect the ability of the Universal Forwarder to distribute data across multiple receivers. If the receiving port is not properly set up to listen on the right port, or if the DNS record used is not set up with a valid list of IP addresses, the Universal Forwarder might fail to connect to some or all of the receivers, resulting in poor load balancing.

First line says it all: " The deployment server distributes deployment apps to clients. "

" The HTTP Event Collector (HEC) lets you send data and application events to a Splunk deployment over the HTTP and Secure HTTP (HTTPS) protocols. HEC uses a token-based authentication model. You can generate a token and then configure a logging library or HTTP client with the token to send data to HEC in a specific format. This process eliminates the need for a Splunk forwarder when you send application events. "

 Indexers, search head, deployment server, license master, universal forwarder. This is the combination of Splunk component instances that are needed to handle the volume of data from collecting log files from 50 Linux servers and 200 Windows servers, following the best practices. The roles and functions of these components are:

Indexers: These are the Splunk instances that index the data and make it searchable. They also perform some data processing, such as timestamp extraction, line breaking, and field extraction. Multiple indexers can be clustered together to provide high availability, data replication, and load balancing.

Search head: This is the Splunk instance that coordinates the search across the indexers and merges the results from them. It also provides the user interface for searching, reporting, and dashboarding. A search head can also be clustered with other search heads to provide high availability, scalability, and load balancing.

Deployment server: This is the Splunk instance that manages the configuration and app deployment for the universal forwarders. It allows the administrator to centrally control the inputs.conf, outputs.conf, and other configuration files for the forwarders, as well as distribute apps and updates to them.

License master: This is the Splunk instance that manages the licensing for the entire Splunk deployment. It tracks the license usage of all the Splunk instances and enforces the license limits and violations. It also allows the administrator to add, remove, or change licenses.

Universal forwarder: These are the lightweight Splunk instances that collect data from various sources and forward it to the indexers or other forwarders. They do not index or parse the data, but only perform minimal processing, such as compression and encryption. They are installed on the Linux and Windows servers that generate the log files.

Section titled, Configuration file directories, states " A detailed list of settings for each configuration file is provided in the .spec file names for that configuration file. You can find the latest version of the .spec and .example files in the $SPLUNK_HOME/etc system/README folder of your Splunk Enterprise installation... "

Splunk checks role-to-group mapping only during user login for external authentication (e.g., LDAP, SAML). Users already logged in will continue using their previously assigned roles until they log out and log back in.

The changes to role mapping do not disrupt ongoing sessions.

Incorrect Options:

B:Search is not disabled upon role updates.

C:This is incorrect since existing users are also updated upon the next login.

D:Role updates do not terminate ongoing sessions.

Splunk REST API is a valid method to create a Splunk user. The Splunk REST API allows administrators to create, edit, and delete users programmatically using HTTP requests. The other options are not valid methods to create a Splunk user. Creating a support ticket does not create a user, but requests assistance from Splunk support. Creating a user on the host operating system does not create a Splunk user, but a system user. Adding the username to users.conf does not create a user, but modifies the configuration file that stores user information. References = Configure users with the CLI, Configure users and roles

SAML is an open standard for exchanging authentication and authorization data between parties, especially between an identity provider and a service provider1. SAML supports multi-factor authentication by allowing the identity provider to require the user to present two or more factors of evidence to prove their identity2. For example, the user may need to enter a password and a one-time code sent to their phone, or scan their fingerprint and face.

Using the Splunk reference

" search peer is a splunk platform instance that responds to search requests from a search head. The term " search peer " is usally synonymous with the indexer role in a distributed search topology. However, other instance types also have access to indexed data, particularly internal diagnostic data, and thus function as search peers when they respond to search requests for that data. "

 [monitor::/opt/log/crashlog/Jan27crash.txt]. This stanza means that Splunk is monitoring a single local file named Jan27crash.txt in the /opt/log/crashlog/ directory1. The monitor input type is used to monitor files and directories for changes and index any new data that is added2.

The Splunk indexing process consists of three main phases: Input, Parsing, and Indexing. Understanding these phases is crucial for configuring data inputs and managing data flow within Splunk.

Input Phase: Splunk receives data from various sources, such as files, network ports, or scripted inputs.

Parsing Phase: Splunk breaks the data into individual events, applies transformations, and extracts timestamps.

Indexing Phase: Splunk writes the parsed events to disk and creates indexes for efficient searching.

From the official Splunk documentation:

" The data pipeline consists of three main phases: input, parsing, and indexing. "

— How the Splunk platform indexes data - Splunk Documentation

Therefore, the correct order of the indexing process is: Input phase → Parsing phase → Indexing phase.

Splunk uses alayered configuration modelwhere settings are loaded in a specific order. This order determines which configuration takes precedence when multiple settings conflict. Atindex time(the point when data is parsed and indexed), the configuration precedence is clearly defined in the official documentation.

FromSplunk Docs(props.conf precedence):

Configuration file resolution order (highest to lowest precedence):

$SPLUNK_HOME/etc/users/ < username > / < appname > /local

$SPLUNK_HOME/etc/apps/ < appname > /local

$SPLUNK_HOME/etc/apps/ < appname > /default

$SPLUNK_HOME/etc/system/local

$SPLUNK_HOME/etc/system/default

However, forindex-time configurations, a slight difference applies:

system/local and users/local areoften treated specially, butin practice and according to Splunk Docs, thesystem/localconfigs override apps/default, and so on.

InOption C, the correct precedence fromhighest to lowestis:

/etc/users/local (Highest)

/etc/system/default

/etc/apps/aaa/local

/etc/apps/zzz/default

/etc/system/local (Lowest of these listed)

Though system/local typically has high precedence,when users/local is involved, that is the ultimate override. Splunk Docs confirms this in:

Configuration file precedence

Configuration layering reference

Therefore, Option C reflects the correct Splunk configuration file precedence order at index time.

The indexing pipeline and the parsing pipeline are the two pipelines that are responsible for transforming the raw data into events and preparing them for indexing. The indexing pipeline applies index-time settings, such as timestamp extraction, line breaking, host extraction, and source type recognition. The parsing pipeline applies parsing settings, such as field extraction, event segmentation, and event annotation.

When using a directory monitor input, specific source types can be selectively overridden using the props.conf file. According to the Splunk documentation1, “You can specify a source type for data based on its input and source. Specify source type for an input. You can assign the source type for data coming from a specific input, such as /var/log/. If you use Splunk Cloud Platform, use Splunk Web to define source types. If you use Splunk Enterprise, define source types in Splunk Web or by editing the inputs.conf configuration file.” However, this method is not very granular and assigns the same source type to all data from an input. To override the source type on a per-event basis, you need to use the props.conf file and the transforms.conf file2. The props.conf file contains settings that determine how the Splunk platform processes incoming data, such as how to segment events, extract fields, and assign source types2. The transforms.conf file contains settings that modify or filter event dataduring indexing or search time2. You can use these files to create rules that match specific patterns in the event data and assign different source types accordingly2. For example, you can create a rule that assigns a source type of apache_error to any event that contains the word “error” in the first line2.

The fastest way to add data to your Splunk Cloud instance or Splunk Enterprise deployment is to use Splunk Web. After you access the Add Data page, choose one of three options for getting data into your Splunk platform deployment with Splunk Web: (1) Upload, (2) Monitor, (3) Forward The Upload option lets you upload a file or archive of files for indexing. When you choose Upload option, Splunk Web opens the upload process page. Monitor. For Splunk Enterprise installations, the Monitor option lets you monitor one or more files, directories, network streams, scripts, Event Logs (on Windows hosts only), performance metrics, or any other type of machine data that the Splunk Enterprise instance has access to.

To verify the integrity of a local bucket. The command ./splunk check-integrity -bucketPath [bucket path] [-verbose]  is used to verify the integrity of a local bucket by comparing the hashes stored in the l1Hashes and l2Hash files with the actual data in the bucket1. This command can help detect any tampering or corruption of the data.

The answer to your question is C. services/data/collector. This is the endpoint URI used to collect data in a customer managed Splunk Enterprise environment.According to the Splunk documentation1, “The HTTP Event Collector REST API endpoint is /services/data/collector.You can use this endpoint to send events to HTTP Event Collector on a Splunk Enterprise or Splunk Cloud Platform deployment.” You can also use this endpoint to send events to a specific token or index1. For example, you can use the following curl command to send an event with the token 578254cc-05f5-46b5-957b-910d1400341a and the index main:

curl -k -H ' Authorization: Splunk 578254cc-05f5-46b5-957b-910d1400341a ' -d ' { " index " : " main " , " event " : " Hello, world! " } '

" The search head replicates the knowledge bundle periodically in the background or when initiating a search. " " As part of the distributed search process, the search head replicates and distributes its knowledge objects to its search peers, or indexers. Knowledge objects include saved searches, event types, and other entities used in searching accorss indexes. The search head needs to distribute this material to its search peers so that they can properly execute queries on its behalf. "

" Specify how far (how many characters) into an event Splunk software should look for a timestamp. " since TIME_PREFIX = ^ and timestamp is from 0-29 position, so D=30 will pick up the WHOLE timestamp correctly.

--reset Reset the fishbucket for the given key or file in the btree. Resetting the checkpoint for an active monitor input reindexes data, resulting in increased license

# Compression

#

# This example sends compressed events to the remote indexer.

# NOTE: Compression can be enabled TCP or SSL outputs only.

# The receiver input port should also have compression enabled.

[tcpout]

server = splunkServer.example.com:4433

compressed = true

In Splunk Enterprise , when knowledge bundles (which include lookup files, configurations, and other knowledge objects) are replicated between search heads and indexers, administrators can control the maximum size of lookup files that are eligible for replication.

The correct parameter to use is excludeReplicatedLookupSize , defined in distsearch.conf . This parameter specifies a maximum file size (in megabytes) beyond which lookup files are excluded from bundle replication . By setting this to 500, any lookup file larger than 500 MB will not be replicated to search peers.

This is especially important for performance optimization and preventing unnecessary network load during search head to indexer communication.

Example configuration (distsearch.conf):

[replicationSettings]

excludeReplicatedLookupSize = 500

Reference (Splunk Documentation):

distsearch.conf.spec and example → excludeReplicatedLookupSize

Splunk® Enterprise Distributed Search Manual → “Control knowledge bundle replication between search heads and indexers”

Splunk Admin Manual → “Prevent large lookup files from being replicated”

because transforms.conf is the right configuration file to state the regex

The correct command is:

splunk btool check

The btool check command is used to check Splunk configuration files for syntax errors and malformed stanzas. If Splunk reports a message such as “typo in stanza,” this usually means there is an error in a .conf file, such as an invalid stanza header, misspelled setting, or malformed configuration entry.

btool diag, btool repair, and btool validate are not the correct commands for this purpose.

You can have a role inherit certain properties from one or more existing

Hot/warm/cold/thawed bucket types are searchable. Frozen isn ' t searchable because its either deleted at that state or archived.

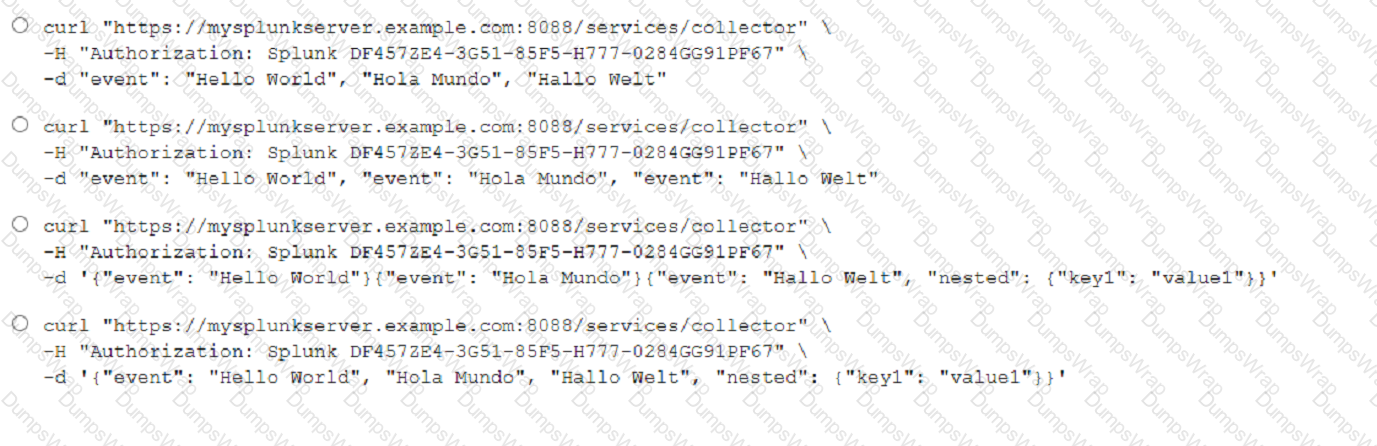

curl \ -H “Authorization: Splunk DF4S7ZE4-3GS1-8SFS-E777-0284GG91PF67” \ -d ‘{“event”: “Hello World”}, {“event”: “Hola Mundo”}, {“event”: “Hallo Welt”}’. This is the correct curl command to send multiple events through HTTP Event Collector (HEC), which is a token-based API that allows you to send data to Splunk Enterprise from any application that can make an HTTP request. The command has the following components:

The URL of the HEC endpoint, which consists of the protocol (https), the hostname or IP address of the Splunk server (mysplunkserver.example.com), the port number (8088), and the service name (services/collector).

The header that contains the authorization token, which is a unique identifier that grants access to the HEC endpoint. The token is prefixed with Splunk and enclosed in quotation marks. The token value (DF4S7ZE4-3GS1-8SFS-E777-0284GG91PF67) is an example and should be replaced with your own token value.

The data payload that contains the events to be sent, which are JSON objects enclosed in curly braces and separated by commas. Each event object has a mandatory field called event, which contains the raw data to be indexed. The event value can be a string, a number, a boolean, an array, or another JSON object. In this case, the event values are strings that say hello in different languages.

The correct answer is B. The network input in Splunk might be found in the $SPLUNK_HOME/etc/apps/$appName/local/inputs.conf file.

A network input is a type of input that monitors data from TCP or UDP ports. To configure a network input, you need to specify the port number, the connection host, the source, and the sourcetype in the inputs.conf file. You can also set other optional settings, such as index, queue, and host_regex1.

The inputs.conf file is a configuration file that contains the settings for different types of inputs, such as files, directories, scripts, network ports, and Windows event logs. The inputs.conf file can be located in various directories, depending on the scope and priority of the settings. The most common locations are:

$SPLUNK_HOME/etc/system/default: This directory contains the default settings for all inputs. You should not modify or copy the files in this directory2.

$SPLUNK_HOME/etc/system/local: This directory contains the custom settings for all inputs that apply to the entire Splunk instance. The settings in this directory override the default settings2.

$SPLUNK_HOME/etc/apps/$appName/default: This directory contains the default settings for all inputs that are specific to an app. You should not modify or copy the files in this directory2.

$SPLUNK_HOME/etc/apps/$appName/local: This directory contains the custom settings for all inputs that are specific to an app. The settings in this directory override the default and system settings2.

Therefore, the best practice is to create or edit the inputs.conf file in the $SPLUNK_HOME/etc/apps/$appName/local directory, where $appName is the name of the app that you want to configure the network input for. This way, you can avoid modifying the default files and ensure that your settings are applied to the specific app.

The other options are incorrect because:

A. There is no network directory under the apps directory. The network input settings should be in the inputs.conf file, not in a separate directory.

C. There is no udp.conf file in Splunk. The network input settings should be in the inputs.conf file, not in a separate file. The system directory is not the recommended location for custom settings, as it affects the entire Splunk instance.

D. The var/lib/splunk directory is where Splunk stores the indexed data, not the input settings. The homePath setting is used to specify the location of the index data, not the input data. The inputName is not a valid variable for inputs.conf.

Search-time field extractions are the process of extracting fields from events after they are indexed. Search-time field extractions are specified on the search head, which is the Splunk component that handles searching and reporting. Search-time field extractions are configured in props.conf and transforms.conf files, which are located in the etc/system/local directory on the search head. Therefore, option D is the correct answer. References: Splunk Enterprise Certified Admin | Splunk, [About fields - Splunk Documentation]

The correct answer is C and D. A heavy forwarder and an indexer are the Splunk components that can break a stream of syslog inputs into individual events.

A universal forwarder is a lightweight agent that can forward data to a Splunk deployment, but it does not perform any parsing or indexing on the data. A search head is a Splunk component that handles search requests and distributes them to indexers, but it does not process incoming data.

A heavy forwarder is a Splunk component that can perform parsing, filtering, routing, and aggregation on the data before forwarding it to indexers or other destinations. A heavy forwarder can break a stream of syslog inputs into individual events based on the line breaker and should linemerge settings in the inputs.conf file1.

An indexer is a Splunk component that stores and indexes data, making it searchable. An indexer can also break a stream of syslog inputs into individual events based on the props.conf file settings, such as TIME_FORMAT, MAX_TIMESTAMP_LOOKAHEAD, and line_breaker2.

A Splunk component is a software process that performs a specific function in a Splunk deployment, such as data collection, data processing, data storage, data search, or data visualization.

Syslog is a standard protocol for logging messages from network devices, such as routers, switches, firewalls, or servers. Syslog messages are typically sent over UDP or TCP to a central syslog server or a Splunk instance.

Breaking a stream of syslog inputs into individual events means separating the data into discrete records that can be indexed and searched by Splunk. Each event should have a timestamp, a host, a source, and a sourcetype, which are the default fields that Splunk assigns to the data.

When configuring multiple LDAP strategies in Splunk, the order in which they are listed in the authentication.conf file determines the sequence in which Splunk searches them during authentication.

From the official Splunk documentation:

" To configure multiple LDAP strategies, set the authSettings setting to a comma-separated list of all strategies, in the order in which you want to query the strategies. "

— Configure LDAP using configuration files - Splunk Documentation

Therefore, Splunk will search each LDAP strategy in the order specified in the authSettings parameter of the authentication.conf file.
