According to the ArchiMate® 3.2 Specification1, a principle defines a general property that applies to any system in a certain context. A principle is a normative property of all systems in a given context that expresses a fundamental value or property1. Therefore, the correct answer is A. A principle.

According to the Technology Layer metamodel, a communication network is a physical communication medium between two or more devices or other networks. A communication network realizes a path, which is a relation between two or more nodes through which they can exchange information.

References: Technology Layer in ArchiMate Part 1 - Metamodel1; ArchiMate® 3.2 Specification, Chapter 10: Technology Layer2.

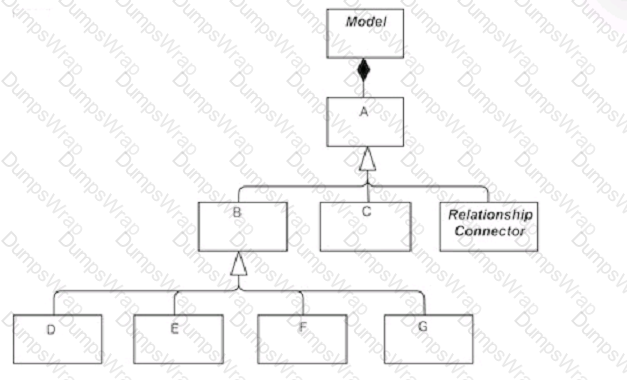

Comprehensive and Detailed in Depth Explanation:ARelationship Connectoris used in ArchiMate toconnect multiple relationshipsof thesame type. This allows complex architectures to besimplified by visually combining multiple relationships into a single point of reference.

TheArchiMate 3.2 Specificationdefines Relationship Connectors aselements that allow two or more relationships to be connected, ensuring model clarity and simplicity.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed in Depth Explanation:AnApplication Interfacein ArchiMate represents apoint of accesswhere anApplication Serviceisexposed to users or other applications.

Application Interfaces define howusers or other software components interactwith anApplication Service. This is clearly defined in theArchiMate 3.2 Specification, which states that anApplication Interface provides access to an Application Service.

References:

Archi User Guide​

ArchiMate 3.2 Specification

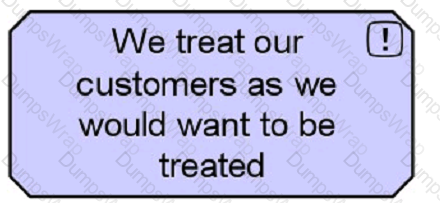

According to the ArchiMate 3.2 Specification1, a driver represents an external or internal condition that motivates an organization to define its goals and implement the changes necessary to achieve them. Drivers that are associated with a stakeholder are often called “concerns” of that stakeholder. A stakeholder represents the role of an individual, team, or organization (or classes thereof) that represents their interests in the outcome of the architecture. A motivation element is an element that represents the reasons for designing and implementing an architecture, such as stakeholders, drivers, goals, principles, requirements, or value. A motivation element is denoted by a hexagonal shape.

The diagram below shows a motivation element (driver) named Market Share that influences a stakeholder named CMO. The influence relationship is denoted by a dashed line with an open arrowhead.

The influence relationship means that the driver affects the stakeholder’s interests or concerns. Therefore, the best interpretation of the diagram is that the CMO is motivated by the driver Market Share.

Comprehensive and Detailed In-Depth Explanation:

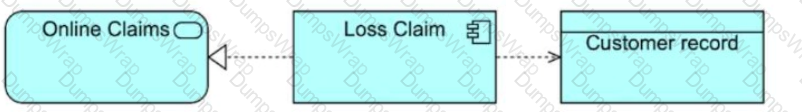

ThisArchiMate Technology Layer diagramrepresents asoftware application architecturewhere different application components interact with data objects.

"Online Claims" is an application component that interacts with "Loss Claim".

"Loss Claim" is another application component, likely acting as a back-end systemthat processes claims.

"Customer Record" is a data object that "Loss Claim" accessesto retrieve or store customer-related information.

TheOnline Claims system does not directly access the Customer Record, but insteadrelies on the Loss Claim system to fetch the required data.

Analysis of Answer Choices:

✅A. The Loss Claim application serves the Online Claims department and accesses a data object called Customer Record.→❌Incorrect

There is no indication that "Online Claims" represents a department; it is an application component.

Thediagram focuses on software components, not organizational units.

✅B. The Online Claims application uses a back-end module called Loss Claim to access a data object called Customer Record.→✅Correct Answer

The Online Claims system depends on the Loss Claim system, which in turn accesses the Customer Record.

Thismatches the typical structure of a front-end application relying on a back-end module.

ArchiMate 3.2 Specification, Section 7.3, states thatapplication components can interact hierarchically, where a front-end application calls a back-end service to process data.

✅C. The Loss Claim application realizes the Online Claims service and accesses a Customer Record data object.→❌Incorrect

"Realization" means the Loss Claim application would be implementing a service provided by Online Claims.

In the diagram,Online Claims and Loss Claim are separate application components, andLoss Claim is not a realization of an Online Claims service.

✅D. The Customer Record application uses Loss Claim middleware to present the Online Claims user interface.→❌Incorrect

The Customer Record is a data object, not an application.

Loss Claim is not middleware; it is a back-end application component.

Thediagram does not indicate that Loss Claim is responsible for presenting a user interface.

Final Answer:✅B. The Online Claims application uses a back-end module called Loss Claim to access a data object called Customer Record.

References:

ArchiMate 3.2 Specification: Sections 7.3 (Application Components), 7.5 (Data Objects), and 7.6 (Application Services).

Archi User Guide: Modeling front-end and back-end application interactions.

Comprehensive and Detailed in Depth Explanation:TheGroupingelement is acomposite elementin ArchiMate. Itcombines multiple elements into a single logical unitto simplify the representation of complex architectures.

UnlikeAggregation, which represents a relationship between a whole and its parts,Groupingallows the modeler to create arbitrary clusters of elements, regardless of their layer or type.

TheArchiMate 3.2 Specificationconfirms thatGroupingis a composite element used for structuring models and can include elements from different aspects and layers.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

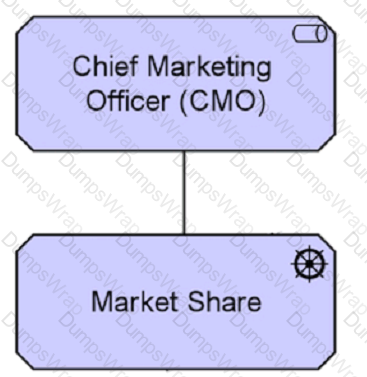

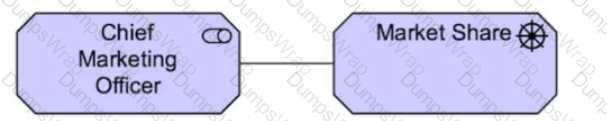

TheChief Marketing Officer (CMO)in this diagram is depicted as astakeholder, as it representsan individual or a group with concerns about market share.

InArchiMate 3.2, astakeholderis an entity thathas an interest in the outcomes of enterprise architecture, business processes, or strategic goals. TheMarket Shareconcept represents abusiness driver or key metric, which directly aligns withstakeholder concernsin an organization.

Analysis of Answer Choices:

✅A. Business Actor→❌Incorrect.

ABusiness Actorrepresents anorganizational entity that performs behavior(e.g., a company, department, or system).

TheCMO is an individual with a concern (Market Share), not a system or department performing business processes.

ArchiMate 3.2 Specification, Section 6.2.1, states that aBusiness Actor is an operational entity rather than a strategic role or stakeholder.

✅B. Role→❌Incorrect.

ARolerepresents aresponsibility or job function assigned to actors, but thediagram does not depict responsibilities or assigned functions.

Arole is usually linked to a business actor, while theCMO in this context is linked to a business concern (Market Share).

ArchiMate 3.2 Specification, Section 6.3.1, states thatroles are used to define responsibilities, whereas stakeholders are used to define concerns.

✅C. Stakeholder→✅Correct Answer

TheCMO represents a strategic position with concerns about business performance, making it aStakeholderin ArchiMate.

ArchiMate 3.2 Specification, Section 6.2.1, definesStakeholder as an entity concerned with outcomes and business goals, exactly fitting the context of this diagram.

✅D. Actor→❌Incorrect.

AnActorin ArchiMate is used to defineentities performing business behaviors(such as a department or a system).

TheCMO is not performing an explicit business function but rather has concerns about market performance.

Final Answer:✅C. Stakeholder

References:

ArchiMate 3.2 Specification: Sections 6.2.1 (Stakeholder), 6.3.1 (Role), and 6.2.1 (Business Actor).

Archi User Guide: Defining stakeholders and their concerns in Enterprise Architecture.

According to the ArchiMate 3.2 Specification1, a capability is an ability that an active structure element, such as an organization, person, or system, possesses. A requirement is a statement of need that must be realized by a system. Capabilities and requirements are both motivation elements that represent the reasons for designing and implementing an architecture.

The ArchiMate language defines two relationships that are permitted between capabilities and requirements:

Assigned to: This relationship links a requirement to a core element (such as a business actor, a business service, a business process, an application service, an application component, etc.) that is responsible for realizing it. The core element may be assigned to a capability that enables it to realize the requirement.

Realizes: This relationship links a capability to a requirement that is fully or partially realized by that capability.

According to the ArchiMate language structure, a concept is either an element or a relationship. An element is either a behavior element, a structure element, a motivation element, or a composite element. A and B in the diagram correspond to these concepts respectively.

References: ArchiMate® 3.2 Specification, Chapter 3: Language Structure, Section 3.2 Top-Level Language Structure; ArchiMate® 3.0 Specification, Chapter 3: Language Structure, Section 3.2 Top-Level Language Structure.

According to the ArchiMate® 3.2 Specification1, a capability represents an ability that an active structure element, such as an organization, person, or system, possesses. Capabilities are typically aimed at achieving some goal or delivering value by realizing an outcome1. Therefore, the correct answer is D. To represent the ability that an active structure element possesses.

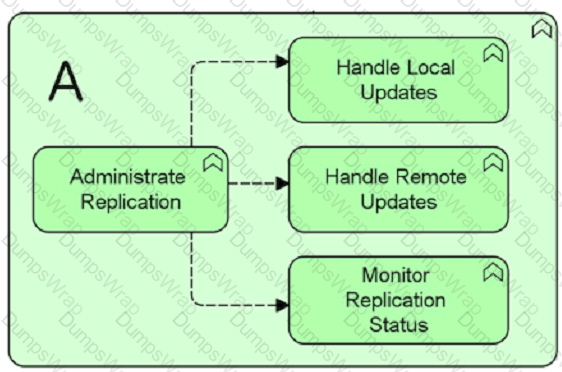

Based on the ArchiMate 3 documents or objectives, a technology function represents a collection of technology behavior that can be performed by a node. The diagram uses a composition relationship to indicate that technology function A consists of four other technology functions. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element. The diagram also uses an information flow relationship to indicate that information is exchanged from Administrate Replication to the other functions. The notation for an information flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1; ArchiMate® 3.2 Specification, Chapter 11 Technology Layer, Section 11.2 BehaviorElements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.5 Other Relationships 1; ArchiMate Patterns – Technology Layer – General Geekery 2.

According to the ArchiMate® 3.2 Specification1, external active structure elements are also called interfaces. An interface represents a point of access where one or more services are offered by an active structure element to its environment1. Therefore, the correct answer is B. Interfaces.

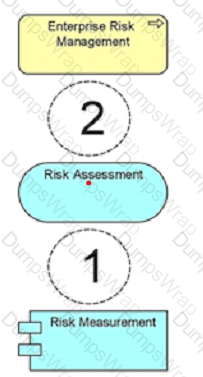

Based on the ArchiMate 3 documents or objectives, a realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. A serving relationship models that an element provides its functionality to another element. The diagram should use a realization relationship from the Risk Assessment service to the Enterprise Risk Management process to indicate that the service realizes the process. The diagram should also use a serving relationship from the Risk Measurement application to the Risk Assessment service to indicate that the application serves the service.

References: ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.2 Dependency Relationships 1; ArchiMate Notation: Part 8 – Relationships - ArchiMate Resources for FREE 2.

Comprehensive and Detailed in Depth Explanation:AnApplication Componentis anactive structurethat representssoftware components performing behavior. Itspassive counterpartis theData Object, which representsstructured information used or produced by applications.

SinceData Objectsdo not perform actions themselves but store, structure, or represent data, they are the correct counterpart toApplication Componentsin theApplication Layer.

This is clearly outlined in theArchiMate 3.2 Specification, which states thatApplication Components act upon Data Objects.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

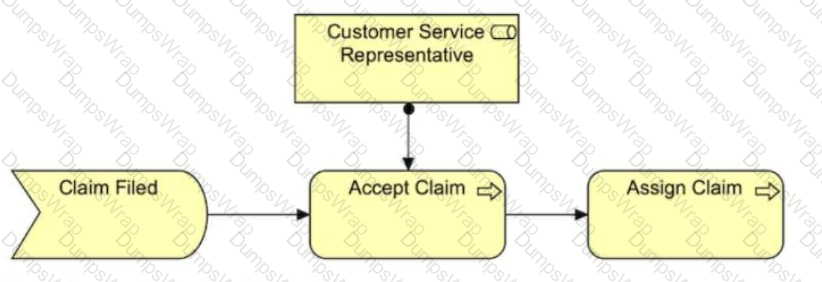

ThisArchiMate Business Layer diagramrepresentsa sequence of business processes triggered by a business event.

"Claim Filed" is a Business Event, which means it represents anexternal occurrence that initiates a process.

"Accept Claim" is a Business Process, meaning it is a structured activity that follows the event.

"Assign Claim" is another Business Process, which follows after the "Accept Claim" process.

A Customer Service Representative role is assigned to the "Accept Claim" process, but the focus of the diagram is the event-driven flow of processes.

Analysis of Answer Choices:

✅A. The Claim Filed event assigns the Customer Service Representative to participate in the Accept Claim and Assign Claim processing.→❌Incorrect

TheCustomer Service Representative role is involved only in the "Accept Claim" process, but the diagram does not indicate their role in "Assign Claim."

ArchiMate 3.2 Specification, Section 6.3.2, states thatBusiness Events trigger processes but do not assign roles.

✅B. The event Claim Filed triggers the Accept Claim process which is serviced by the Customer Service Representative role before the Assign Claim process.→❌Incorrect

WhileClaim Filed triggers Accept Claim, thefocus of the diagram is on process flow, not role assignments.

The key relationship is between the business processes, not the role.

✅C. The information that flows from Claim Filed to Accept Claim and then to Assign Claim is reviewed by the Customer Service Representative role.→❌Incorrect

TheCustomer Service Representative role is assigned to "Accept Claim," but there is no indication they review information across all steps.

The diagramshows process flow, not an explicit review process.

✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.→✅Correct Answer

"Claim Filed" (Business Event) triggers "Accept Claim" (Business Process), which then triggers "Assign Claim" (Business Process).

ArchiMate 3.2 Specification, Section 6.3.1, states thatBusiness Events initiate Business Processes, and processes can trigger subsequent processes.

This matches the flow depicted in the diagram.

Final Answer:✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.

References:

ArchiMate 3.2 Specification: Sections 6.3.1 (Business Processes) and 6.3.2 (Business Events).

Archi User Guide: Modeling event-driven process flows in business architecture.

Comprehensive and Detailed in Depth Explanation:AnInterfacein ArchiMate representsan access point through which elements interact with services. It can be aBusiness Interface, Application Interface, or Technology Interface.

Interfaces serve as aboundarybetween internal and external systems, allowing controlled interactions. TheArchiMate 3.2 Specificationexplicitly states thatinterfaces expose services to the environment.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

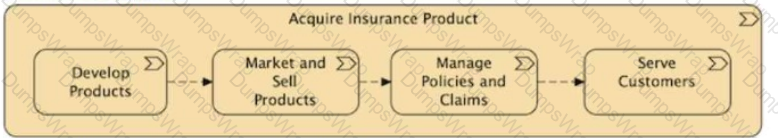

This diagram represents avalue stream, which is a key concept inArchiMate 3.2. Avalue streamdescribes howvalue is created and deliveredacross a sequence of activities. It is used to represent high-levelbusiness activities that contribute to the value creationfor a stakeholder or customer.

TheAcquire Insurance Productat the top level represents anend-to-endflow.

Thesub-elements(Develop Products, Market and Sell Products, Manage Policies and Claims, and Serve Customers) depicthow value is progressively builtthrough different stages.

Thedashed arrowsindicate a flow of value from one stage to the next, typical in value streams.

Analysis of Answer Choices:

✅A. A set of processes for acquiring insurance products→❌Incorrect.

Processes are typically lower-level activitiesdepicted using process modeling, such as BPMN or a process flow diagram.

ArchiMate 3.2 Specification, Section 6.3.2, differentiatesbusiness processesfromvalue streams.

✅B. A sequence of capabilities for acquiring insurance products→❌Incorrect.

Capabilities represent the organization’s abilitiesrather than sequential activities.

InArchiMate, capabilities are morestatic, focusing on what the organization can do, rather thanhow value is delivered over time.

ArchiMate 3.2 Specification, Section 7.3, explains the distinction betweencapabilities and value streams.

✅C. A value stream for acquiring insurance products→✅Correct Answer

A value stream represents a series of high-level activities that create valuefor a customer or stakeholder.

ArchiMate 3.2 Specification, Section 8.2.4, definesvalue streamsas sequences thatdeliver value incrementally.

Thisexact pattern(top-level action decomposed into astructured sequence of stages) is avalue stream.

✅D. A decomposition of the course of action for acquiring insurance products→❌Incorrect.

Course of actionis a concept inStrategy Layerof ArchiMate, referring to guidelines, policies, or directions rather than aflow of activities.

This isnot a strategic breakdown, but rather a flow ofvalue creation.

ArchiMate 3.2 Specification, Section 7.5, states thatcourse of action is different from a structured value creation sequence.

Final Answer:✅C. A value stream for acquiring insurance products.

References:

ArchiMate 3.2 Specification: Sections 6.3.2 (Business Process), 7.3 (Capabilities), 8.2.4 (Value Streams), and 7.5 (Course of Action).

Archi User Guide: Value Stream modeling and decomposition principles.

Comprehensive and Detailed In-Depth Explanation:

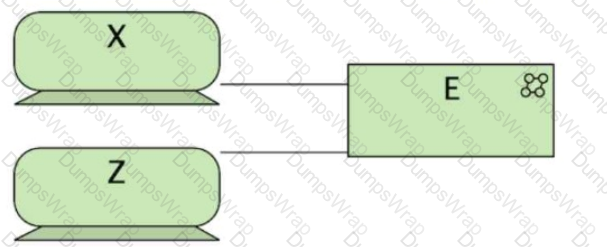

This diagram represents aTechnology Layer modelin ArchiMate, whereX and Z are servers, andE is a shared technology component.

X and Z are likely hardware devices (Servers), which are typically represented as Technology Nodes or Devices in ArchiMate.

E is a shared resource that both servers connect to, implying a common storage or network area storage device.

According toArchiMate 3.2,Technology Objects like Storage Devices or Infrastructure Services can be shared across multiple devices.

Analysis of Answer Choices:

✅A. The servers, represented by devices, are connected by a communication network.→❌Incorrect

There isno explicit network symbol(e.g., a communication path or a network node).

Therelationship between X, Z, and E indicates a shared resource rather than a network connection.

ArchiMate 3.2 Specification, Section 6.6.4, definesCommunication Networksseparately, and none are present here.

✅B. The servers are shown in the technology interaction E, where they collectively process data.→❌Incorrect

Technology Interaction represents behaviorin ArchiMate, meaning two or more active elements arecollaborating on a process.

E is a shared object, not an interaction process.

✅C. The servers share a common network area storage device E.→✅Correct Answer

E is a shared resource, meaningit is likely a storage device used by both servers.

ArchiMate 3.2 Specification, Section 6.6.2, states thatTechnology Objects can represent storage elementsused by multiple devices.

Thismatches the pattern of a shared Network Attached Storage (NAS) or Storage Area Network (SAN).

✅D. Technology collaboration E represents a point of access for services offered by the servers.→❌Incorrect

Technology Collaboration elementsrepresentactive behavior, not astatic resourcelike a shared storage system.

E does not behave as a collaboration element but as a shared infrastructure object.

Final Answer:✅C. The servers share a common network area storage device E.

References:

ArchiMate 3.2 Specification: Sections 6.6.2 (Technology Object), 6.6.4 (Communication Network), and 6.6.7 (Technology Collaboration).

Archi User Guide: Understanding shared technology infrastructure and storage modeling.

Comprehensive and Detailed in Depth Explanation:ADistribution Networkis aphysical elementthat represents acollection of structuresthat transport physical materials, goods, or energy.

APath, in ArchiMate, represents aroute or connection between two or more locations or elements. Since aDistribution Networkenablesmovement along a defined route, itrealizes a Path.

This relationship is explicitly defined in theArchiMate 3.2 Specification, whereDistribution Networkelementsrealize Paths.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed in Depth Explanation:TheActive Structureaspect of theArchiMate Core Frameworkrepresents elements thatperform behavior, such asbusiness roles(e.g., employees, partners) andsystem software(e.g., databases, middleware).

Active structure elements areresponsible for actionsin an enterprise. TheArchiMate 3.2 Specificationstates thatbusiness roles and system software are part of the Active Structure aspect.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

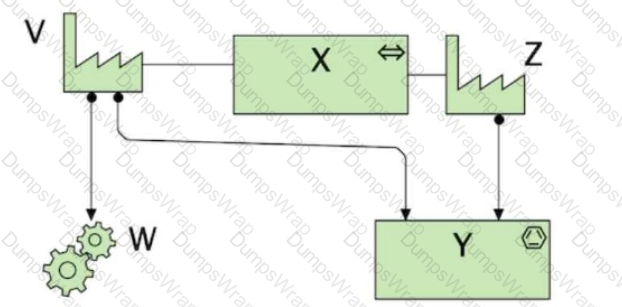

ThisArchiMate Physical Layer diagramrepresentslogistics and supply chain operations. The elements in the diagram align withphysical infrastructure conceptsused inArchiMate 3.2.

Understanding the Diagram Elements:

V (Factory symbol)→ Represents aFactory or Production Facility, where goods are manufactured.

W (Gear symbol)→ RepresentsRaw Material or Equipmentthat isused in production.

X (Network or Transportation symbol)→ RepresentsTransportation or a Distribution networkfor moving goods.

Y (End-point receiving goods)→ Represents alogistics center, warehouse, or transportation endpoint.

This matchesoption D, where:

V = Factory→ The starting point of manufacturing.

W = Raw material→ Essential input for production.

X = Transportation→ Moving products to distribution centers.

Analysis of Answer Choices:

✅A. V = Production process, W = Finished Material, X = Transport network→❌Incorrect

V is not a process; it is aphysical location (Factory).

W represents raw material, not finished material.

X represents transportation, but V is wrongly classified as a process.

✅B. V = Equipment, W = Facility, X = Distribution channel→❌Incorrect

V represents a Facility (Factory), not just Equipment.

W represents raw material, not a Facility.

X is more of a transportation network rather than a distribution channel.

✅C. V = Facility, W = Equipment, X = Distribution network→❌Incorrect

W represents raw material, not just Equipment.

X represents Transportation, not strictly a distribution network.

✅D. V = Factory, W = Raw material, X = Transportation→✅Correct Answer

This is the best match with the diagram’s physical elements.

V (Factory) is the production source.

W (Raw material) is used in production.

X (Transportation) is the means of moving goods.

ArchiMate 3.2 Specification, Section 7.7, definesFacilities, Materials, and Transportation as part of the Physical Layer modeling concepts.

Final Answer:✅D. V = Factory, W = Raw material, X = Transportation.

References:

ArchiMate 3.2 Specification: Sections 7.7 (Facilities & Physical Elements), 7.8 (Material Flow), and 7.9 (Distribution & Logistics).

Archi User Guide: Modeling physical infrastructure in enterprise architecture.
