In UiPath Orchestrator, Modern Folders (used when Activate Classic Folders is unchecked) introduce a role-based access control (RBAC) model to manage user permissions efficiently.

How Folder Roles Are Assigned in Modern Folders:

Since Classic Folders are disabled, Orchestrator uses Modern Folders for managing permissions.

Folder-specific roles and permissions are assigned at the folder level.

These roles can be assigned directly from the "Folders" page or the folder’s Settings page.

Why is D Correct?

✅ Folder roles are assigned from the Folders page or from the folder's Settings page.

In Modern Folders, access control is handled at the folder level.

Admins can navigate to Orchestrator → Folders → Manage Access to assign roles to users.

The App/Web Recorder in UiPath is a powerful automation tool used to record user interactions with applications or web pages. It simplifies the automation development process by automatically generating UI-based activities.

Why is C Correct?

✅ App/Web Recorder is primarily used to:

Capture user interactions with applications and web pages.

Automatically generate UI automation activities (e.g., Click, Type Into, Select Item).

Speed up development by eliminating manual workflow design.

Comprehensive and Detailed In-Depth Explanation:

When dealing with image-based documents (like scanned PDFs, screenshots, or handwritten text), the best method for extracting text is Optical Character Recognition (OCR).

Step-by-Step Execution Guide:

Use OCR Activities in UiPath:

Tesseract OCR (free, open-source)

Microsoft OCR (Windows-based, reliable for printed text)

Google Cloud Vision OCR (for high-accuracy text recognition)

Abbyy OCR (paid, best for structured documents)

Drag and drop the Read PDF with OCR activity if dealing with PDFs or use Screen Scraping with OCR Mode if dealing with UI elements.

Choose the OCR Engine, configure properties such as scale, language, and accuracy.

Extract text and store it in a variable for further processing.

Real-World Use Case:

???? Automating Invoice Processing

A company receives scanned invoices in PDF format.

The automation needs to extract vendor details and invoice amounts.

The bot uses Tesseract OCR to extract text and Regex to filter important fields.

vb

CopyEdit

OCR_Text = "Invoice Number: 12345 Total Amount: $789.50"

Dim match As Match = Regex.Match(OCR_Text, "Total Amount:\s*\$([\d\.]+)")

TotalAmount = match.Groups(1).Value

???? This makes it possible to process invoices even if they are image-based.

Why the other options are incorrect?

❌ A. Screen Scraping – Partially correct, but Screen Scraping alone does not work on images unless combined with OCR.

❌ C. Regex – Regular expressions only work on text, not images. You must first extract text using OCR before applying Regex.

❌ D. String Manipulation – String manipulation is used after text extraction, not for extracting text from images.

✅ Reference:

UiPath Documentation: OCR in UiPath

UiPath Academy: Document Understanding

Comprehensive and Detailed In-Depth Explanation:

The If activity in UiPath is a control flow activity that evaluates a Boolean condition and determines the execution path accordingly:

If the condition evaluates to True, the workflow executes the Then branch.

If the condition evaluates to False, the workflow executes the Else branch.

Only one of the two branches is executed, depending on the condition.

Why the other options are incorrect?

❌ B: The If activity does not have a "priority-based execution"; it simply follows the condition’s result.

❌ C: A multi-condition evaluation requires a Switch or Flow Decision activity, not an If activity.

❌ D: If does not execute both branches; only one branch is executed at a time.

✅ Reference:

UiPath Official Documentation: Control Flow - If Activity

UiPath Academy: Building Workflows - Conditional Statements

Comprehensive and Detailed In-Depth Explanation:

The given expression uses the Split function, which divides a string into an array based on a delimiter.

Step-by-Step Execution Guide: Understanding Split() Behavior

Given Code in UiPath:

Dim StrValue As String = "2023"

Dim SplitResult() As String = StrValue.Split("2"c) ' Split by character "2"

For Each currentItem In SplitResult

Log Message: currentItem

Next

Step-by-Step Breakdown:

Index

Content in SplitResult

Explanation

0

"" (empty)

Before the first "2"

1

"0"

Between the two "2"s

2

"3"

After the last "2"

???? Final Output: 0 3 (each part printed separately).

Real-World Use Case: Extracting File Extensions

???? Scenario: A bot processes filenames and needs to extract extensions.

vb

CopyEdit

Dim FileName As String = "Report.PDF"

Dim Extension As String = FileName.Split("."c)(1)

???? Output: "PDF"

???? Split is powerful for handling structured text processing!

Why the other options are incorrect?

❌ A. 00 – The split function does not duplicate numbers.

❌ B. 20 23 – The space between 20 and 23 never exists after splitting.

❌ C. 2023 – The split function removes the delimiter (2), so 2023 is not possible.

✅ Reference:

UiPath Documentation: String Manipulation

UiPath Forum: Using Split Function

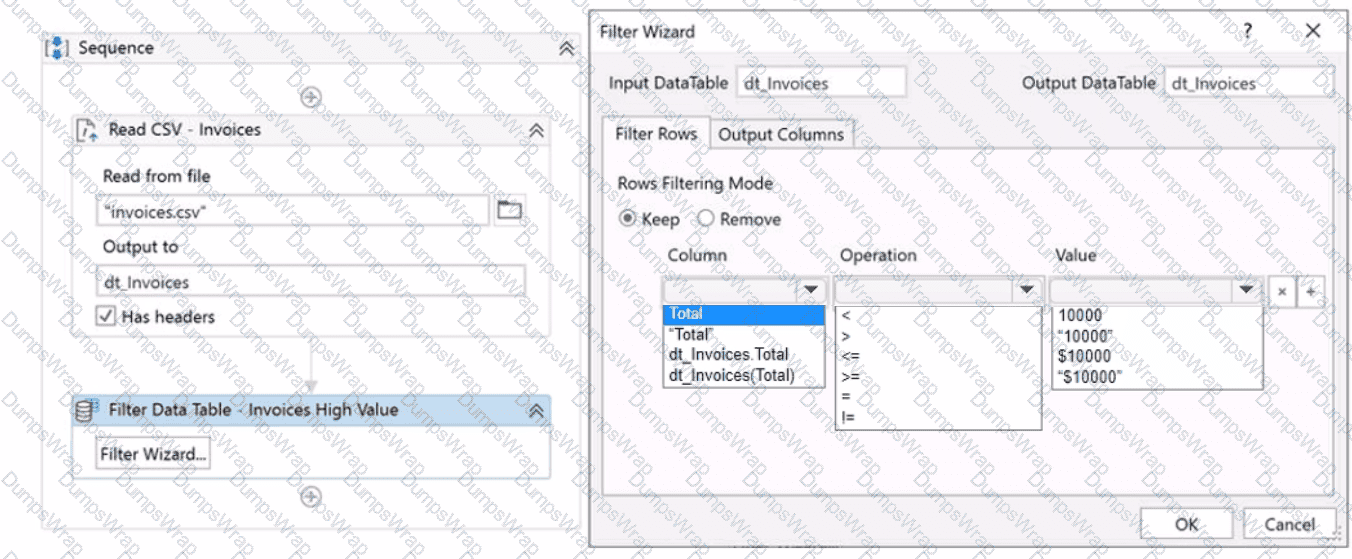

To configure the Filter Data Table Wizard to keep all invoices with a Total value that is over 10 000 USD, you should choose the following options from the drop-down lists:

Column: Total Operation: > Value: 10000

The reason for choosing these options is to filter the data table based on the condition that the Total column value is greater than 10000. This will keep only the rows that satisfy this condition and remove the rest. You can learn more about the Filter Data Table activity and how to use it from the following sources:

Four Ways to Filter Data Tables in UiPath Studio | UiPath

How to Filter Data Table - Help - UiPath Community Forum

Filter Data table with specific column - UiPath Community Forum

When you close a Remote Debugging Connection while a debugging execution is in progress, the execution is stopped abruptly and an exception is thrown on the remote robot. The connection is then closed and you are returned to the Studio interface. (Debugging in Studio - UiPath Academy)

UiPath Robot logs capture execution details such as start time, end time, errors, warnings, and info messages. These logs help in monitoring, debugging, and auditing automation performance.

Where Are Logs Stored?

By Default:

Local text files (for debugging in AppData\Local\UiPath\Logs).

For Centralized Access:

UiPath Orchestrator (Best Practice) – Allows enterprise-level monitoring and analysis.

For Advanced Logging:

Database (Connected via Orchestrator SQL storage).

Custom Logging (Splunk, ElasticSearch, etc.) via UiPath Log Monitoring integration.

Why Other Options Are Incorrect?

A (Directly into a database) ❌

Logs are not stored directly into a database; instead, Orchestrator manages the logs and stores them in its connected SQL database.

B (Local text files only) ❌

Logs are stored locally by default, but this is not centralized access.

C (Microsoft Excel files) ❌

UiPath does not log directly into Excel files; however, logs can be exported to Excel manually.

The Delay between keys property of the Type Into activity specifies the time (in milliseconds) between each keystroke when using the Hardware Events input method. Increasing this value can slow down the typing speed and reduce the risk of missing or skipping characters. (UiPath Automation Developer study guide)

The Config.xlsx file is a configuration file that stores the values of various parameters used in the automation process1. It has three sheets: Settings, Constants, and Assets2. The Settings sheet contains hard-coded values that may need to be changed occasionally, such as file paths, file names, timeout values, etc23. The Constants sheet contains values that are universal variables for the process, such as selectors, URLs, etc23. The Assets sheet contains the names of Orchestrator Assets that are used to store dynamic values that can be accessed across different processes, such as credentials, text, boolean, integer, etc24. However, the Assets sheet does not contain the names of Credential Assets stored in Orchestrator, because they are retrieved using a different activity (Get Credentials) than other assets (Get Asset). Therefore, the Credential Assets are stored in the Settings sheet instead of the Assets sheet.

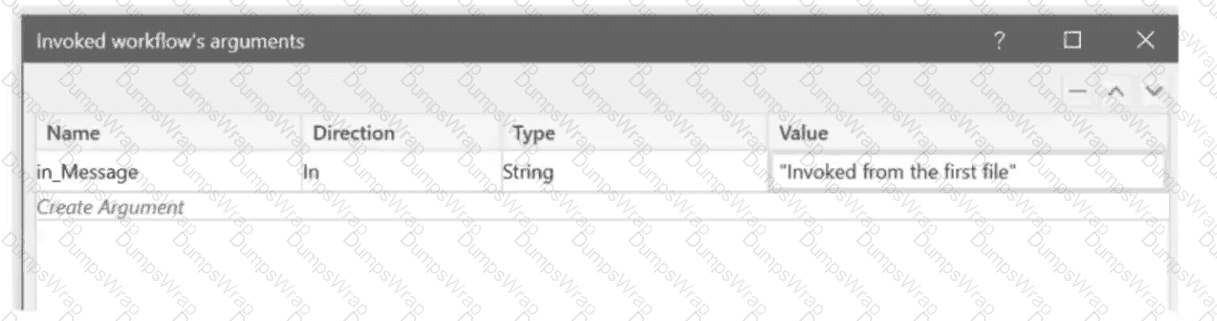

In the Invoked Workflow’s Arguments window, the Value can be configured for each argument as follows:

In: Variable or Hard-coded value. An In argument is an argument that passes a value from the parent workflow to the child workflow. The Value of an In argument can be configured with a variable that holds the value to be passed, or a hard-coded value that is directly entered in the Value field3. For example, if the In argument is Name and the value to be passed is “John”, the Value can be configured with a variable that contains “John”, such as strName, or a hard-coded value, such as “John”.

Out: Variable only. An Out argument is an argument that passes a value from the child workflow to the parent workflow. The Value of an Out argument can be configured only with a variable that receives the value from the child workflow4. For example, if the Out argument is Result and the value to be passed is the sum of two numbers, the Value can be configured only with a variable that stores the sum, such as intResult.

In/Out: Variable only. An In/Out argument is an argument that passes a value from the parent workflow to the child workflow, and then passes the modified value back to the parent workflow. The Value of an In/Out argument can be configured only with a variable that holds the initial value and receives the modified value5. For example, if the In/Out argument is Counter and the value to be passed is a number that is incremented by one in the child workflow, the Value can be configured only with a variable that contains the initial number and stores the incremented number, such as intCounter.

To extract hidden text from a pdf file, the output method that should be used is FullText only. The FullText output method is one of the options available in the Read PDF Text activity, which reads all the characters from a specified pdf file and stores them in a string variable3. The FullText output method extracts the text from the pdf file as it is, without keeping the formatting or the position of the text. The FullText output method can also extract the hidden text from the pdf file, which is the text that is not visible on the screen, but can be copied and pasted into another application4. For example, the hidden text can be the metadata, comments, or annotations of the pdf file. The FullText output method is suitable for extracting hidden text from a pdf file, as it does not depend on the visibility or the layout of the text. The other output methods, such as Native or OCR, are not suitable for extracting hidden text from a pdf file, as they rely on the appearance or the position of the text on the screen. The Native output method preserves the formatting and the position of the text, but it cannot extract the text that is not visible or selectable5. The OCR output method converts the text from the pdf file into an image and then extracts the text from the image, but it cannot extract the text that is not displayed or recognized by the OCR engine6.

The Anchor Base activity is used to automate interaction with an application when the element selector is not reliable and the element’s position on the screen changes. The Anchor Base activity consists of two parts: an anchor and an action. The anchor is a UI element that has a reliable selector and a fixed position relative to the target element. The action is the activity that performs the desired operation on the target element. The Anchor Base activity uses the anchor to locate the target element based on its relative position (left, right, top, bottom) and then executes the action on it. This way, the automation can handle dynamic and complex UI elements that have unreliable selectors or change their position on the screen. References: Anchor Base and Example for Anchor Base Activity from UiPath documentation and forum.

Comprehensive and Detailed In-Depth Explanation:

In UiPath, when working with Microsoft Outlook 365, the most efficient way to automate email monitoring is by using triggers, specifically the Office365 Email Received Trigger.

Why is Option C Correct?

✅ Use the Office365 Email Received Trigger and configure the filters

Triggers are a fundamental automation concept that allows robots to automatically start when a specific event occurs.

The Office365 Email Received Trigger ensures that automation starts instantly when a new email matching specific conditions (filters) arrives.

This approach is real-time, eliminating the need for constant polling or UI interaction.

It is also scalable and efficient, reducing unnecessary load on the system.

Why the other options are incorrect?

❌ A. Create a robot that periodically opens Outlook UI, scrapes received email information, opens and extracts data from matching criteria emails, initiates a new job, and continues email monitoring.

This method is highly inefficient and error-prone because:

It relies on UI automation, which is fragile and prone to failures if the UI changes.

Opening Outlook repeatedly slows down execution and can cause performance issues.

Scraping email data using UI elements is not reliable, as the structure may change.

❌ B. Use the Office365 Email Monitoring Trigger and configure the filters.

This option does not exist in UiPath.

The correct terminology is "Office365 Email Received Trigger", not "Monitoring Trigger."

❌ D. Create a robot that once every few minutes reads the emails from the account and if one matching the search criteria appears, it starts executing the automation steps.

This approach is polling-based, meaning the bot continuously checks for new emails at regular intervals.

Polling is inefficient because it wastes system resources by repeatedly executing unnecessary checks.

It does not provide real-time responsiveness, unlike the Email Received Trigger, which reacts instantly.

Real-World Use Case Example:

Imagine a customer support team that receives urgent refund requests via email. Instead of manually monitoring the inbox or having a bot continuously check for emails, we can:

Set up an Office365 Email Received Trigger in UiPath.

Configure it to trigger automation only when an email with the subject "Refund Request" is received.

Once triggered, the bot automatically:

Extracts email content

Logs the request into a database

Notifies the finance team

Updates the customer support system

This approach ensures real-time automation without unnecessary delays or system overhead.

✅ Reference:

UiPath Documentation: Email Triggers in UiPath

UiPath Academy: Working with Email Automation

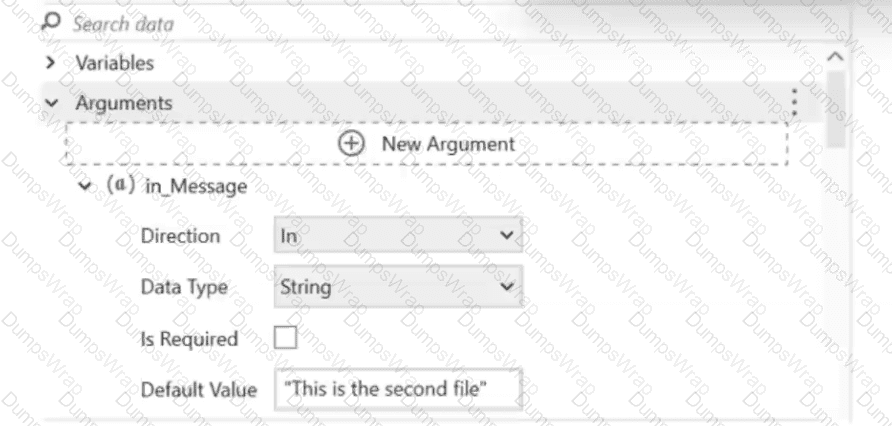

In the given scenario, the "SecondaryWorkflow.xaml" is invoked from "PrimaryWorkflow.xaml" with an argument "in_Message". The Import Arguments panel of the Invoke Workflow File activity in "PrimaryWorkflow.xaml" is showing that the value "Invoked from the first file" is passed to "SecondaryWorkflow.xaml". Since the "SecondaryWorkflow.xaml" has an argument "in_Message" with the default value "This is the second file", this default value is overridden by the value provided during the invoke action. Therefore, when the Log Message activity in "SecondaryWorkflow.xaml" is executed, it will log "Invoked from the first file", making option B correct.

By default, the Timeout property in UiPath is set to 30 seconds (30000 milliseconds).

If the UI element is not found within 30 seconds, the activity throws an exception.

The Timeout can be manually adjusted in the activity’s properties.

✅ Why other options are incorrect:

A (10 seconds): UiPath does not use a 10-second default timeout.

C (60 seconds): Default is 30 seconds, but it can be extended.

D (Indefinitely): Without modification, UiPath will timeout after 30 seconds, not indefinitely.

✅ Reference: UiPath Studio - Activity Timeout Property

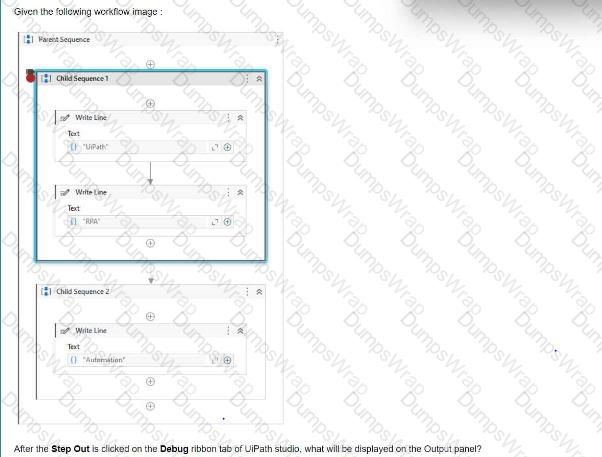

The Step Out debugging function in UiPath is used to complete execution of the current invoked workflow or sequence and return to the parent workflow. It executes all remaining activities in the current scope before stepping out.

Step-by-Step Execution of the Workflow:

The workflow starts executing Child Sequence 1.

Inside Child Sequence 1, the first Write Line activity prints "UiPath" in the Output panel.

The second Write Line activity prints "RPA" in the Output panel.

If a breakpoint is set at the start of Child Sequence 1, and Step Out is clicked, it will finish executing Child Sequence 1 and return to the parent workflow without executing Child Sequence 2.

Thus, only "UiPath" and "RPA" will be displayed in the Output panel.

"Automation" (from Child Sequence 2) will not be printed because Step Out exits after finishing Child Sequence 1.

Why Other Options Are Incorrect:

A (UiPath RPA Automation) → ❌ Incorrect because "Automation" is not printed due to Step Out stopping after Child Sequence 1.

B (UiPath) → ❌ Incorrect because both "UiPath" and "RPA" will be printed before stepping out.

D (RPA) → ❌ Incorrect because "UiPath" is printed first before "RPA".

✅ Correct Output in the Output Panel:

nginx

CopyEdit

UiPath

RPA

One of the important skills of an automation developer is to quickly understand the business processes that need to be automated. This involves identifying the inputs, outputs, and decision points of the processes, as well as the exceptions, rules, and dependencies. By doing so, the automation developer can design and develop the automation workflows and components that meet the business and technical requirements, as well as the best practices and standards. The automation developer can use various tools and methods to understand the business processes, such as process documentation, process diagrams, process mining, process analysis, and process simulation.

UiPath Studio Web is a cloud-based automation tool that enables cross-platform automation without requiring local installations.

Why is Option C Correct?

Studio Web automations run on "serverless robots" that are automatically provisioned by UiPath.

These robots can execute on Windows, Mac, or Linux, making them platform-independent.

No need for manual robot installation on each machine.

Why Other Options Are Incorrect?

A (Must run exclusively on Windows robots) ❌

Incorrect. Studio Web supports Mac, Linux, and Windows.

B (Only supports Linux and Mac, not Windows) ❌

Incorrect. Studio Web is platform-independent.

D (Requires a Windows robot on each system) ❌

Incorrect. Serverless robots handle execution automatically.

Job priorities in unattended automations are used to assign different levels of importance to the processes that are triggered by the Orchestrator1. The job priority can be set as High, Normal, or Low when creating or editing a trigger2. The Orchestrator will execute the jobs based on their priority and the availability of robots3. This feature helps to optimize the performance and efficiency of unattended automations.

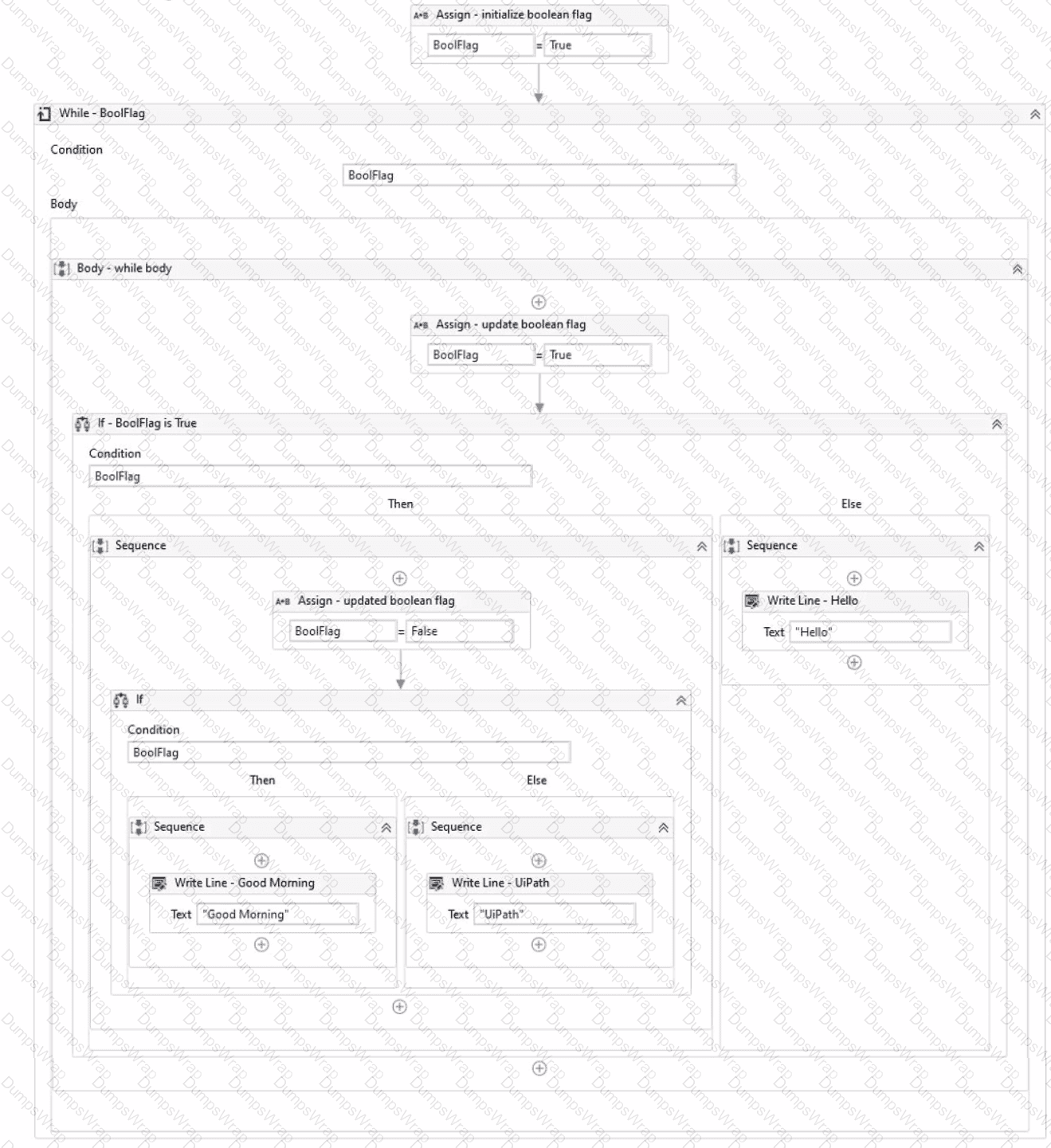

Based on the exhibit, the output produced in the Output panel is “Good Morning”. This is because the “If” activity checks if the “BoolFlag” variable is True. If it is True, the “Then” branch is executed, which contains a “Write Line” activity with the text “Good Morning”. If the “BoolFlag” variable is False, the “Else” branch is executed, which contains a “Write Line” activity with the text “UiPath”. Since the “BoolFlag” variable is assigned to True in the previous “Assign” activity, the condition of the “If” activity is satisfied, and the “Then” branch is executed. Therefore, the “Write Line” activity writes “Good Morning” to the Output panel4. References: If and How to put a if condition in assign activity? from UiPath documentation and forum.

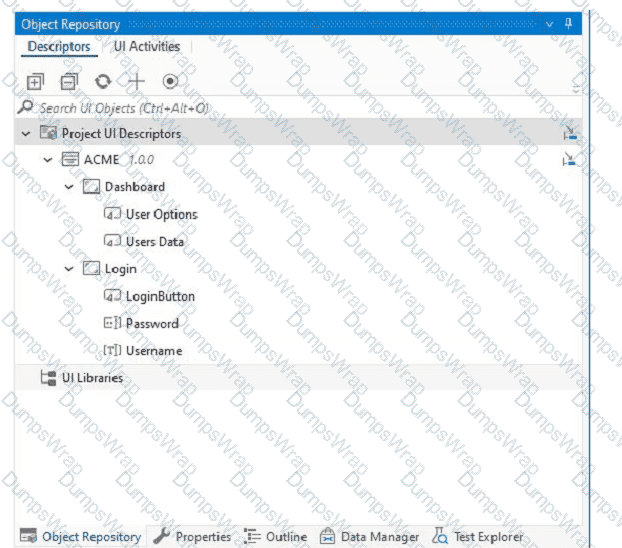

The Object Repository tree structure follows a hierarchical order that starts with the Application node, which represents the application or system that contains the UI elements to be automated. Under the Application node, there can be one or more Version nodes, which specify the version of the application or system. Each Version node can have one or more Screen nodes, which represent the different screens or windows of the application or system. Finally, each Screen node can have one or more UI Element nodes, which are the individual UI elements that can be used for automation. (UiPath Automation Developer study guide)

A process can be found in the UiPath Assistant after being published from UiPath Studio and deployed as an automation in Orchestrator. UiPath Assistant is a desktop tool that enables users to easily access, manage, and run automation workflows on their machines. It displays all the available automations that the user can run, either from Orchestrator or locally. To run an automation from Orchestrator, the user needs to connect the UiPath Assistant to Orchestrator and synchronize the automations and settings with the cloud. The user can also add automations to the launchpad for quick and easy access, create custom folders and sections to organize the automations, view the status and progress of the running automations, and access the help and feedback options.

The most common challenges in automation projects include expectation setting, scope creep, and access delays.

Expectation Setting – Stakeholders often have unrealistic expectations regarding the capabilities of automation, leading to dissatisfaction if processes are more complex than initially assumed.

Scope Creep – As the project progresses, additional requirements may arise, leading to increased workload, delays, and budget overruns.

Access Delays – Limited or delayed access to systems, applications, or environments can significantly slow down development and testing.

While budget constraints, UAT delays, and unorganized teams can also be challenges, expectation setting, scope creep, and access delays are the most frequently encountered issues in RPA projects.

✅ Reference: UiPath Best Practices for RPA Implementation

Comprehensive and Detailed In-Depth Explanation:

Anchors are used when UiPath needs help distinguishing elements.

???? Example: Automating a Web Form

Name Label

Input Field

Name:

[_______]

Name:

[_______]

???? Since both fields are named "Name", multiple anchors (e.g., "Section Header" + "Label") are needed.

???? This ensures accurate element selection!

✅ Reference:

UiPath Documentation: Using Anchors

When a process is executed from the Start Job window in UiPath Orchestrator, the runtime value of an "In" argument in the "Main.xaml" file will be the value provided in Orchestrator if specified. If no value is provided in Orchestrator for this argument, then the default value specified in the "Main.xaml" file will be used, in this case, "String.Empty". Therefore, option C is correct. Arguments can be passed to the "Main.xaml" file from Orchestrator, and there is a mechanism to handle default values for arguments in case they are not provided at runtime.

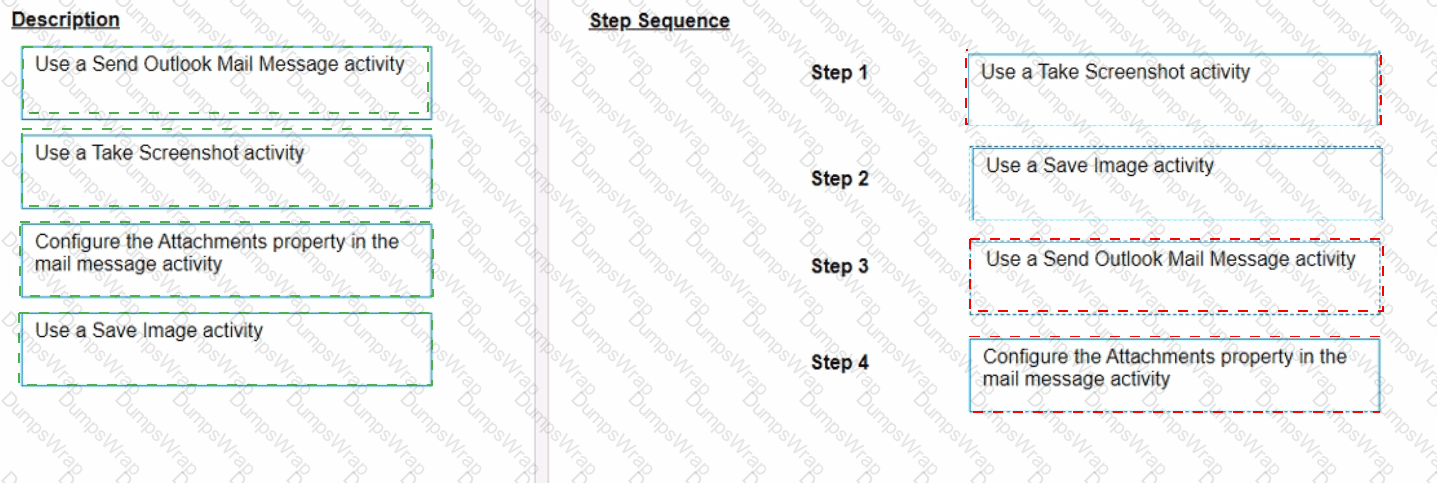

The correct sequence of steps that should be performed is:

Step 1 = Use a Take Screenshot activity to capture the state of the machine. The output is an Image variable, for example img_screenshot.

Step 2 = Use a Save Image activity to save the image to a local file. Supply the FileName (e.g. screenshot.png) and the Image property should be the variable created in step 1.

Step 3 = Use a Send Outlook Mail Message activity to compose and send the email. Configure the Attachments property to include the file path of the image saved in step 2 (e.g. “C:\Users\username\screenshot.png”).

Step 4 = Optionally, use a Delete File activity to delete the image file from the local drive after sending the email. Supply the Path property with the same file path as in step 3.

For more information on how to use these activities in UiPath Studio 2021 10, you can refer to these documents:

Take Screenshot

Save Image

Send Outlook Mail Message

Delete File

The DateTime.ParseExact method converts a string into a DateTime object using a specified format and culture1. The format parameter defines the order and symbols of the date and time components in the string2. The culture parameter determines the conventions for date separators, time indicators, and other symbols3.

In this case, the string variable DateString has the value “03/03/2023 16:23:11”, which means the 3rd of March, 2023, at 4:23:11 PM. To convert this string into a DateTime variable, we need to use the format “dd/MM/yyyy HH:mm:ss”, which matches the order and symbols of the string components. The “dd” represents the day as two digits, the “MM” represents the month as two digits, the “yyyy” represents the year as four digits, the “HH” represents the hour as two digits in 24-hour format, the “mm” represents the minute as two digits, and the “ss” represents the second as two digits2. The slashes (“/”) and colons (“:”) are used as date and time separators respectively. The Culturelnfo.InvariantCulture parameter specifies that the string uses invariant culture, which means it is not associated with any specific language or region3.

Therefore, option D is the correct expression to convert the string variable DateString into a DateTime variable. Option A has a wrong hour format (“hh” instead of “HH”), which would cause an exception if the hour is greater than 12. Option B has a wrong order of day and month (“MM/dd” instead of “dd/MM”), which would result in an incorrect date. Option C has a wrong minute format (“mm” instead of “MM”), which would cause an exception if the month is greater than 12.

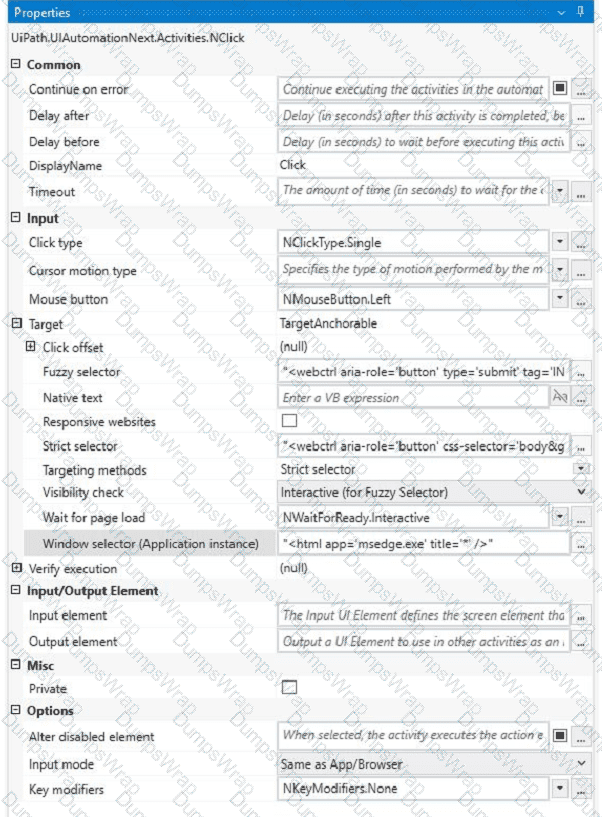

 The Click activity is used to simulate a mouse click on a specified UI element, such as a button or a link1. It has several properties that can be configured to customize its behavior, such as the input method, the click type, the timeout, and the wait for ready1.

The input method determines how the click is performed. It can be Default, Simulate, or Window Messages. The Default method uses the hardware driver to simulate the click, and it requires the target element to be visible and in focus. The Simulate and Window Messages methods use the technology of the target application to inject the click, and they can work in the background, even if the target element is hidden or minimized2.

The click type determines which mouse button is used for the click. It can be Single, Double, Down, or Up. The Single and Double types perform a single or double click using the left mouse button. The Down and Up types perform a press or release action using any mouse button1.

The timeout determines how long the activity waits for the target element to appear before throwing an error. It is measured in milliseconds, and it has a default value of 30000 (30 seconds). If the timeout is exceeded, the activity fails with a TimeoutException1.

The wait for ready determines when the activity executes. It can be None, Interactive, or Complete. The None option executes the activity immediately. The Interactive option executes the activity after the target element is loaded. The Complete option executes the activity after the target application is loaded1.

In your case, you have configured the properties for the Click activity as follows:

Input method: Simulate

Click type: Single

Timeout: 30000

Wait for ready: Complete

This means that the Click activity will use the Simulate method to perform a single click on the target element in the background, after waiting for 30 seconds or until the target application is fully loaded, whichever comes first.

Since you have mentioned that an animation on the web page never completely loads but the element indicated in the Click activity does load within the specified timeout duration, what occurs when this Click activity executes is:

Element is clicked once the element is fully loaded.

This is because the Simulate method can work in the background, even if the web page is hidden or minimized, and it does not depend on the animation to complete. The Complete option for wait for ready ensures that the Click activity waits until the target element is loaded before clicking on it. The timeout value of 30000 does not affect this scenario, because it is not exceeded.

Therefore, option A is correct.

The recommended Log Level for the Log Message activity that is contained within the System Exception block of a Try Catch activity designed to catch and stop for any unknown System Exceptions is "Fatal." This level is used to indicate that a critical error has occurred, typically one that leads to a termination of the application.

A selector is a string of characters (XML fragment) that identifies a UI element uniquely within the UI hierarchy. A selector must be valid for only one element in an application, otherwise the Type into activity will not be able to find the correct target for typing the text. If a selector is valid for more than one element, it is considered ambiguous and unreliable. Therefore, the answer is A. 1 element. References: Selectors, Type Into

Global Constants are a type of variables that can store data in a central location that can be accessed by all workflows and activities in a project. Unlike Global Variables, Global Constants have a fixed value that cannot be modified during the automation execution. Global Constants can be created from two places in UiPath Studio: the Data Manager panel and the Variables panel. The Data Manager panel is a new feature in UiPath 2022.10 that allows the developer to manage all the data elements of a project, such as variables, arguments, data types, and data sources. The Variables panel is a classic feature that allows the developer to create and edit variables for a specific workflow. To create a Global Constant from the Data Manager panel, the developer needs to select the Constants tab, click on the New Constant button, and fill in the required fields, such as name, type, value, and description. To create a Global Constant from the Variables panel, the developer needs to select the Global scope, click on the Create Variable button, and fill in the required fields, such as name, type, value, and description. In both cases, the developer needs to make sure that the Is Constant option is checked, which indicates that the variable is a constant and cannot be changed.

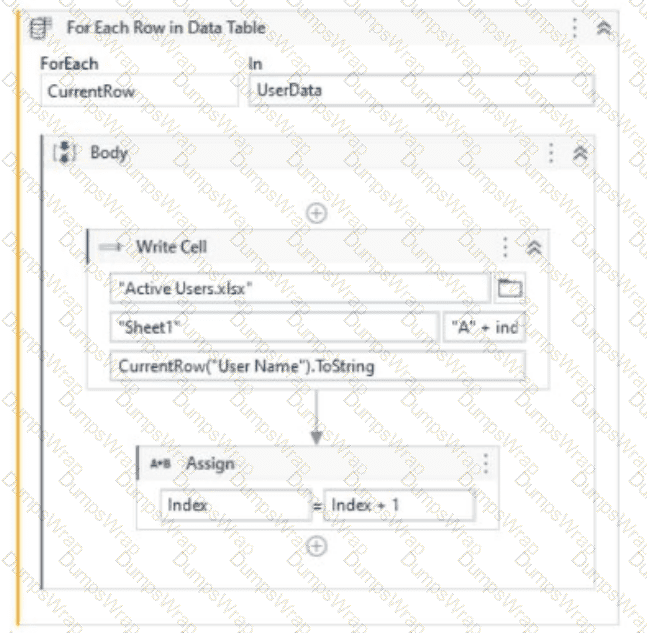

This sequence involves a For Each Row in Data Table loop, which iterates through each row in the UserData data table and writes the "User Name" column value into an Excel file ("Active Users.xlsx") using the Write Cell activity.

Key Observations:

For Each Row in Data Table Loop:

The loop iterates through each row of the UserData data table.

The CurrentRow("User Name").ToString retrieves the User Name from the current row.

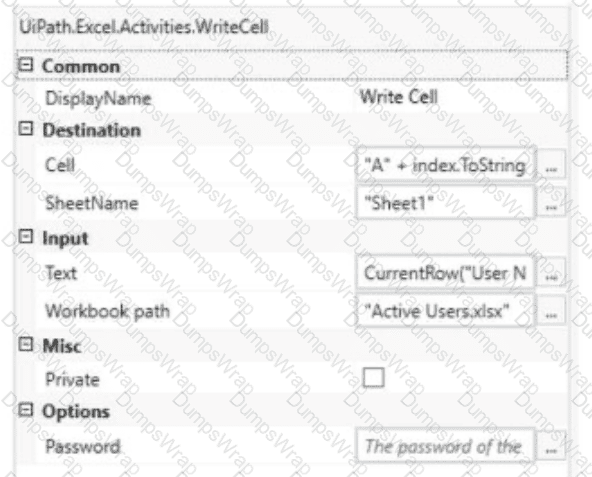

Write Cell Activity Configuration:

Workbook Path: "Active Users.xlsx" (data is being written to an Excel file).

Sheet Name: "Sheet1" (data is being written in Sheet1).

Cell Reference: "A" + index.ToString (values are being written in column "A" dynamically based on index).

Text: CurrentRow("User Name").ToString (User Name values from UserData are written).

Index Increment Logic:

The index variable is used to determine the row where data is written in column "A".

After each write operation, index = index + 1, which ensures that the next value is written in the next row (A1, A2, A3, ...).

Behavior of the Sequence:

First Iteration:

index = 1

"User Name" value from the first row of UserData is written to A1.

index is incremented (index = 2).

Second Iteration:

"User Name" value from the second row of UserData is written to A2.

index is incremented (index = 3).

Subsequent Iterations:

This continues until all rows in UserData are processed.

Why Is Option A Correct?

✅ It writes values in subsequent rows of the "Active Users.xlsx" file.

Since index is incremented on each iteration, data is written in column "A" row-wise (A1, A2, A3, etc.).

This behavior ensures subsequent rows in Excel receive the values from the UserData table.

The Read PDF Text activity in UiPath allows users to extract text from a PDF file. The Range property determines which pages should be read.

Correct Syntax for Reading a Specific Page:

To read only page 1, you need to enter "1" in the Range property.

This tells UiPath to extract text only from the first page of the document.

Why Other Options Are Incorrect:

B ("") → An empty string means all pages will be read, which is not what the question asks.

C ((0)) → Incorrect because UiPath follows 1-based indexing, not 0-based.

D (1) → Incorrect because the Range property expects a string value ("1"), not a numeric input.

This is the correct way to add a library that has been published to the Orchestrator feed as a dependency in a project. The Manage Packages Window allows the developer to browse, install, update, or remove packages from various sources, such as the Orchestrator feed, the Official feed, or the Local feed. The Orchestrator feed is the default location where libraries are published from Studio, and it can be enabled or disabled by clicking on the Settings button in the Manage Packages Window. The Search bar allows the developer to find the desired package by name, version, or description. The Install button allows the developer to add the package as a dependency to the project. The other options are incorrect because they do not use the Orchestrator feed, or they do not use the correct activity to invoke the library. References: About Libraries, Managing Dependencies, Publishing a Library, Invoking a Workflow

The Strict selector relies only on the UI element’s full selector and does not use anchors.

Why is Option B Correct?

Strict selectors contain only reliable UI element attributes (title, id, class, etc.).

No anchors are needed, as the element is uniquely identified through direct targeting.

Anchors are used only in Fuzzy or Image-based selectors for dynamic UI elements.

Why Other Options Are Incorrect?

A (Strict selector always works better with multiple anchors.) ❌

Incorrect. The Strict selector does not use anchors at all.

C (Strict selector requires at least two anchors.) ❌

Incorrect. Anchors are irrelevant in Strict mode.

D (Strict selector only uses automatically identified anchors.) ❌

Incorrect. Strict selectors do not use anchors, manually or automatically.

The "Show History" option in UiPath Studio displays version history for workflows managed in Git.

It allows developers to compare different versions of a file.

Differences in activities, arguments, and variables are highlighted, helping in code reviews and debugging.

✅ Why other options are incorrect:

B (Push): Sends committed changes to the remote repository but does not compare versions.

C (Checkout Branch): Switches to another branch but does not show history.

D (Pull Rebase): Merges changes from the remote repository but does not compare file versions.

✅ Reference: UiPath Studio - Git Version Control

Arguments have mandatory and optional properties.

Mandatory Properties:

Argument Type → Defines the data type (String, Int32, etc.).

Direction → Determines how the argument is used (In, Out, In/Out).

Optional Properties:

Default Value → Can be left empty, meaning it is not required.

IsRequired → Not all arguments must be required.

Why is A Correct?

✅ Default Value is optional because:

Not all arguments need a predefined value.

Some arguments get values dynamically at runtime.

According to best practices in UiPath, there should be a single Global Exception Handler for the entire project, making option A correct. The Global Exception Handler is designed to manage unhandled exceptions in a centralized manner, allowing for a consistent approach to error handling across the entire project. Options B, C, and D suggest multiple handlers, which contradicts the principle of centralized exception management.

Comprehensive and Detailed Explanation:

In ServiceNow, Application Files refer to the various components or artifacts that make up an application. These include modules, scripts, tables, client scripts, business rules, UI policies, and other elements that define the application's functionality and behavior. When an application is developed, all these artifacts are collectively referred to as Application Files.

Option A (Incorrect): CSV files are typically used for data import purposes and are not considered part of the application's core artifacts.

Option B (Incorrect): XML exports of an Update Set represent a collection of changes or customizations made to the system, which can be moved between instances. While related, they are not synonymous with Application Files.

Option C (Incorrect): An XML export of a table's records pertains to the data within a table, not the structural or functional components of the application itself.

Option D (Correct): Application Files encompass all the ServiceNow artifacts that comprise an application, defining its structure and behavior.

Understanding Application Files is crucial for developers, as they represent the building blocks of any ServiceNow application, ensuring all necessary components are packaged and deployed correctly.

The "For Each File in Folder" activity is the appropriate choice for iterating through all the files in a local folder in UiPath. This activity allows you to specify the folder path and then iterates through each file within that folder, performing actions on each file as needed. Options B, C, and D are not standard UiPath activities for this purpose.

To display the value of a DateTime variable in a specific format, the ToString method should be used with the format specified as a string argument. The correct expression for the "Timestamp" variable to display it in the format "yyyy-MM-dd hh:mm" is Timestamp.ToString("yyyy-MM-dd hh:mm").

The Tenant context in UiPath Orchestrator allows management of tenant-wide settings, licenses, and entities.

Tenant-level actions include:

Managing licenses for attended/unattended robots.

Configuring tenant-wide settings such as security policies.

Managing users, roles, and permissions across folders.

✅ Why other options are incorrect:

A (Assets & Storage Buckets): Managed at the folder level, not tenant level.

C (Test Cases & Executions): Specific to folders, not tenant-wide.

D (Folder Roles & Mixed Roles): Roles are assigned at the folder level, not tenant level.

✅ Reference: UiPath Orchestrator - Tenant vs Folder Context

Starting with UiPath Studio version 2022.10, the default project type is Windows, which uses .NET 6 or .NET 5 with Windows support1. If a project contains dependencies that lack Windows compatibility, such as custom activities or libraries, they are marked as unresolved when the project is converted to Windows2. The developer needs to manually resolve them by finding compatible alternatives or updating the code3.

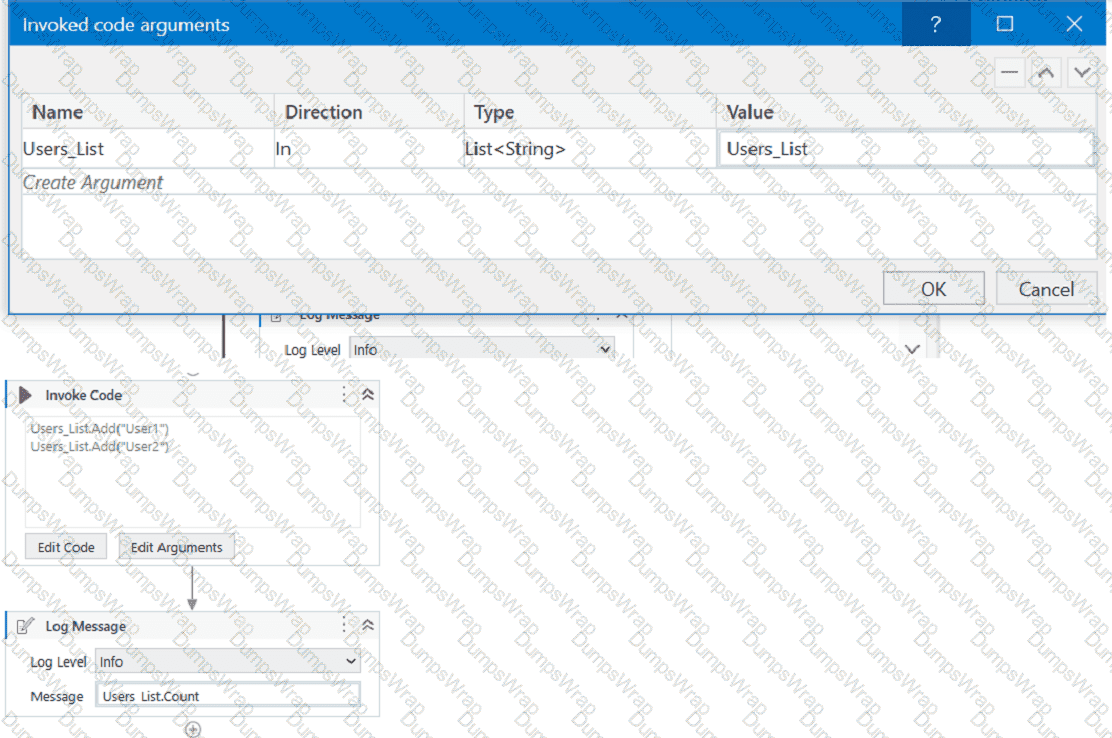

The Invoke Code activity in UiPath is an activity that allows developers to execute custom code written in VB.NET or C# within a workflow. The activity can accept a list of input arguments and return a list of output arguments, which can be used to exchange data between the code and the workflow. The activity can also access the variables and arguments defined in the current scope of the workflow. The Invoke Code activity can be useful for scenarios where the existing activities do not meet the specific requirements or logic of the automation process. (UiPath Automation Developer study guide)

Comprehensive and Detailed In-Depth Explanation:

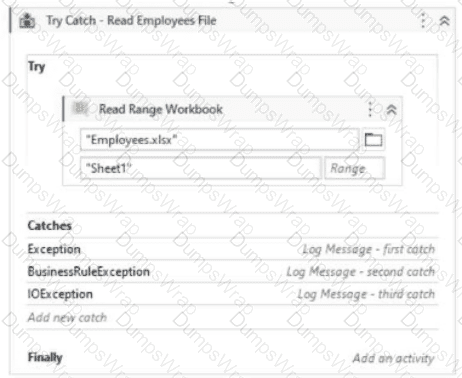

When a UiPath bot tries to read an Excel file that is open in another application, it encounters an IOException (Input/Output Exception).

Step-by-Step Execution Guide: Handling IOException in UiPath

1️⃣ Try to Read an Open Excel File

vb

CopyEdit

Read Range Workbook: "Employees.xlsx"

2️⃣ If the file is already open, IOException occurs

3️⃣ The "IOException" Catch Block Handles the Error

Real-World Use Case: Ensuring File Availability Before Reading

???? Scenario:

A bot is scheduled to read employee records every morning at 8 AM.

✔ If an employee accidentally leaves the Excel file open, the bot will fail.

✔ To prevent failure, the bot:

Tries to read the file.

If IOException occurs, sends an email alert instead of failing.

vb

CopyEdit

Try

Read Range Workbook: "Employees.xlsx"

Catch ex As IOException

Send Email: "Please close the Employees file!"

???? This makes the automation resilient!

Why the other options are incorrect?

❌ A. None – An exception will occur if the file is open.

❌ C. BusinessRuleException – This is for custom business logic errors, not file access issues.

❌ D. Exception – The IOException block specifically catches this error before reaching the generic Exception block.

✅ Reference:

UiPath Documentation: Handling Exceptions

The Alerts panel is a feature of the UiPath Orchestrator that shows the most critical alerts related to robots, queue items, triggers, and more1. The alerts are displayed in descending order of severity and time2. The Alerts panel can be accessed by clicking the Alerts bell icon on the top-right corner of the Orchestrator dashboard3. Clicking an alert in the panel redirects the user to the custom filtered page of the associated component4.

The SetTransactionStatus.xaml file is invoked in the Finally section of the Try Catch activity in the Process Transaction state of the REFramework template project. This file is responsible for setting the status of the current transaction item based on the outcome of the process. It also closes all applications that are used by the process and logs relevant information. (UiPath Studio - REFramework - UiPath Academy)

To determine whether a button is enabled or disabled, the best method is to use the "Get Attribute" activity.

Why is Option C Correct?

Get Attribute retrieves various properties of a UI element, including:

"enabled" (True/False)

"visibility"

"aria-disabled"

This allows the bot to check if the button is interactable.

Example Use Case:

Use Get Attribute activity.

Set "Attribute" = "enabled".

Store the result in a Boolean variable:

isButtonEnabled = Get Attribute Output

Use an If condition to check:

If isButtonEnabled Then

Click Button

Else

Log Message: "Button is disabled"

Why Other Options Are Incorrect?

A (Find Element) ❌

Only checks if an element exists but does not retrieve its state.

B (Get Text) ❌

Extracts visible text but cannot detect whether a button is enabled/disabled.

D (Check App State) ❌

Used to detect application states but not specific element attributes.

Step Into allows developers to execute one activity at a time during debugging.

It helps inspect nested activities, arguments, and variables by stepping into each function.

This is useful for analyzing workflows with multiple layers of execution.

✅ Why other options are incorrect:

A (Slow Step): Slows down execution but does not allow manual stepping.

B (Break): Stops execution completely.

D (Step Out): Exits the current scope and moves to the next parent activity.

✅ Reference: UiPath Debugging - Step Into

The Use Foreground activity can be used to transition a Background Process to Foreground. It allows you to perform UI automation tasks that require user interaction or visibility1. The other activities are not suitable for this purpose.

The UI Object Repository is a feature that allows you to store and reuse UI elements across different automation projects1. A UI Library is a type of project that contains UI elements and workflows that can be used as dependencies in other projects2. When you import a UI Library as a dependency in your current project, the UI Object Repository defined in the UI Library will automatically be available in your current project3. You can access the UI elements from the Object Repository panel in Studio and use them in your activities4. Therefore, the correct answer is C. The other options are incorrect because they do not reflect the actual behavior of the UI Object Repository and the UI Library.

Unattended automation is designed to run without human intervention and is typically deployed in server environments or virtual machines.

Why Option D is Correct:

Unattended robots handle background automation that requires elevated permissions and credentials.

Credentials are securely stored in UiPath Orchestrator Assets, meaning no manual login is required.

Use Case: Running scheduled tasks, back-office operations, and enterprise-level automation.

Why Other Options Are Incorrect:

A: ❌ Incorrect – Unattended bots do not require a human to log in or provide credentials manually.

B: ❌ Incorrect – Supervision is not needed; Unattended automation executes independently.

C: ❌ Incorrect – Unattended automation is not for small, fragmented tasks but enterprise-scale operations.

The "Is Match Activity" is best suited to validate the format of a date stored in a string variable. This activity uses regular expressions (RegEx) to check if the string matches a specific pattern, which in this case would be the date format required by the custom form.

The Designer panel is the central panel in UiPath Studio, where you can design your automation workflows by dragging and dropping activities. When you insert activities into a Sequence, they appear in the Designer panel as a linear representation that flows from top to bottom. The Snippets panel contains ready-made workflows that you can reuse in your projects. The Imports panel allows you to import namespaces and libraries that you can use in your workflows. The Outline panel shows the hierarchical structure of your project and its components. References: The User Interface, Sequences

To create an array of folder names from the String variable FilePath, the method that will return an array of only the folder names is:

Split(FilePath,"").StringSplitOptions.RemoveEmptyEntries

This method uses the String.Split method, which returns an array of strings that are separated by a specified delimiter. The delimiter in this case is the backslash character ("") which is used to separate the folder names in the file path. The StringSplitOptions.RemoveEmptyEntries option is used to remove any empty entries from the resulting array, such as the one before the first backslash or after the last backslash1. For example, if the FilePath variable has the value:

FilePath = “C:\Users\UiPathRobot\Documents\Technologies”

Then the method Split(FilePath,"").StringSplitOptions.RemoveEmptyEntries will return an array of four strings:

{“C”, “Users”, “UiPathRobot”, “Documents”, “Technologies”}

These are the folder names in the file path, without any empty entries.

The String.Join method takes two parameters: a separator and an array of strings. It returns a new string that concatenates the elements of the array using the separator. The correct syntax is String.Join(separator, array). Therefore, option B is the correct answer.

This question is a duplicate of Question No. 18. The correct answer and explanation remain the same:

When duplicates are found, clicking a nearby element as an anchor is the best way to provide UiPath with additional context for accurate element selection. This ensures reliable UI interaction and reduces errors during automation execution.

✅ Reference: UiPath Official Documentation – Anchors in UI Automation

The REFramework is a template that provides a structured and consistent way to develop automation processes using state machines. The REFramework has four main states: Initialization, Get Transaction Data, Process Transaction, and End Process. Each state performs a specific function and transitions to another state based on the outcome. When a developer runs a process using the REFramework, with the process utilizing Orchestrator queues and a queue already created with the Name provided and the Auto Retry function disabled, the following states will be executed without errors:

Initialization: This state is used to initialize the application, read the configuration data, and log in to Orchestrator. If the initialization is successful, the state transitions to Get Transaction Data; otherwise, it transitions to End Process. (UiPath ReFramework documentation1)

Get Transaction Data: This state is used to retrieve a transaction item from the Orchestrator queue and assign it to a variable. If there is a transaction item available, the state transitions to Process Transaction; otherwise, it transitions to End Process. (UiPath ReFramework documentation1)

Process Transaction: This state is used to execute the business logic for the current transaction item and handle any exceptions that may occur. If the transaction is successful, the state updates the status of the transaction item to Successful and transitions to Get Transaction Data; if the transaction fails due to a business exception, the state updates the status of the transaction item to Failed and transitions to Get Transaction Data; if the transaction fails due to a system exception, the state updates the status of the transaction item to Failed and retries the transaction based on the MaxRetryNumber parameter from the Config file. If the retry limit is reached, the state transitions to End Process; otherwise, it transitions to Get Transaction Data. (UiPath ReFramework documentation1)

End Process: This state is used to close all applications, log out of Orchestrator, and terminate the process. This state does not have any transition. (UiPath ReFramework documentation1)

The InitAllApplications TestCase is used to test the initialization of all the applications that are required for the automation process1. The pre-requisite for running this TestCase is to invoke the InitAllSettings XAML file in the Given section of the TestCase2. The InitAllSettings file is responsible for reading the configuration data from the Config.xlsx file and storing it in a dictionary variable3. This data is then used by the InitAllApplications file to open and log in to the applications using the credentials and URLs from the dictionary variable4.

In UiPath Studio, variables are primarily created and managed in the Data Manager Area.

Why is B Correct?

✅ The Data Manager Area:

Provides a structured view of variables.

Allows creating, renaming, and managing variables easily.

Is the recommended location for handling project variables.

The Log Message activity is used to write a diagnostic message at a specified level to the output panel, the log file, and Orchestrator1. The message can include custom log fields that are added by the Add Log Fields activity and removed by the Remove Log Fields activity2. In this case, the developer has added six log fields in the Add transaction log fields (Success) sequence and removed three of them in the Remove transaction log fields sequence. Therefore, the remaining three log fields (logF_TransactionField2, logF_TransactionID, and logF_TransactionStatus) will be displayed along with the default log fields (message, level, logType, timeStamp, fileName, processVersion, jobId, robotName, and machineId) when executing the Log Message Completed activity. The values of the log fields will be taken from the corresponding arguments of the Set Transaction Status activity.

Both list and arrays are a collection type of variables that can store multiple values of the same data type. The main difference between them is if their size is fixed or not. Array has a fixed size, meaning that if you create an array containing 3 elements, you can’t add more than 3 or reduce its size. List has a dynamic size, meaning that you can add or remove elements as you need. List also provides some methods that can be invoked to perform operations on the elements, such as sorting, reversing, finding, etc. Array does not have such methods, but it is more optimized for arithmetic computations.

The Get Asset activity retrieves stored values from Orchestrator Assets. Since email addresses are text-based values, the most appropriate Asset type is Text.

Why is C Correct?

✅ Text Asset is suitable for:

Storing strings such as email addresses, URLs, file paths, or API keys.

Easily updated in Orchestrator without modifying the automation.

Supports dynamic values that may change over time.

Unattended robots are designed to run without human interaction. They can be triggered by events, schedules, or via a command from Orchestrator and are capable of executing processes independently. This is particularly useful for batch processing or automations that need to run at specific times without requiring a human to initiate them. Hence, the correct answer is D.

Comprehensive and Detailed In-Depth Explanation:

UiPath Studio Web and Studio Desktop allow users to work on automation projects both locally and in the cloud. However, when a project is edited in both Studio Web and Studio Desktop, a potential conflict can occur if changes exist in both versions.

Why is Option D Correct?

✅ "You must first confirm that you want to overwrite the remote changes."

When selecting Cloud Project > Save to Cloud, UiPath detects conflicts between the cloud and local versions.

The user is prompted to confirm whether to overwrite the cloud version with local changes.

This prevents accidental loss of cloud-based changes.

Why the other options are incorrect?

❌ A. "An error message is displayed and the save operation fails."

UiPath does not block saving but rather asks for confirmation before overwriting.

❌ B. "Changes in Studio Web are automatically replaced by desktop changes."

UiPath does not automatically overwrite changes without confirmation.

❌ C. "The changes in both Studio Desktop and Studio Web will be merged."

There is no auto-merge capability for conflicting changes. Manual intervention is required.

✅ Reference:

UiPath Documentation: Managing Cloud Projects

UiPath Academy: Working with Cloud and Desktop Projects

Comprehensive and Detailed Explanation:

To obtain a subset of data from a DataTable (dt), the correct approach is to use:

Filter Data Table Activity:

This activity allows filtering columns and rows of a DataTable based on specified conditions.

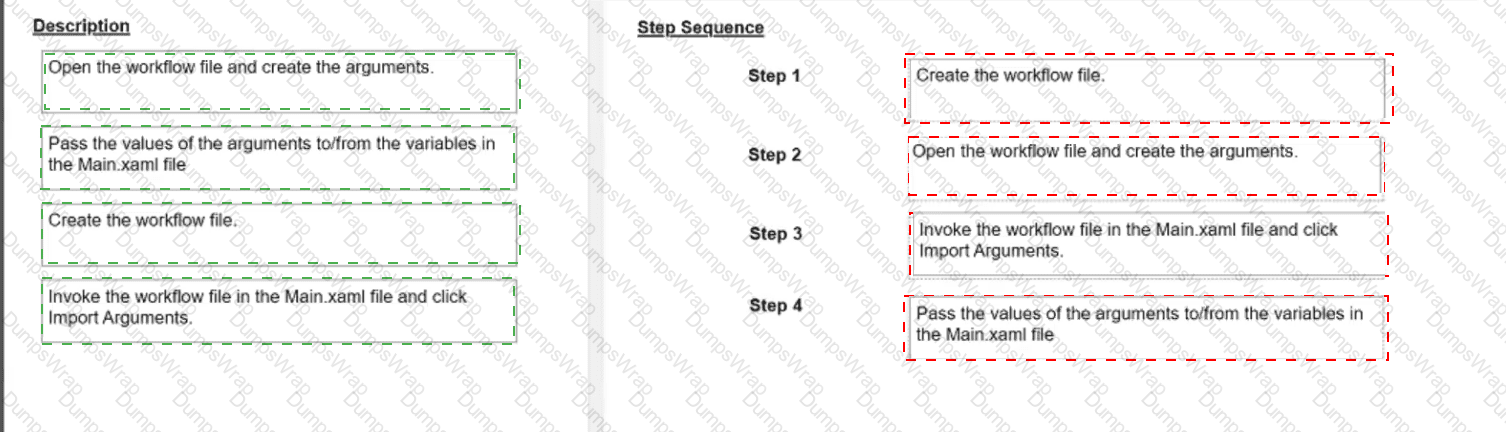

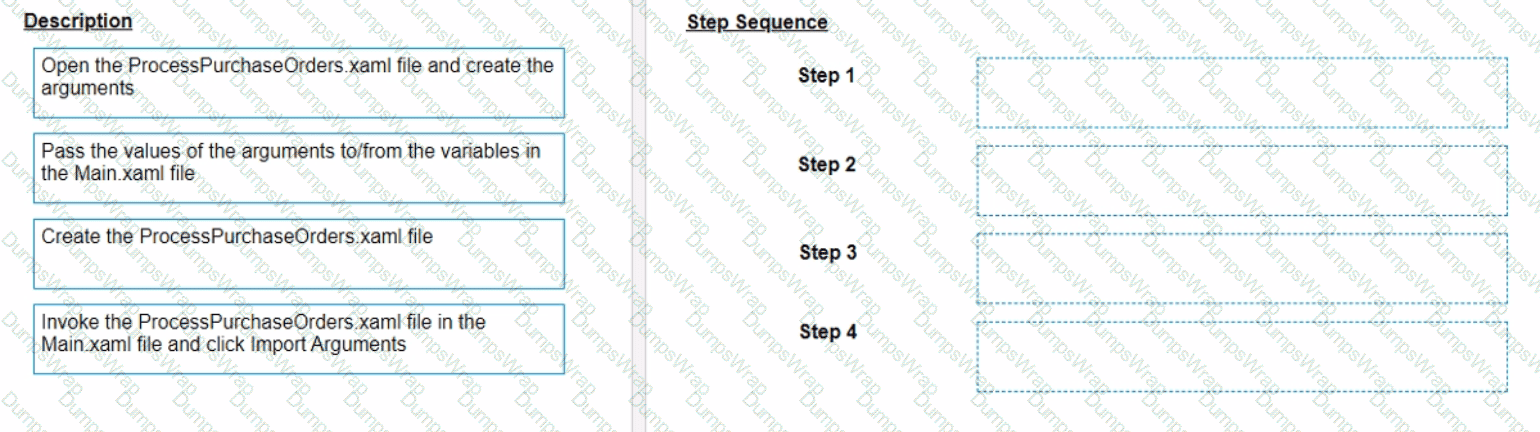

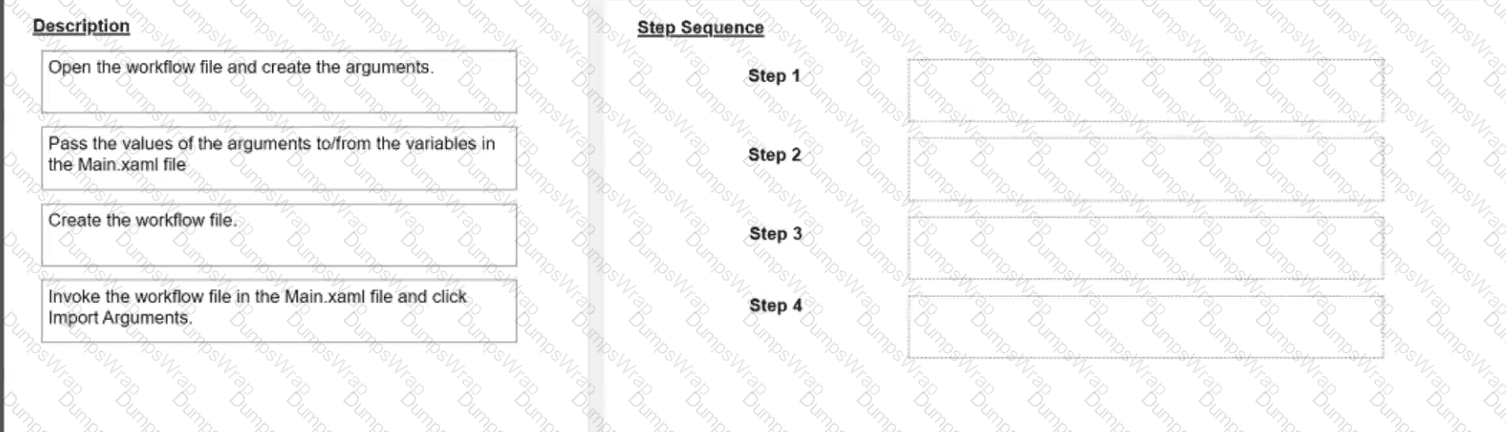

The correct sequence of steps the developer needs to perform is:

Step 1 = Create the ProcessPurchaseOrders.xaml file

Step 2 = Open the ProcessPurchaseOrders.xaml file and create the arguments

Step 3 = Invoke the ProcessPurchaseOrders.xaml file in the Main.xaml file and click Import Arguments

Step 4 = Pass the values of the arguments to/from the variables in the Main.xaml file

This sequence will ensure that the developer can create a reusable workflow, invoke it from the main workflow, and pass data between them using arguments.

Remote Debugging is a feature that allows you to debug a process that is running on a remote machine or robot from your Studio1. To use Remote Debugging, you need to have a Remote Machine Connection, which is a connection type that enables you to interact with a remote machine using its IP address and port number2. The prerequisite for performing Remote Debugging using a Remote Machine Connection is that TCP/IP connectivity exists between the Studio machine and the remote machine3. TCP/IP is a protocol that defines how data is transmitted and received over a network4. Without TCP/IP connectivity, the Studio machine cannot communicate with the remote machine and cannot debug the process.

Option A is incorrect because Studio and the remote robot do not need to be connected to the same Orchestrator tenant for Remote Debugging using a Remote Machine Connection5. Option B is incorrect because the same user does not need to be signed in Studio and the remote robot for Remote Debugging using a Remote Machine Connection. Option C is incorrect because Remote Debugging using a Remote Machine Connection does not require Studio, the remote robot, and Orchestrator to be running version 2021.10 or later. Remote Debugging using a Remote Machine Connection was introduced in version 2020.10.

To assign the first row of the “ID” column in the “DT” datatable to a String variable, the expression that should be added to the Value field of the Assign activity is:

DT.Rows(0).Item(“ID”)

This expression accesses the value of the “ID” column in the first row of the “DT” datatable using the Rows and Item properties. The Rows property returns a collection of DataRow objects that represent the rows in the datatable. The Item property returns or sets the value of the specified column in the DataRow object1. The expression uses the index 0 to refer to the first row in the Rows collection, and the column name “ID” to refer to the specific column in the Item property. The expression returns the value of the “ID” column in the first row as an Object type, which can be converted to a String type using the ToString method2. For example, if the “DT” datatable has the following values:

ID

Name

1

John

2

Mary

3

Bob

Then the expression DT.Rows(0).Item(“ID”) will return 1 as the value of the “ID” column in the first row.

Breakpoints are used in debugging to pause the execution of the project at specific activities, which may potentially cause execution issues, making option A correct. This allows developers to inspect the state of the application at that point, aiding in the identification and resolution of issues. Options B, C, and D do not accurately describe the purpose of breakpoints in the debugging process.

When an exception occurs inside a Try Catch block, the exception is caught in the Catches section.

If a Rethrow activity is used inside the Catch block, it rethrows the original exception, which means it is not handled and will propagate upwards.

Since the process is executed from Orchestrator, the robot does not handle the exception, causing the job to end in a Faulted state.

✅ Reference: UiPath Documentation – Try Catch and Rethrow

A valid way to install a custom activity package in UiPath Studio is to go to the Package Manager, click on "All Packages," search for the package you want to install, and click "Install". This allows you to add custom activities to your project from the managed packages available.

If the activity cannot find its target at runtime, an exception is thrown after 10 seconds. This is because the “ContinueOnError” property is set to “False” and the “DelayAfter” property is set to “10” seconds. The “ContinueOnError” property determines whether the automation should continue even when the activity fails, and the “DelayAfter” property specifies the amount of time (in milliseconds) to wait before moving to the next activity. (UiPath Automation Developer study guide)

The "Indicate in Excel" feature in UiPath simplifies interaction with Excel files by allowing users to visually select specific cells, ranges, or tables directly in the Excel interface. This helps ensure accuracy in selecting data sources for automation.

It eliminates the need to manually type cell addresses or range references, reducing errors.

The selected range is stored within the activity and can be used dynamically.

Works efficiently with modern Excel activities that support direct Excel file interaction.

✅ Reference: UiPath Official Documentation – Excel Modern Activities

UiPath Integration Service is a feature that enables you to integrate UI and API automation in a unified way. The three main components of UiPath Integration Service are:

Connectors: These are pre-built or custom components that provide access to various applications or systems through their APIs. You can use connectors to perform actions or retrieve data from different sources, such as Salesforce, Slack, Google Sheets, etc. (UiPath Integration Service documentation1)

Connections: These are configurations that store the authentication and connection details for each connector. You can create and manage connections in the UiPath Automation Cloud and share them across different folders and processes. (UiPath Integration Service documentation2)

Triggers: These are rules that define when and how to start a process in Orchestrator based on events from connectors. You can configure triggers to react to data changes, insertions, deletions, or custom events in the connected applications or systems. (UiPath Integration Service documentation3)

The Get Transaction Data state is responsible for retrieving the next transaction item to be processed from the queue in Orchestrator. The state will loop until there are no more items in the queue or an exception occurs. A linear process can be implemented with REFramework by using a single queue item that contains all the data required for the process. (UiPath ReFramework documentation1)

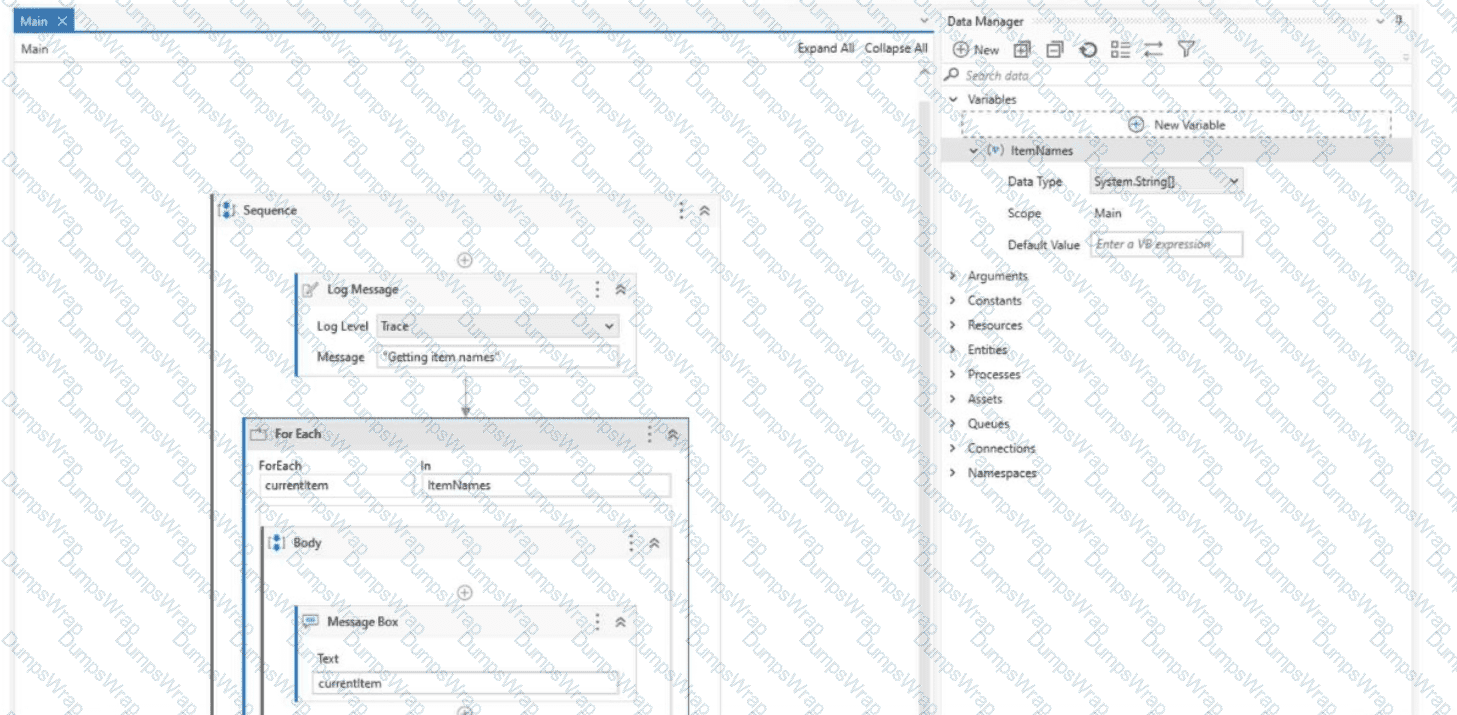

The workflow contains a For Each activity that iterates over the ItemNames variable. However, there is a key issue in the variable definition:

1. Understanding the Issue:

The ItemNames variable is declared as System.String(), which is an array of strings.

However, no default value has been assigned to ItemNames. This means the variable is Nothing (null) at runtime.

When the For Each activity attempts to iterate over a Nothing (null) array, an exception is thrown.

2. Why "ArgumentException" is Thrown?

The For Each loop requires a valid enumerable collection to iterate through.

If the collection is Nothing, UiPath will throw an ArgumentException because the input argument (i.e., the collection) is invalid.

The ArgumentException occurs when a method receives an argument that is not valid for its expected purpose.

In this case, the For Each loop expects an initialized array but receives Nothing, leading to an ArgumentException.

3. Why Not Other Options?

B. InvalidOperationException → This is usually thrown when an operation is not valid in the current state, but For Each expects an iterable object and does not throw this error.

C. BusinessRuleException → Business Rule Exceptions are used for process-specific validation errors, which do not apply here.

D. NullReferenceException → This occurs when you try to access a member of an object that is Nothing. However, For Each handles Nothing by throwing an ArgumentException, not a NullReferenceException.

4. Fixing the Issue:

To avoid this error, initialize the ItemNames variable before using it:

vb

CopyEdit

ItemNames = New String() {"Apple", "Banana", "Cherry"}

Or, check if the array is Nothing before the loop:

vb

CopyEdit

If ItemNames IsNot Nothing Then

For Each currentItem In ItemNames

' Process each item

Next

End If

Reference from UiPath Official Documentation:

Handling For Each Errors

Managing Null Values in UiPath

Comprehensive and Detailed In-Depth Explanation:

???? UiPath Marketplace is the official platform for sharing reusable automation components such as:

✔ Pre-built workflows

✔ Custom activities

✔ AI models

✔ Connectors and templates

Step-by-Step Execution Guide: Using UiPath Marketplace

1️⃣ Access UiPath Marketplace → UiPath Marketplace

2️⃣ Browse or Search for Components

Example: Search for "Excel Automation Activities"3️⃣ Download and Import into UiPath Studio

Install the component via Manage Packages.4️⃣ Use it in Your Workflow

Drag and drop the pre-built activity into your automation.

???? This saves development time and promotes best practices!

Real-World Use Case: Enhancing Automation with Pre-Built Solutions

???? Scenario:

A developer needs to integrate UiPath with Salesforce, but instead of coding from scratch:

✔ Searches "Salesforce Connector" in UiPath Marketplace.

✔ Installs the pre-built activity pack.

✔ Quickly connects UiPath to Salesforce APIs.

???? This accelerates automation development!

Why the other options are incorrect?

❌ A. UiPath Assistant – Used for running attended bots, not sharing automation components.

❌ C. UiPath Orchestrator – Used for managing robots and processes, not sharing workflows.

❌ D. UiPath Studio – A development tool, but it does not provide a marketplace.

✅ Reference:

UiPath Documentation: UiPath Marketplace

Comprehensive and Detailed In-Depth Explanation:

The role of an automation developer primarily revolves around building, testing, and deploying automation solutions. The Development and Unit Testing phase is the most significant stage where the developer creates and configures the automation workflow using UiPath Studio. Additionally, developers contribute significantly in:

Integration and UAT (User Acceptance Testing):

Ensuring the automation solution functions correctly by integrating with real-world applications and testing with business users.

Debugging and refining workflows based on user feedback.

Deployment and Hypercare:

Assisting with deployment in production environments.

Monitoring initial runs (Hypercare phase) to resolve any post-deployment issues.

✅ Reference:

UiPath Official Documentation: Software Development Life Cycle (SDLC) in RPA

UiPath Academy: RPA Implementation Methodology

A static selector is a selector that has fixed values for the attributes of the target element, such as name, id, class, etc. A static selector is appropriate to use when the target element’s attributes do not change during runtime, meaning they are always the same regardless of the state of the application or the environment. A static selector is more reliable and faster than a dynamic selector, as it does not require any variables or arguments to identify the target element. A static selector is not suitable for situations where the target element’s properties change frequently, such as when the element is generated dynamically, or when the automation requires high flexibility, such as when the element can have different names or ids depending on the input or output data. In those cases, a dynamic selector is preferred, as it can use variables or arguments to adjust the attribute values according to the changes in the target element. References: Dynamic Selectors, Selectors

When converting a Windows-Legacy project to Windows, the project dependencies are automatically updated to the highest available version that is compatible with the Windows target framework. This is done to ensure that the project can use the latest features and improvements of the activities packages, as well as to avoid potential issues or conflicts with the legacy versions. The updated dependencies are reflected in the project.json file and the Manage Packages window of the project. The developer can also manually update the dependencies to a specific version if needed.

Comprehensive and Detailed Explanation:

Access Controls (ACLs) in ServiceNow determine whether a user can read, write, or delete a record, field, or table.

For a user to pass an Access Control, all the following conditions must evaluate to true:

✅ Option A (Correct): The user must have one of the specified roles.

Access Controls often require users to have specific roles.

If a role is specified in an ACL’s Required Roles related list, a user must have that role to pass the check.

✅ Option C (Correct): Any script in the Access Control must evaluate to true.

ACLs can contain server-side scripts that execute logic to determine access.

Example:

javascript

CopyEdit

answer = current.state == "Approved";

This means access is only granted if the record’s state is "Approved".

✅ Option D (Correct): Conditions configured in the Access Control must evaluate to true.

ACLs allow conditions to be set without scripting.

Example:

"User must be the record’s creator" → Created by is (dynamic) Me

❌ Option B (Incorrect):

ACLs do not depend on other matching ACLs.

Each ACL is evaluated separately for a given operation.

❌ Option E (Incorrect):

Business Rules do not grant access.

They run scripts to enforce business logic but do not override ACLs.

Access Control Evaluation Order:

Table-level ACLs (e.g., can the user read/write to a whole table?)

Field-level ACLs (e.g., can the user read/write a specific field?)

The most specific ACL always wins.

Process Owner Email should be stored as an Orchestrator Asset because it changes infrequently (once per year). Assets are best suited for static or rarely changing values.

Employee ID should be stored in the Queue Item because each transaction is unique and needs to process different employee data.

Orchestrator Assets store global variables, while Queues manage dynamic data that changes per transaction.

✅ Reference: UiPath Documentation – Assets and Queues

The area selection feature in the UiPath Computer Vision wizard is used to refine the scope of the UI elements that are detected by the Computer Vision activities1. By using this feature, you can select a specific region of the application UI that you want to automate, and the wizard will only show the UI elements within that region. This is helpful when dealing with multiple fields bearing the same label, such as “Name” or “Address”, as you can select only the field that you want to interact with2. The selected area is not automatically resized, treated as a single UI element, or duplicated by the wizard.

The code is adding two items to the list, but since the list is initialized as an empty list, the count will be 0.

In UiPath best practices, to ensure that an action is executed regardless of any exceptions, you should place such steps in the "Finally" block of the Try Catch activity. The "Finally" block is designed to run after the "Try" and any "Catch" blocks have completed, whether an exception was thrown or not. This ensures that step 4 (closing the web browser) is executed even if exceptions occur in steps 2 (data scraping) or 3 (storing data in Microsoft Excel). Therefore, the correct answer is C.

The argument name that follows UiPath best practices for argument naming conventions is out_ConfirmationNumber. According to the UiPath best practices, the argument name should be meaningful and include an indication of its type and direction. The type can be inferred from the argument’s data type, such as String, Int32, DataTable, etc. The direction can be one of the following: in, out, or io. The in direction means that the argument can only be used within the given project. The out direction means that the argument can be used to pass data outside of a given project. The io direction means that the argument can be used both within and outside of a given project4. The argument name should also follow the camel case convention, which specifies that each word in the middle of the argument name begins with a capital letter, with no intervening spaces or punctuation5. For example, the argument name out_ConfirmationNumber follows these best practices, as it indicates that the argument is of out direction, and that it stores a confirmation number value. The other argument names do not follow the best practices, as they either use incorrect or inconsistent prefixes, or do not use camel case convention. References: ST-NMG-002 - Arguments Naming Convention and Variables, arguments and workflows naming - best practice from UiPath documentation and forum.

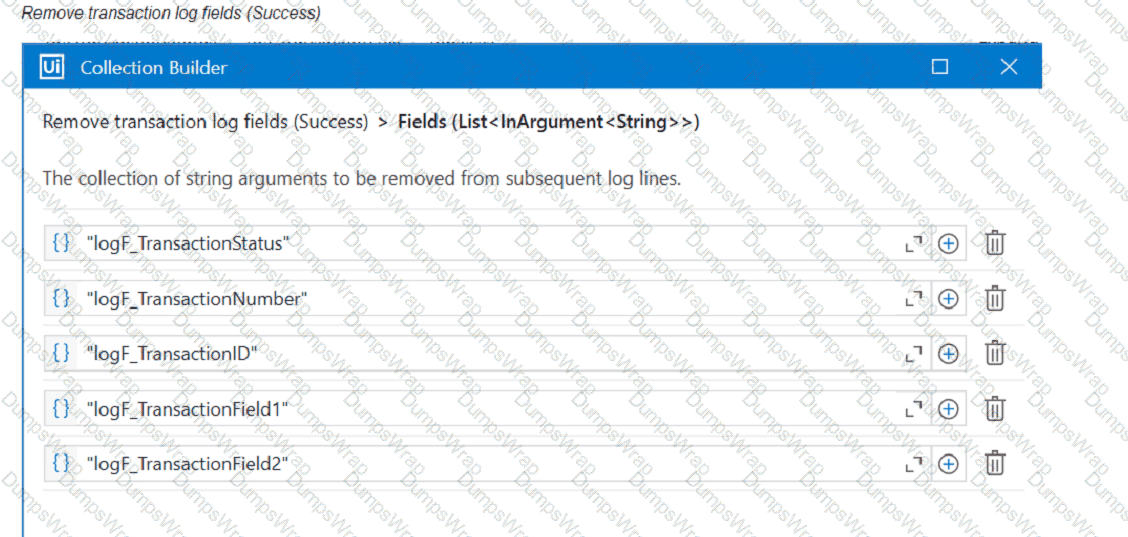

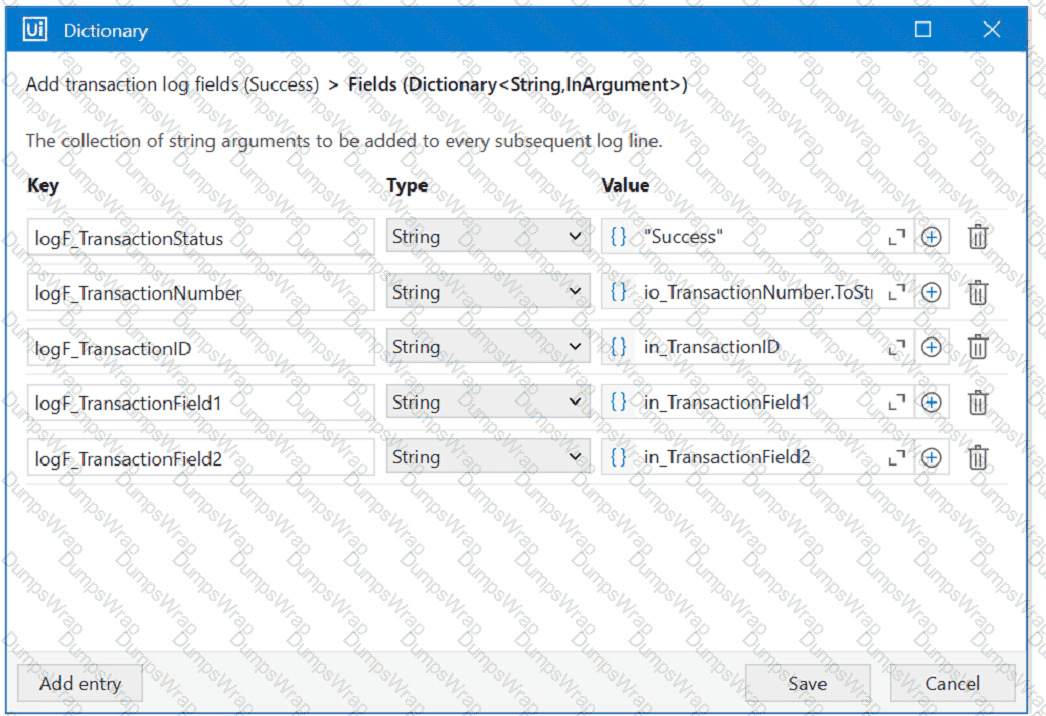

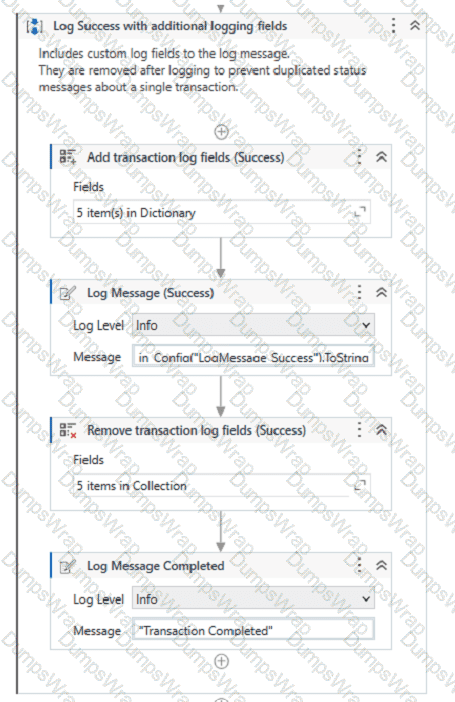

The Add Log Fields activity allows developers to create custom log fields that are added to the Robot Execution Logs. These custom log fields can be used to store and display additional information that is relevant to the automation process, such as transaction ID, invoice number, customer name, etc. The custom log fields can help to improve the traceability and analysis of the automation process, as well as to filter and group the logs based on specific criteria. (UiPath Automation Developer study guide)

The correct workflow name, based on best practices, is ScrapeFilteredStocks. This is because it follows the Pascal Case convention, which means that the first letter of each word is capitalized and there are no spaces or underscores between the words. This convention makes the workflow name easy to read and understand, as well as consistent with the UiPath standards. The other workflow names are incorrect because they either use lower case, snake case, or have no meaningful description. For example, Transactionstatus should be TransactionStatus, Workflow1 should be more descriptive, and creation_of_file should be CreationOfFile.

The output panel will display “Hello World” because the workflow is designed to first display “Hello” and then “World” in the output panel. The workflow starts with an Assign activity that initializes the Boolean flag to True. Then, the While activity checks if the flag is True. If it is, the workflow enters the Body section of the While activity. Inside the Body section, the workflow checks if the flag is True. If it is, the workflow enters the Then section of the If activity and displays “Hello” in the output panel. Then, the Assign activity sets the flag to False. Since the flag is now False, the workflow enters the Else section of the If activity and displays “World” in the output panel. Finally, the workflow exits the While activity since the flag is now False.

The Try Catch activity is used to handle errors and exceptions that may occur during the execution of a workflow1. It has three sections: Try, Catches, and Finally1.

The Try section contains the activities that may throw an exception or an error. If an exception or an error occurs, the execution of the Try section is stopped and the control is passed to the Catches section1.

The Catches section contains one or more exception handlers that specify what type of exception or error to catch and what actions to perform when it is caught. The exception handlers are executed in order, from top to bottom, until a matching exception or error is found. If no matching exception or error is found, the execution of the workflow is stopped and a runtime error is thrown1.

The Finally section contains the activities that are always executed at the end of the Try Catch activity, regardless of whether an exception or error occurred or not. The Finally section is used to perform cleanup actions, such as closing applications, releasing resources, or logging messages1.

In your case, you have configured the properties for the Try Catch activity as follows:

The Try section contains a Throw activity with an ApplicationException.

The Catches section contains an InvalidOperationException with a Message Box activity and a Log Message activity.

The Finally section is empty.

This means that the Try Catch activity will throw an ApplicationException in the Try section and look for a matching exception handler in the Catches section. However, since you have chosen InvalidOperationException as the exception handler, which does not match the ApplicationException, the execution of the workflow will be stopped and a runtime error will occur. The Finally section will not be executed.

Therefore, option B is correct.

The main difference between an array and a list in UiPath (and .NET in general) is that an array is a fixed-size collection of elements of the same type, whereas a list is a dynamic-sized collection, meaning it can grow or shrink in size as needed. Both arrays and lists hold elements of the same type, but lists offer more flexibility in terms of adding or removing elements after the collection has been created.

If a process is accidentally started from UiPath Assistant, the user should manually terminate the execution from the "Jobs" tab in UiPath Assistant. This tab shows the list of running processes, where the user can stop the unintended process.

The Watch Panel in UiPath Studio allows developers to monitor specific expressions or variable values during Debug Mode.

Why is D Correct?

✅ Watch Panel:

Allows tracking of expressions and variable values in real time.

Helps in evaluating conditions like Var1 > Var2 while debugging.

Enables custom variable monitoring, making it useful for complex workflows.

Comprehensive and Detailed In-Depth Explanation:

In UiPath, when dealing with date manipulations, the DateTime.ParseExact() method is the most reliable way to convert a string representation of a date into a DateTime object.

Why is option A correct?

vb

CopyEdit

DateTime.ParseExact(ExtractedDate, "dd-MM-yyyy", System.Globalization.CultureInfo.InvariantCulture)

ParseExact() takes three arguments:

ExtractedDate: The string to be converted.

"dd-MM-yyyy": The exact format of the date string.

System.Globalization.CultureInfo.InvariantCulture: Ensures that the conversion works regardless of regional settings.

This correctly parses the string into a DateTime object, allowing for accurate comparisons and manipulations.

Why the other options are incorrect?

❌ B. ExtractedDate.GetType

This returns the type of ExtractedDate, not its value. It does not convert it to DateTime.

❌ C. DateTime.Compare(ExtractedDate, "08-22-2022", System.Globalization.CultureInfo.InvariantCulture)

The DateTime.Compare() function compares two DateTime objects, but ExtractedDate is a string, so it will throw an error.

❌ D. ExtractedDate.Equals("08-22-2022", System.Globalization.CultureInfo.InvariantCulture)

This compares two string values but does not convert ExtractedDate into a DateTime object.

✅ Reference:

UiPath Documentation: Date and Time Manipulation

UiPath Academy: Data Manipulation in UiPath

Source control in UiPath Studio, particularly with GIT integration, allows users to track changes and view the history for all versions of a file within a Studio project. This is a crucial feature for understanding the development and changes made over time, making option B correct. It is not possible to connect the files in a single Studio project to different GIT remote repositories (option A) or multiple GIT remote repositories at the same time (option D). Analyzing each file before publishing a package is not a characteristic of source control but part of the publishing process.

The main difference between UiPath Studio and UiPath StudioX is their target audience and functionality. UiPath Studio is aimed at technical users and allows for complex automation development, including the ability to split automations into smaller workflows that can be invoked from within other workflows. On the other hand, StudioX is designed for non-technical business users to automate tasks without writing code, and while it does allow for simpler workflows, it does not have the same depth of functionality as Studio for modularizing workflows.

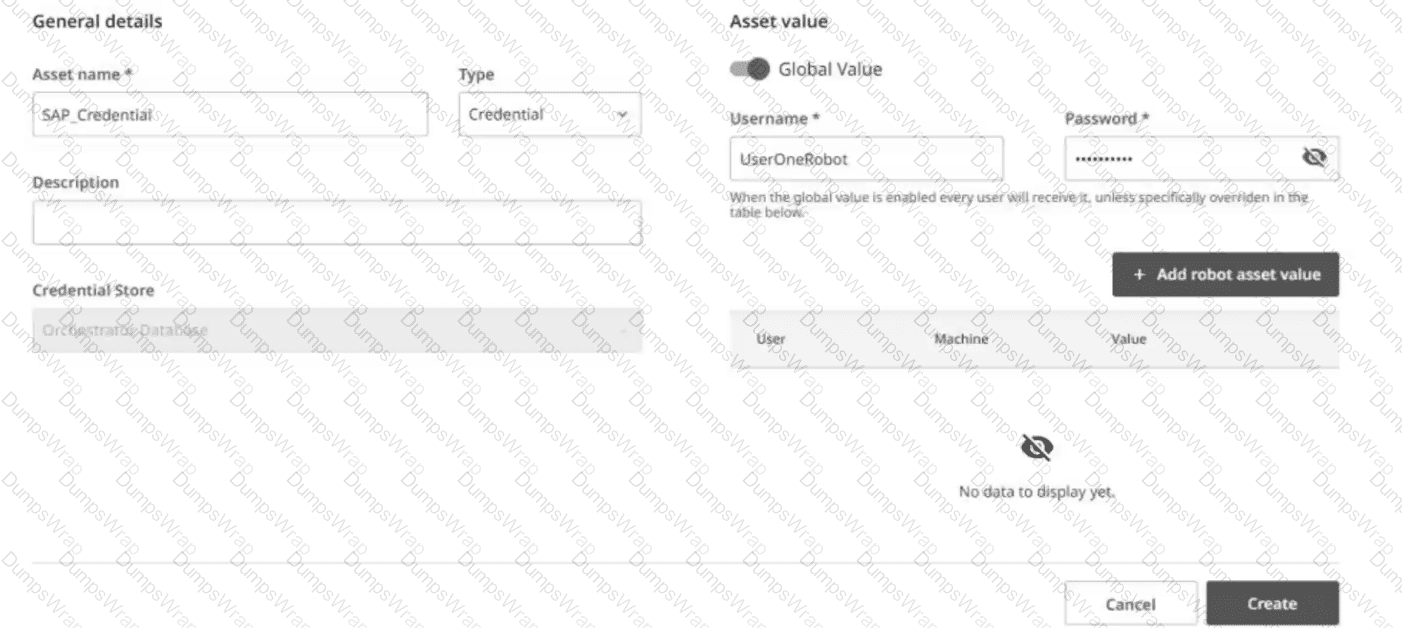

In Orchestrator, when a Credential asset is created and the username value is changed, the password must also be changed to ensure that the credential set remains valid. The username and password are linked as they represent the credential pair used for authentication. Changing one without the other would result in mismatched credentials that cannot be used for logging in to the system that these credentials are associated with. Therefore, the correct answer is D.

Comprehensive and Detailed Explanation:

In ServiceNow, Application Access settings determine which operations external applications can perform on a table within a Scoped Application.

The primary database operations that can be controlled through Application Access settings are:

✅ Update (Option C - Correct)

✅ Query (Option D - Correct)

Option A (Create) (Incorrect):

The Application Access settings do not explicitly control record creation. Create permissions are typically managed through Access Control Lists (ACLs) rather than Application Access settings.

Option B (Execute) (Incorrect):

"Execute" is not a valid database operation for Application Access. Execution privileges typically apply to scripted APIs or background scripts rather than database operations.

Example: Controlling Application Access on a Table

In the Table Configuration, under Application Access, you can enable or disable:

✔ Allow access to this table from other applications

✔ Can read (Query)

✔ Can update

✔ Can delete

These settings restrict or allow other applications to perform query and update operations on the table's records.

Understanding the Read Range Activity Configuration:

The Read Range Workbook activity is configured as follows:

Range: "A1:B2"

Sheet Name: "Sheet1"

Headers Option: Unchecked (This means the first row will not be treated as column headers).

The Excel file "Text.xlsx" contains 10,000 rows, but the specified range only covers A1 to B2, meaning only two rows of data will be read.

Behavior of Read Range Workbook When "AddHeaders" Is Unchecked:

When "AddHeaders" is unchecked, all data in the range is considered part of the data table, including what would normally be treated as column headers.

Since the range is "A1:B2", the extracted data includes:

Row 1 → A1, B1

Row 2 → A2, B2

Since the extracted data is treated without headers, the DataTable starts with A1 and B1 as the first row and A2 and B2 as the second row.

Determining OutputDataTable.Rows.Count

The Read Range Workbook activity reads both rows (A1:B1 and A2:B2).

Since headers are not considered, both rows are stored as data in the DataTable.

OutputDataTable.Rows.Count = 2.

✅ Corrected Output:

OutputDataTable.Rows.Count = 2

DataTable Contains:

Row 1: [A1, B1]

Row 2: [A2, B2]

Why the Correct Answer Is "A" and Not Others:

A (OutputDataTable.Rows.Count = 1, Contains A2 and B2) → ✅ Correct if the range was "A2:B2" (Only one row read).

B (OutputDataTable.Rows.Count = 10,000) → ❌ Incorrect. The range only selects two rows, not the entire sheet.

C (OutputDataTable.Rows.Count = 2, Contains A2 and B2) → ❌ Incorrect. If the row count is 2, the data would include A1 and B1 too.

D (OutputDataTable.Rows.Count = 1, Contains A1 and B1) → ❌ Incorrect because two rows were extracted, not one.

UiPath prevents publishing workflows that contain validation errors because they would cause execution failures.

The Studio Validation tool ensures workflows are error-free before deployment.

If validation errors exist, publishing is blocked until all errors are resolved.

✅ Why other options are incorrect:

A: The process won’t be published at all if validation errors exist.

B: UiPath does not automatically set "ContinueOnError" to resolve validation errors.

C: The process won’t appear in Assistant because publishing is prevented.

✅ Reference: UiPath Studio - Validation Errors

The Verbose logging level includes all the information that is logged by the other levels, plus the values of the variables and arguments that are used in the process1. By default, the Verbose level includes the following log entries2:

Execution Started

Execution Ended

Transaction Started

Transaction Ended

Activity Information

Arguments and Variables Information

A DataTable variable is a data structure that can store and manipulate tabular data in UiPath. A DataTable variable has rows and columns that correspond to the rows and columns of the tabular data source, such as an Excel or CSV file. A DataTable variable can be used to store the input data for a REFramework transactional project, where each row represents a transaction item. The REFramework template can be modified to use a DataTable variable as the TransactionItem type and to process each row in the GetTransactionData and ProcessTransaction workflows. Using a DataTable variable is the recommended approach for handling tabular data when building a REFramework transactional project in UiPath, because it is efficient, flexible, and easy to use. (UiPath ReFramework documentation1)

The UiPath Remote Runtime component is a component that enables the communication between a remote application or desktop, such as Citrix Virtual Apps, and the dedicated UiPath extension, such as the UiPath Extension for Citrix or the UiPath Extension for Windows Remote Desktop. It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension, so that selectors can be natively generated in UIExplorer1. This way, you can create and manage tasks and exchanges between users and external applications using the authentication process of the API provider2. The UiPath Remote Runtime component is required to establish the connection between an application or desktop server and a corresponding UiPath extension installed on a client machine, without having to rely on OCR and image recognition activities3.

The Where method is used to filter data in a List or Data Table based on a condition. It returns a new collection that contains only the elements that satisfy the condition12. The other methods are used for different purposes: OrderBy for sorting, GroupBy for grouping, and Select for projecting3.

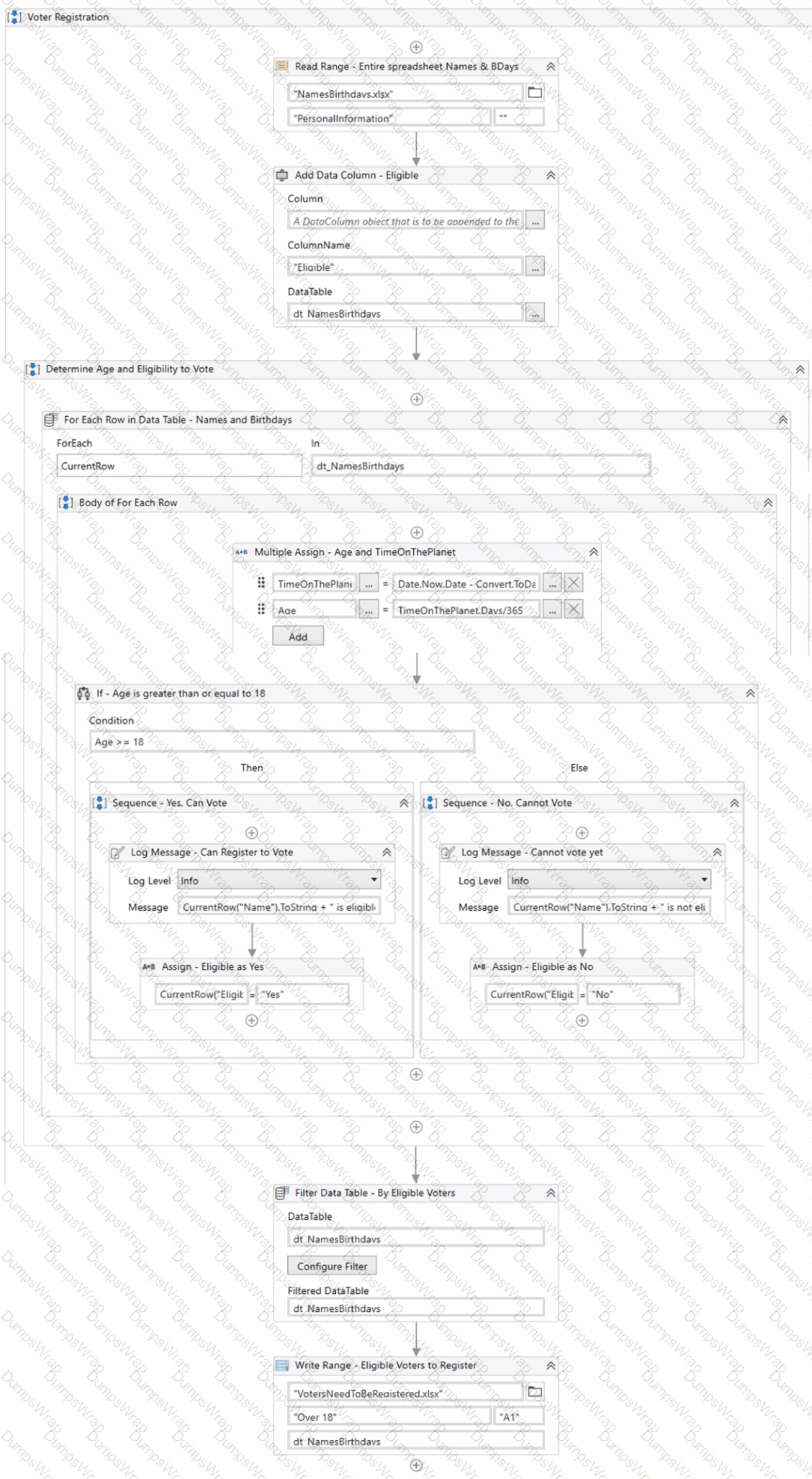

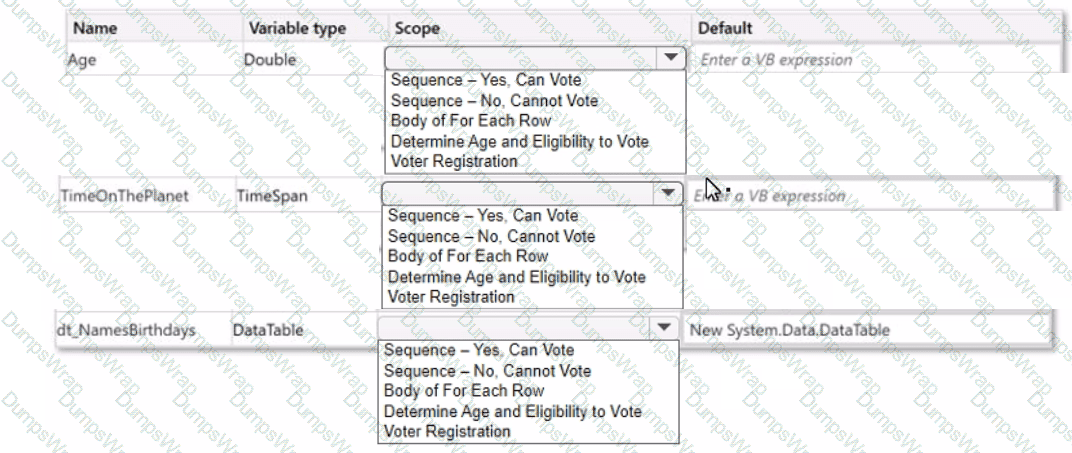

Name = Age Variable type = Double Scope = Body of For Each Row

Name = TimeonThePlanet Variable type = Time Span Scope = Sequence - Yes, Can Vote

Name = dt_NamesBirthdays Variable type = DataTable Scope = Voter Registration

The reason for choosing these scopes is to keep the variables in the innermost scope where they are used and to avoid unnecessary clutter and duplication in the Variables panel. You can learn more about variable scope in UiPath from the following sources:

Variable scope - Studio - UiPath Community Forum

How Variable Scope Works in UiPath - Video Tutorials - UiPath Community Forum

How to pass variables as UiPath arguments example - TheServerSide

Best Practices: Select Variables scope - UiPath Community Forum

In the Output property of all Get Mail activities, the supported variable type is List. The Output property is the property that stores the result of the activity in a variable. The Get Mail activities are the activities that retrieve email messages from various mail servers, such as POP3, IMAP, Outlook, or Exchange. The result of the Get Mail activities is a collection of email messages that match the specified criteria, such as the mail folder, the filter, or the top count. The collection of email messages is represented by the List type, which is a generic list that contains MailMessage objects. A MailMessage object is a class that represents an email message, with properties such as Subject, Body, Attachments, From, To, etc1. For example, if the Get Mail activity is used to retrieve the email messages from the Inbox folder of an Outlook account, the Output property can be configured with a variable of type List, such as mailList. The mailList variable will store the email messages as a list of MailMessage objects, which can then be accessed or manipulated using other activities, such as For Each, Save Attachments, or Send Mail2.

The Object Repository tree structure shows one application with two screens and five UI elements. The application is the top-level node, the screens are the second-level nodes, and the UI elements are the third-level nodes. The UI elements have properties, selectors, and images that define them.

The method:

Convert.ToBoolean(IntVar)

Converts an integer to a Boolean using .NET conversion rules:

0 → False

Any non-zero value (e.g., 1, 2, -3, etc.) → True

Why is Option B Correct?

Since IntVar = 1, Convert.ToBoolean(1) returns True.

This follows standard .NET conversion logic.

Example Execution:

Log Message = Convert.ToBoolean(1)

Output:

True

Why Other Options Are Incorrect?

A (False is displayed) ❌

Incorrect. Only 0 converts to False.

C (System.ArgumentNullException) ❌

Incorrect. This exception occurs when passing null, but IntVar has a valid integer.

D (System.InvalidCastException) ❌

Incorrect. Convert.ToBoolean(Int32) is a valid conversion in .NET.

The difference between "Workbook Write Range" and "Excel Application Integration Write Range" activities is that the "Excel Application Integration Write Range" (also known as "Excel Write Range") activity can execute correctly even if the Excel file is already opened by the user before running. It interacts with Excel as an application, making it visible and allowing for interaction with the Excel interface. On the other hand, the "Workbook Write Range" activity works in the background, does not require Excel to be installed, and will create the Excel file in the specified path if it does not exist. So, the correct answer is D.

✅ Reference:

UiPath Documentation: Debugging Workflows

The Robotic Enterprise Framework (REF) is a template that provides a structured and consistent way to develop automation processes. The REF uses an Orchestrator queue to store and process the transaction items, which are the units of work for the process. The REF also handles different types of exceptions that may occur during the execution of the process, such as system exceptions and business exceptions. A system exception is an error that prevents the normal execution of the process, such as a network failure or an application crash. A business exception is an error that is related to the business logic or rules of the process, such as an invalid input or an incorrect output. The REF has different mechanisms to deal with these exceptions, such as retrying, logging, and updating the status of the transaction items.

The MaxRetryNumber from the “Config.xlsx” file is a parameter that specifies how many times the REF will retry a transaction item when a system exception occurs. The Max # of retries from the Queue settings from Orchestrator is a parameter that specifies how many times Orchestrator will retry a transaction item when it changes to Failed status due to any exception. These two parameters are independent of each other and have different effects on the retry mechanism.

In this case, the first transaction item throws a business exception, which means that there is something wrong with the data or the logic of the process. The REF will not retry a transaction item when a business exception occurs, because it assumes that retrying will not solve the problem. Instead, the REF will log the exception, update the status of the transaction item to Failed, and move on to the next transaction item. Orchestrator will also not retry a transaction item when it changes to Failed status due to a business exception, because it respects the decision of the REF. Therefore, the transaction will not be retried at all.
