In UiPath Integration Service, a trigger will be automatically disabled upon failure under specific conditions to prevent continuous failure and unnecessary resource consumption. This typically happens when the job associated with the trigger fails to start after a predefined number of attempts for a single event, or when it consistently fails to start across a series of events. The condition of failing to start after 3 attempts for a single event or not starting for the last 25 events is designed to safeguard against persistent issues that could disrupt the automation flow or lead to resource wastage.References:

UiPath Integration Service Documentation: Triggers and Events

Converting a process into a background process in UiPath is accomplished by ensuring the process does not contain UI interaction and setting the "Starts in Background" toggle to Yes in the Project Settings. This is crucial for processes meant to run without user interface interaction.

A state machine is a type of automation that uses a finite number of states in its execution. It can go into a state when it is triggered by an activity, and it exits that state when another activity is triggered. Another important aspect of state machines are transitions, as they also enable you to add conditions based on which to jump from one state to another. These are represented by arrows or branches between states.

The Final State activity is a state machine specific activity that ends a state machine cycle. This activity contains an Entry area which holds the activities that are to be performed when the state is entered. A state machine must have one initial state and one or more final states.

The Final State activity should be used in the project when marking the successful completion or termination of a state machine’s execution. This means that the automation has reached its desired outcome or encountered an unrecoverable error, and no further actions are required. The Final State activity can also be used to perform some cleanup or logging activities before ending the state machine.

The other options are not circumstances when the Final State activity should be used in the project. Option A is incorrect, because an intermediary state can have multiple possible transitions, but it does not end the state machine cycle. Option B is incorrect, because a particular state can contain complex conditional logic, but it does not end the state machine cycle. Option C is incorrect, because the initial state is the first state of a state machine, not the final state.

References: Activities - Final State - UiPath Documentation Portal, Studio - State Machines - UiPath Documentation Portal, [State Machine Activity Designer - Microsoft Docs]

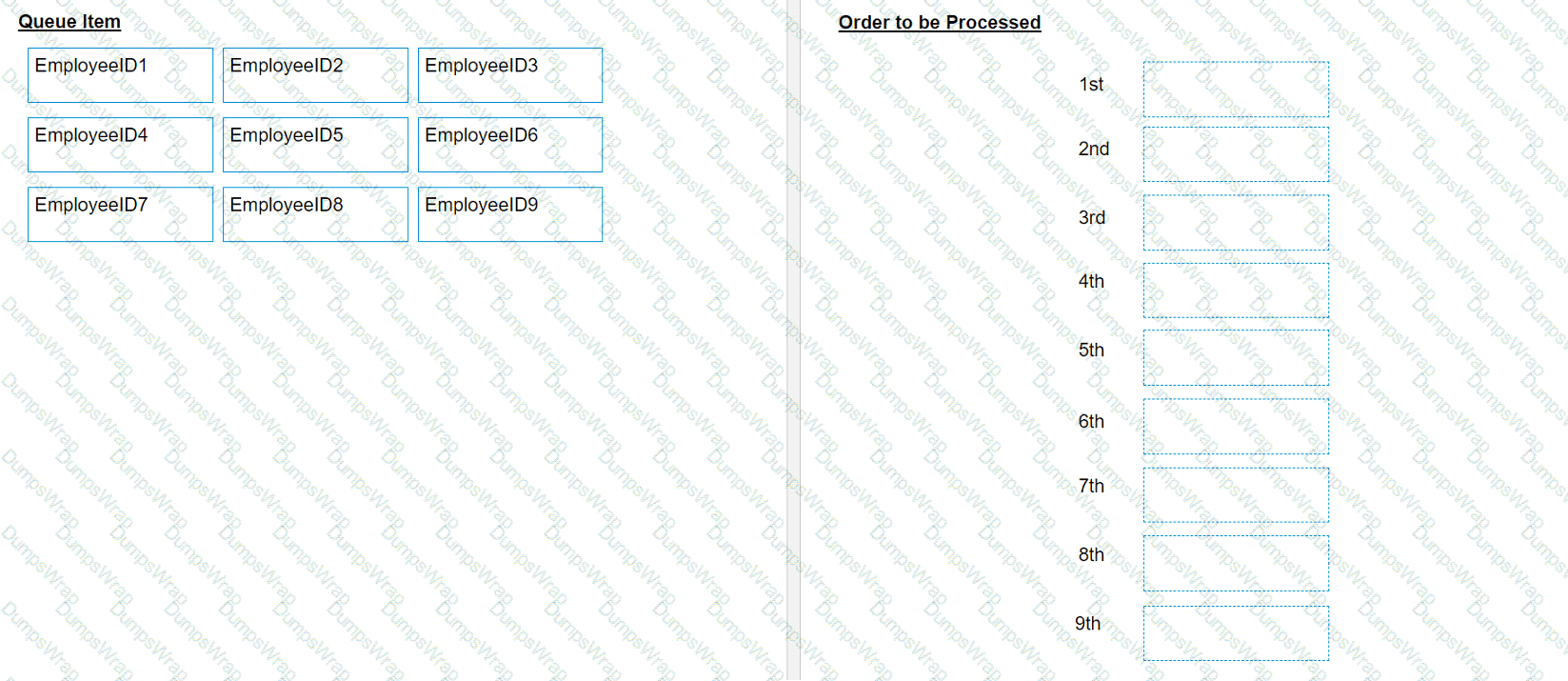

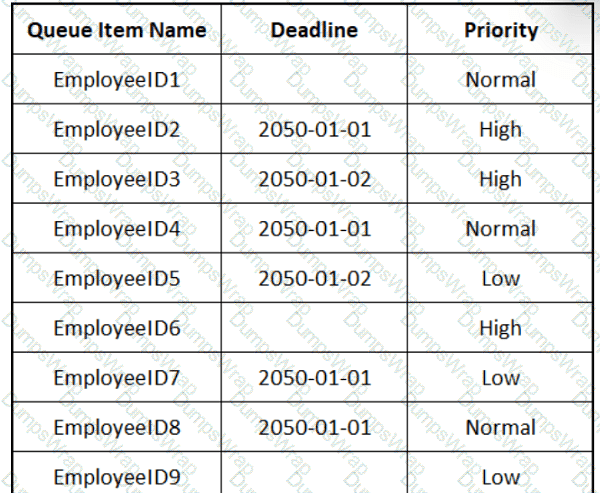

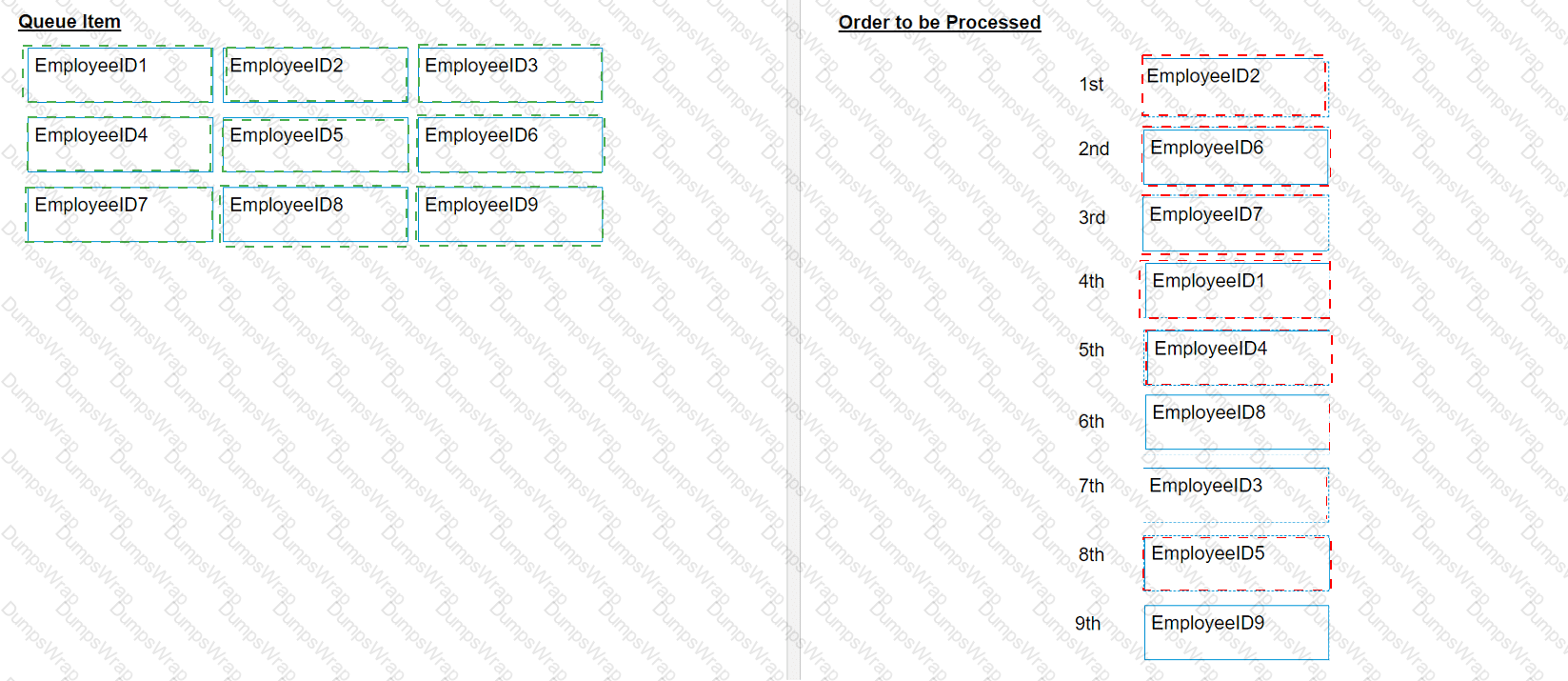

The use of job priorities in unattended automations within UiPath Orchestrator is to determine which processes should be executed first when dealing with multiple jobs. Job priorities are values that can be assigned to jobs or triggers when they are created or edited. The possible values are High, Normal, and Low. Job priorities affect the order in which the jobs are executed by the robots, with higher priority jobs being executed before lower priority jobs. Job priorities can help you to optimize the execution of your unattended automations, especially when you have limited resources or time-sensitive processes. You can also use job priorities to create job dependencies that must be completed before new job execution, by using the Start Job activity with the Wait for completion option and setting the priority of the child job to High. References: [Job Priority], [Start Job]

In the REFramework, the Add Log Fields activity is used to append additional information to the log messages. This information is stored in the form of custom fields. In this scenario, Add Log Fields (Success) activity is adding several fields with the transaction details whenever a transaction is successful.

The Remove Log Fields activity is then used to delete these custom fields to prevent them from appearing in subsequent log messages. This is important to ensure that only relevant information is logged for each transaction and to avoid cluttering the logs with outdated information.

When the Log Message Completed activity is executed after the Remove Log Fields activity, it should log the message without the additional fields that were added by the Add Log Fields activity since they have been removed. This means that the log message should only include the standard fields like message, level, logType, timeStamp, fileName, processVersion, jobId, robotName, and machineId, without the custom fields like logF_TransactionStatus, logF_TransactionNumber, etc.

Based on the options provided and the understanding of the REFramework's logging mechanism, the correct answer should be:

D. { "message": "Transaction Completed", "level": "Information", "logType": "User", "timeStamp": "10:30:19", "fileName": "SetTransactionStatus", "processVersion": "1.0.0", "jobId": "f8a36a46-8ebc-40df-8f71-26b39087ebee", "robotName": "test.robot", "machineId": 0, "logF_BusinessProcessName": "Framework" }

This option is correct because it shows a log message after the removal of custom fields, retaining only the logF_BusinessProcessName field, which wasn't specified to be removed according to the provided information.

Given the two data tables DT1 and DT2, to achieve the desired result where DT2 contains both the department and the names, the Merge Data Table activity should be configured to merge DT1 into DT2. This configuration requires specifying DT1 as the source table and DT2 as the destination table. The MissingSchemaAction should be set to AddWithKey which ensures that if the source table (DT1) contains columns that are not found in the destination table (DT2), they will be added to the destination table with the primary key information preserved.

Option A shows the correct configuration for the Merge Data Table activity to achieve this result:

Destination: DT1

Source: DT2

MissingSchemaAction: AddWithKey

This setup correctly adds the "Name" column from DT1 to DT2 based on the shared "ID" column, which acts as the key. Since both tables have an "ID" column with matching values, the names will be added to the corresponding IDs in DT2, resulting in a merged table with ID, Department, and Name columns.

The current state of the job in Orchestrator is Faulted, because an error occurred during the Initialization state of the process using REFramework. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type1. The Initialization state is the first state in the REFramework, which is responsible for initializing the application, reading the configuration file, and setting the log level2. If an error occurs during the Initialization state, the process will go to the End Process state, which will perform the final actions and close the application2. The End Process state will also mark the job as Faulted in Orchestrator, if the value of the ShouldMarkJobAsFaulted argument is True2. The default value of this argument in the REFramework is True, unless it is changed in the Config.xlsx file or in the Orchestrator assets3.

Option A is incorrect, because the job is not Successful, as an error occurred during the Initialization state. Option C is incorrect, because the job is not Suspended, as the process did not pause or wait for any user input. Option D is incorrect, because the job is not Stopped, as the process did not encounter any user intervention or manual termination.

References: 1: State Machine 2: The UiPath ReFramework 3: ShouldMarkJobAsFaulted Argument

In the BDD (Behavioral-Driven Development) template structure, the "Setup" part of a test case supports the Surround with mock feature. This section is used to set up the testing environment, including mock configurations.

In a UiPath REFramework project, the primary purpose of using Custom Log Fields is to add specific contextual information to log messages that are relevant to the automation process. Custom Log Fields are created using the Add Log Fields activity, which adds custom log fields to the Robot Execution Logs. The new log fields created via this activity are added for every Log Message execution throughout the entire workflow, unless a Remove Log Fields activity is used. Custom Log Fields can help you to maintain contextual insights within log messages, such as the business process name, the transaction data, the transaction status, or any other information that can help you to monitor, analyze, or debug the automation process. Custom Log Fields can also enhance the readability and consistency of log messages, as well as facilitate log filtering and reporting.

AI Computer Vision is a feature of UiPath that enables the automation of remote applications or desktops, such as Citrix Virtual Apps, Windows Remote Desktop, or VMware Horizon, by using native selectors. Native selectors are expressions that identify UI elements reliably and accurately, without relying on OCR or image recognition activities1. AI Computer Vision uses a mix of AI, OCR, text fuzzy-matching, and an anchoring system to visually locate elements on the screen and interact with them via UiPath Robots, simulating human interaction2. AI Computer Vision is especially useful for scenarios where the UI elements have low quality or scaling issues, which make them difficult to recognize with traditional methods3.

Option A is an accurate example of using AI Computer Vision features in a UiPath project, because it involves identifying and interacting with UI elements in a remote desktop application, which is one of the main use cases of AI Computer Vision. By using the Computer Vision activities, such as CV Screen Scope, CV Click, CV Get Text, etc., you can automate tasks in a remote desktop application without using selectors, OCR, or image recognition activities4.

The other options are not accurate examples of using AI Computer Vision features in a UiPath project, because they involve tasks that are not related to the automation of remote applications or desktops, or that do not use the Computer Vision activities. For example:

Option B involves training a custom machine learning model, which is not a feature of AI Computer Vision, but of the UiPath AI Fabric, a platform that enables you to deploy, consume, and improve machine learning models in UiPath.

Option C involves extracting plain text from a scanned PDF document, which is not a feature of AI Computer Vision, but of the UiPath Document Understanding, a framework that enables you to classify, extract, and validate data from various types of documents.

Option D involves performing sentiment analysis on a text string, which is not a feature of AI Computer Vision, but of the UiPath Text Analysis, a set of activities that enable you to analyze the sentiment, key phrases, and language of a text using pre-trained machine learning models.

References:

1: Studio - About Selectors - UiPath Documentation Portal 2: AI Computer Vision - Introduction - UiPath Documentation Portal 3: The New UiPath AI Computer Vision Is Now in Public Preview 4: Activities - Computer Vision activities - UiPath Documentation Portal : [AI Fabric - Overview - UiPath Documentation Portal] : [Document Understanding - Overview - UiPath Documentation Portal] : [Text Analysis - UiPath Activities]

The Check App State activity is specifically designed for UI synchronization. It checks the state of a UI element, ensuring that subsequent actions are performed when the UI element is in the desired state.

 The Global Exception Handler is a type of workflow that determines the project’s behavior when encountering an execution error. It has two arguments that are provided by default and should not be removed. They are:

errorinfo: This argument has the “In” direction and it stores information about the error that was thrown and the workflow that failed. It can be used to log the error details, get the name of the activity that caused the error, or count the number of retries1.

result: This argument has the “Out” direction and it is used to specify the next action of the process when it encounters an error. It can have one of the following values: Continue, Ignore, Retry, or Abort. These values determine whether the exception is re-thrown, ignored, retried, or stops the execution1.

The other options are not correct, because they either have the wrong direction for the arguments, or they use the “In/Out” direction, which is not valid for the Global Exception Handler arguments1.

References:

1: Studio - Global Exception Handler - UiPath Documentation Portal

The queue that will be consumed by the robot is QueueB from FolderA. This is because the arguments passed from Orchestrator have priority over the settings from the Config file. Therefore, the value of in_OrchestratorQueueName overrides the value of OrchestratorQueueName, and the value of in_OrchestratorQueueFolder overrides the value of OrchestratorQueueFolder. However, since the value of in_OrchestratorQueueFolder is empty, the default folder where the process is published is used, which is FolderA1.

The other options are not correct, because they do not reflect the values of the arguments passed from Orchestrator. For example:

Option A is incorrect, because the queue name is QueueA, not QueueB.

Option B is incorrect, because the queue folder is Shared, not FolderA.

Option D is incorrect, because the queue folder is Shared, not FolderA.

References:

1: Studio - REFramework Configuration - UiPath Documentation Portal

A screenshot of a computer program Description automatically generated

To align with UiPath's best practices when updating the REFramework template for use with Orchestrator queues, the sequence of steps should ensure proper setup of the queues in Orchestrator, configuration of the project to interact with these queues, and implementation of the business logic to process items from the queues.

Here's how the steps should be sequenced:

Step 1: Create the queue in Orchestrator and set its Auto Retry value as required by the process documentation.This step ensures that the queue is available in Orchestrator with the correct settings before the automation attempts to interact with it.

Step 2: Edit the project's configuration file (Data/Config.xlsx) and configure parameters OrchestratorQueueName and OrchestratorQueueFolder.Once the queue is created, the next step is to ensure that the automation project is configured to reference the correct queue and folder within Orchestrator.

Step 3: Edit GetTransactionData.xaml workflow and assign a proper value for the out_TransactionID argument.This configuration allows the workflow to correctly fetch transaction items from the Orchestrator queue for processing.

Step 4: Edit workflow Process.xaml and implement the logic to process each TransactionItem.Finally, the core processing logic that operates on each queue item is implemented, allowing the automation to perform the necessary actions for each transaction.

After running any REFramework test case, the possible statuses are "PASS" or "FAIL". These indicate whether the test case succeeded or encountered an issue, respectively.

When the data is not accessible, the created table displays only the header row, and processing for that client must be halted, a BusinessRuleException occurs. A BusinessRuleException is a type of exception that indicates a business logic error or a validation error that cannot be resolved by retrying the transaction. For example, if the input data is incorrect, incomplete, or outdated, a BusinessRuleException should be thrown. A BusinessRuleException can be thrown by using the Throw activity with the following expression:

VB New BusinessRuleException(“Message”) where Message is a string that describes the error. A BusinessRuleException can be caught by using the Catch activity with the following expression:

VB ex As BusinessRuleException where ex is a variable that stores the exception object. A BusinessRuleException can be handled differently from other types of exceptions, such as SystemException or ApplicationException, depending on the logic of the automation. For example, in the REFramework, a BusinessRuleException sets the status of the transaction item to Failed and does not retry the transaction, whereas a SystemException sets the status of the transaction item to Retry and retries the transaction up to a specified number of times. References: [BusinessRuleException], [Throw], [Catch], [REFramework]

Comprehensive and Detailed Explanation: Remote Debugging is a feature of UiPath Studio that allows developers to run and debug automation projects on robots deployed to remote machines, including on Linux robots that can run cross-platform projects1. It enables developers to connect to the remote robot using either a remote machine connection or an unattended robot connection, and then use the Studio debugging tools to inspect the execution and troubleshoot any issues1. Remote Debugging uses a web-based interface that shows the UI elements and the data of the remote machine, as well as the breakpoints, variables, and output of the project2.

The other options are incorrect because:

Option A is incorrect because Remote Debugging is not limited by the involvement of Orchestrator queues and assets in the automation project. Remote Debugging can work with any project that can be executed by a robot on a remote machine, regardless of the Orchestrator entities used1.

Option B is incorrect because Remote Debugging does not enable developers to design new UI elements for the automation project. Remote Debugging is only used for testing and debugging existing projects, not for creating or modifying them1.

Option C is incorrect because Remote Debugging does not refer to the process of testing and debugging an automation project on the same machine where UiPath Studio is installed. That process is called Local Debugging, which is the default debugging mode in Studio3.

References:

Studio - Remote Debugging - UiPath Documentation Portal

Remote Debugging in UiPath Studio - Video Tutorials - UiPath Community Forum

Studio - Debugging Actions - UiPath Documentation Portal

The type of error that should be thrown according to best practices for queue items that contain partial numbers is Business Exception. A Business Exception is an exception that occurs due to an incorrect or incomplete input data or an expected business rule violation. A Business Exception indicates that the transaction item cannot be processed successfully and should be marked as failed in the queue. A Business Exception can be thrown by using the Throw activity in UiPath Studio, with the exception type set to UiPath.Core.BusinessRuleException. Alternatively, a Business Exception can be thrown by using the Set Transaction Status activity in the REFramework, with the status set to Failed and the exception type set to Business Exception. References: [Business Exception vs Application Exception], [Throw], [Set Transaction Status]

In UiPath Orchestrator, the Job Priority Levels feature allows operators to assign priority to jobs in a queue, thereby dictating their execution sequence based on their importance.

The states that will be executed without errors when a developer runs a process using the REFramework, with the process utilizing Orchestrator queues and a queue already created with the Name provided and the Auto Retry function disabled, are Initialization, Get Transaction Data, Process Transaction, and End Process. The REFramework is a template that provides a robust and scalable structure for building automation processes. The REFramework consists of four main states: Initialization, Get Transaction Data, Process Transaction, and End Process. The Initialization state is responsible for initializing the application, reading the configuration file, and logging in to the Orchestrator. The Get Transaction Data state is responsible for fetching the next transaction item from the Orchestrator queue and assigning it to the TransactionItem variable. The Process Transaction state is responsible for executing the main logic of the process for the current transaction item. The End Process state is responsible for closing the application, logging out of the Orchestrator, and performing any cleanup actions. If the process utilizes Orchestrator queues and a queue already exists with the Name provided and the Auto Retry function disabled, then the process will be able to execute these states without errors, assuming that there are no other issues or exceptions in the workflow. References: [Robotic Enterprise Framework], [REFramework States]

The UiPath Remote Runtime component is a component that enables the automation of remote applications or desktops, such as Citrix Virtual Apps, Windows Remote Desktop, or VMware Horizon, by using native selectors. Native selectors are expressions that identify UI elements reliably and accurately, without relying on OCR or image recognition activities1. The UiPath Remote Runtime component works as follows:

It is installed on the remote server where the applications or desktops are hosted.

It communicates with the dedicated UiPath extension that is installed on the client machine where Studio or Robot is installed.

It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension.

It allows the extension to generate native selectors for the remote UI elements in UIExplorer, a tool that helps you create and edit selectors2.

The UiPath Remote Runtime component is required for automating in virtual environments, as it provides a bridge between the remote server and the client machine, and enables the use of native selectors, which are more reliable and efficient than OCR or image recognition activities3.

References:

1: Studio - About Selectors - UiPath Documentation Portal 2: Studio - About UiPath Remote Runtime - UiPath Documentation Portal 3: Automating in Virtual Environments with the UiPath Computer Vision AI - YouTube

The Set Transaction Status activity in UiPath Studio is used to set the status of an Orchestrator queue item to Failed or Successful. This activity is usually placed at the end of the Process Transaction state in the REFramework template, after the Try Catch block. The status of the queue item determines whether it will be retried or not.

To retry a queue item, the status needs to be set to Failed. This means that the transaction was not completed successfully, and it needs to be processed again. The number of retries for a queue item depends on the MaxRetryNumber parameter in the Config file of the REFramework. By default, it is set to 2, which means that each queue item can be retried twice before it is marked as permanently failed.

The other options are not valid statuses for the Set Transaction Status activity. Option A is incorrect, because Retried is not a status, but a property of a queue item that indicates whether it has been retried or not. Option C is incorrect, because Abandoned is a status that is automatically assigned by Orchestrator to a queue item that has been in progress for more than 24 hours, and it cannot be retried. Option D is incorrect, because Postponed is a status that is automatically assigned by Orchestrator to a queue item that has a specific start date in the future, and it cannot be retried until that date is reached.

References: Activities - Set Transaction Status - UiPath Documentation Portal, REFramework documentation - UiPath Documentation Portal, Set Transaction Status - Help - UiPath Community Forum, [Set Transaction Status - Orchestrator - UiPath Community Forum]

A mock file is a copy of a workflow file that is used for testing purposes, where some activities are replaced by mock activities that simulate the expected behavior1. A mock file can be created by selecting Mock workflow under test in the Create Test Case window2. The mock file is stored in the Project > Mocks folder, and it has the same name as the original workflow file, with the suffix “_mock” added2. For example, if the original workflow file is named “MySequence.xaml”, the mock file will be named “MySequence_mock.xaml”.

When a mock file is created, the changes made in the original workflow file are automatically applied to the mock file when the project is saved2. This means that any new activities or modifications in the original workflow file are reflected in the mock file, except for the activities that are surrounded by mock activities2. The mock activities are not affected by the changes in the original workflow file, and they can only be edited within the mock file2.

Therefore, if you update “MySequence” and add a Log Message activity and a Verify Expression activity, and then save the project, the changes will be applied to the mock file, assuming that the file is closed. This means that the mock file will also have the Log Message activity and the Verify Expression activity added, unless they are inside a mock activity

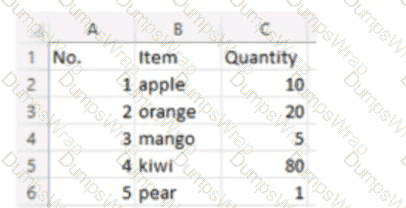

The LINQ query that can be used to return the maximum total Quantity from the attached table is dt.AsEnumerable. GroupBy(Function(x) x(“Item”).ToString). Max(Function(x) x.Sum(Function(y) Convert.ToInt32(y(“Quantity”).ToString))). This query uses the LINQ methods AsEnumerable, GroupBy, Max, and Sum to manipulate the data in the dt variable. The dt variable is a DataTable that contains the following data:

No.

Item

Quantity

1

apple

10

2

orange

20

3

mango

50

4

kiwi

80

5

pear

1

6

apple

5

7

mango

15

The AsEnumerable method converts the DataTable into an Enumerable collection of DataRow objects. The GroupBy method groups the elements of the collection by the value of the Item column, creating a collection of groups. Each group has a key, which is the Item name, and a list of elements, which are the DataRows that have the same Item value. The Max method returns the maximum value of the collection, based on a selector function. The selector function is a lambda expression that calculates the sum of the Quantity column for each group. The Sum method returns the sum of the elements in a collection, based on a selector function. The selector function is a lambda expression that converts the value of the Quantity column into an integer. Therefore, the query will group the DataRows by the Item name, calculate the total Quantity for each group, and return the maximum total Quantity among the groups. The maximum total Quantity is 80, which corresponds to the group with the key “kiwi”. References: [DataTable.AsEnumerable Method], [Enumerable.GroupBy Method], [Enumerable.Max Method], [Enumerable.Sum Method]

The purpose of the Invoke Code activity in UiPath is to invoke VB.NET or C# code, optionally passing it a list of input arguments. The Invoke Code activity allows the developer to write and execute custom code in VB.NET or C# within a UiPath workflow. The Invoke Code activity has a Code property, where the developer can enter the code to be executed. The Invoke Code activity also has an Arguments property, where the developer can specify the input and output arguments for the code. The Invoke Code activity can be useful for performing complex calculations, manipulating data, or integrating with external libraries or applications that are not supported by the existing UiPath activities. References: [Invoke Code]

To utilize the default REFramework without relying on Orchestrator queues, the essential prerequisite is to exclude the Get Transaction Item activity from the project, eliminate the three SetTransactionStatus activities from the SetTransactionStatus workflow, and change the variable type of the TransactionItem and TransactionData variables. The Get Transaction Item activity is used to retrieve a transaction item from the Orchestrator queue, which is not needed if the queue is not used. The SetTransactionStatus activities are used to update the status of the transaction item in the Orchestrator queue, which is also not needed if the queue is not used. The variable type of the TransactionItem and TransactionData variables should be changed to match the type of data that is used as input for the process, such as DataRow, String, or Object. These changes will ensure that the project does not interact with Orchestrator and can use other sources of data for the transactions. References: [The UiPath REFrameWork], [Get Transaction Item], [Set Transaction Status]

Server-side event triggers in UiPath Integration Service are used to automatically start UiPath processes in response to certain events, like data updates, insertions, or deletions in other systems. This allows for a high level of automation integration.

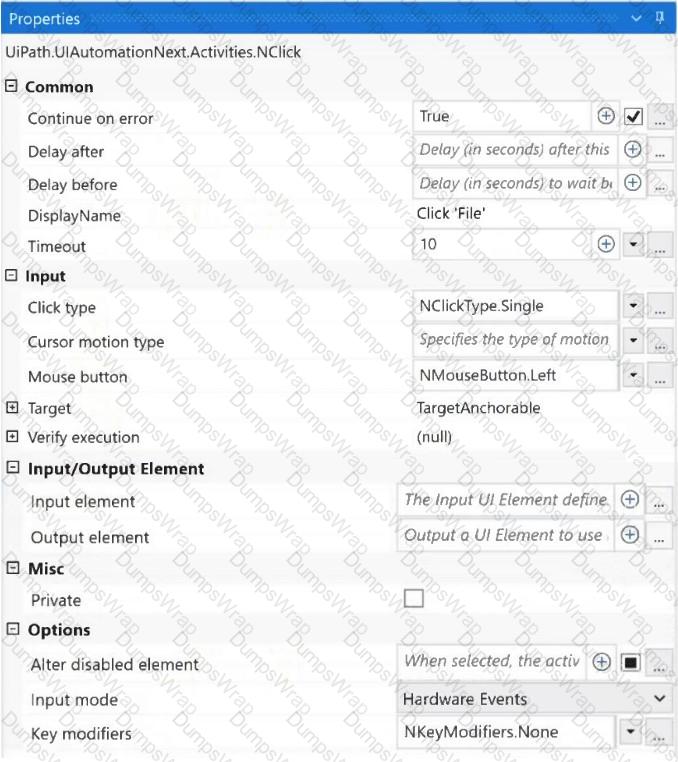

Click activity has the following properties:

•ClickType: Single

•MouseButton: Left

•Target.Timeout: 30000 ms (30 seconds)

•Target.WaitForReady: Interactive

The Target.Timeout property specifies the amount of time (in milliseconds) to wait for the activity to run before the SelectorNotFoundException error is thrown1. The default value is 30000 milliseconds (30 seconds)2.

The Target.WaitForReady property determines how long the activity should wait for the target UI element to be ready before performing the action1. The following options are available:

•None: Does not wait for anything except the target UI element to exist before executing the action1.

•Interactive: Waits until only a part of the app is loaded1.

•Complete: Waits for the entire app to be loaded1.

The default value is Interactive2, which means that the activity will wait until the UI element is visible and can be interacted with3.

Therefore, based on these properties, the Click activity will wait for the element indicated by the selector to be loaded and clickable within 30 seconds. If the element is loaded before the timeout, the activity will click it and continue to the next activity. If the element is not loaded within the timeout, the activity will throw an error and stop the execution. The animation on the web page does not affect the Click activity, as long as the target element is loaded and visible. Hence, the correct answer is A. Element is clicked once the element is fully loaded.

A sequential process is a type of process design that executes actions in a straightforward progression without iteration or branching. A sequential process is composed of a series of activities that are executed one after another, from top to bottom, in a linear fashion. A sequential process is best suited for simple scenarios when activities follow each other and there is no need for complex logic or decision making12.

The other options are not appropriate for an automation task that executes actions in a straightforward progression without iteration or branching, because they involve different types of process design that require more complex structures and logic. For example:

A transactional process is a type of process design that executes actions on a set of data items, one at a time, in a loop. A transactional process is composed of a dispatcher that adds data items to a queue, and a performer that processes each data item from the queue and updates its status. A transactional process is best suited for scenarios when activities need to be repeated for each data item and there is a need for reliability and scalability34.

An iterative process is a type of process design that executes actions repeatedly until a certain condition is met or a certain number of iterations is reached. An iterative process is composed of a loop that contains a set of activities and a condition that controls the exit of the loop. An iterative process is best suited for scenarios when activities need to be performed multiple times and there is a need for dynamic control of the execution flow56.

A linear process is not a type of process design, but a term that refers to a process that has a clear start and end point, and a well-defined sequence of steps that lead to a specific outcome. A linear process can be implemented using different types of process design, depending on the complexity and logic of the steps involved7.

References:

1: Studio - Workflow Design - UiPath Documentation Portal 2: Studio - Sequence - UiPath Activities 3: Studio - Transactional Business Process - UiPath Documentation Portal 4: Studio - Transactional Process - UiPath Activities 5: Studio - Control Flow - UiPath Documentation Portal 6: Studio - Loops - UiPath Activities 7: What is a Linear Process? - Definition from Techopedia

The Object Repository is a feature of UiPath Studio that allows you to store and manage UI elements that are used in your automation projects. You can create and edit UI descriptors for the UI elements, and reuse them across multiple workflows and projects. The Object Repository supports both the default UI framework and the Computer Vision framework for identifying UI elements.

The Computer Vision framework is a technology that uses artificial intelligence and machine learning to analyze the UI of any application and provide reliable selectors for the UI elements. The Computer Vision framework can handle complex and dynamic UIs that are not supported by the default UI framework, such as Citrix, SAP, or PDF applications.

The Capture All Elements feature in Object Repository is a feature that allows you to capture all the available elements of an application using the Computer Vision technology. You can use this feature to quickly and easily create UI descriptors for all the UI elements on the screen, without having to indicate each element individually. You can access this feature by clicking the Capture All Elements button on the Object Repository ribbon tab, or by using the Capture All Elements activity in the workflow.

The Capture All Elements feature has the following benefits:

It saves time and effort by capturing all the UI elements in one go, instead of indicating each element separately.

It ensures consistency and accuracy by using the same Computer Vision technology and selector logic for all the UI elements.

It allows you to edit, rename, or delete the UI descriptors after capturing them, and customize them according to your needs.

It enables you to reuse the UI descriptors across multiple workflows and projects, and share them with other developers.

The correct answer is C. To capture all the available elements of an application using the Computer Vision technology. This statement accurately describes the purpose of the Capture All Elements feature in Object Repository.

The other options are not correct statements. Option A is incorrect, because the Capture All Elements feature does not capture the selected elements of an application, but all the available elements. It also does not capture the elements from multiple screens simultaneously, but only from the current screen. Option B is incorrect, because the Capture All Elements feature does not capture the selected elements of an application, but all the available elements. Option D is incorrect, because the Capture All Elements feature does not capture the elements from multiple screens simultaneously, but only from the current screen.

References: Studio - Object Repository - UiPath Documentation Portal, Activities - Capture All Elements - UiPath Documentation Portal, Computer Vision - Introduction - UiPath Documentation Portal, Object Repository - UiPath Academy

In the Robotic Enterprise Framework (REFramework), best practices for logging at the "Information" level suggest recording entries that are informative about the progress of the automation. This would typically include:

The start and end of a transaction.

Status updates of a transaction.

The result of an operation, like a successful data retrieval or submission.

From the provided options, the one that aligns best with this approach would be:

B. Whenever data is fetched from external sources.

This action is a significant step in most automation processes because it usually represents a point where the robot interacts with systems outside of its immediate control, and it's important to have a record that this step has been completed successfully. It provides a clear and traceable log entry that helps in understanding the workflow's progress and is useful for audit trails and troubleshooting.

Logging every time an argument or value is used (C) would be excessive and not practical for production-level processes. Logging every exception (A) and error on a Queue Item (D) would typically be done at a "Warning" or "Error" level, not "Information".

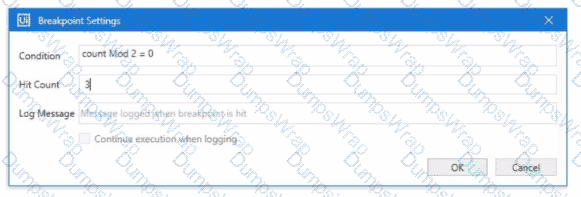

The Log Message option in the Breakpoint Settings allows the user to log custom information at each breakpoint while executing a process in Debug mode. This option can be accessed by right-clicking on a breakpoint and selecting Breakpoint Settings. The user can then enter a message that will be logged in the Output panel when the breakpoint is hit. The message can include variables, arguments, and pseudovariables, such as $PID, $TID, $FUNCTION, etc1

Option B is not recommended, because it requires the user to insert a Log Message activity before each activity with a breakpoint, which can be tedious and clutter the workflow. Option C is not relevant, because it enables or disables logging for all activities in the project, not just the breakpoints. Option D is not related, because it shows the execution flow of the process, not the custom information at each breakpoint.

References: 1: Studio - The Breakpoints Panel

The Object Repository in UiPath organizes elements in a hierarchical structure that reflects the logical arrangement of user interfaces and elements as they are captured and used in automation projects.

The correct hierarchy for elements in the Object Repository tree structure is:

A. Version, Application, Screen, UI Element.

This hierarchy starts with the 'Version', which could refer to the specific version of the application you are automating. Under each version, there could be multiple 'Applications' that you have elements for. Within each application, you might have captured various 'Screens' or dialogs, and within each screen, there are individual 'UI Elements' like buttons, text fields, dropdown menus, etc., that the automation interacts with.

However, it's important to note that in practice, when you are working with UiPath Studio and its Object Repository, the hierarchy usually starts with the 'Application', then under it, you have different 'Screens' of the application, and under each screen, you have the 'UI Elements'. The 'Version' is typically managed separately and is not a level in the hierarchy tree but rather a property or attribute of the application or element. Therefore, the most practical answer reflecting the usage in UiPath Studio would be:

C. Application, Screen, UI Element, Version.

The 'Version' here would be understood not as a layer in the hierarchy but rather as an attribute that can be associated with the 'Application' or 'UI Element'.

The REFramework is a project template based on State Machines, which follows the best practices regarding logging, exception handling, application initialization, and others1. The REFramework uses a queue in Orchestrator to store the transaction items, which are the units of data that need to be processed by the automation process1. The status of a transaction item can be set to Failed or Successful using the Set Transaction Status activity, which also allows specifying the ErrorType as Business or Application2. A Business ErrorType indicates that the transaction failed due to a business rule exception, such as invalid or incomplete data2. An Application ErrorType indicates that the transaction failed due to an application exception, such as a system error or a timeout2.

The REFramework has four main states: Init, Get Transaction Data, Process Transaction, and End Process1. The process transitions between these states based on the conditions and triggers defined in the state machine1. The process starts with the Init state, where the application is initialized and the Config file is read1. Then, the process moves to the Get Transaction Data state, where the next transaction item is retrieved from the queue1. If there is a transaction item available, the process moves to the Process Transaction state, where the main logic of the automation is executed1. If the transaction is processed successfully, the status is set to Successful and the process returns to the Get Transaction Data state1. If the transaction fails due to a Business ErrorType, the status is set to Failed and the process also returns to the Get Transaction Data state, without retrying the transaction1. If the transaction fails due to an Application ErrorType, the status is set to Failed and the process retries the transaction until the maximum number of retries is reached1. If there is no transaction item available, or if the maximum number of retries is reached, or if a System Error occurs, the process moves to the End Process state, where the application is closed and the final report is generated1.

Therefore, considering a process developed using REFramework, if the status of a transaction was set to “Failed” with the ErrorType specified as “Business”, the process will transition to the Get Transaction Data state, where it will fetch the next transaction item from the queue.

The value that will be displayed in the Output Panel at the end of the sequence is 9. This is because the code in the Invoke Code activity is looping through the array in_numArray and setting the variable out_numVar to the highest value in the array. The array in_numArray has the values {1, 2, 7, 9, 4} as shown in the list of arguments. The variable out_numVar is initialized to 0. The For loop iterates from 0 to the upper bound of the array, which is 4. In each iteration, the If condition checks if the current element of the array is greater than the current value of out_numVar. If it is, then out_numVar is assigned to the current element of the array. Otherwise, out_numVar remains unchanged. Therefore, after the first iteration, out_numVar becomes 1. After the second iteration, out_numVar becomes 2. After the third iteration, out_numVar becomes 7. After the fourth iteration, out_numVar becomes 9. After the fifth iteration, out_numVar remains 9, since 4 is not greater than 9. The Write Line activity outputs the value of out_numVar to the console, which is 9. References: Invoke Code

A linear process in UiPath is a type of process that is executed only once and does not involve any looping or branching logic. It is suitable for simple scenarios where the input data is fixed and the output is predictable. A linear process can be designed using a Sequence or a Flowchart diagram, but it does not use any Flow Decision, Switch, While, Do While, or For Each activity. If the process needs to process additional data, then the automation must be executed again with the new data as input. References: Framework for linear process or single transaction, How to modify ReFramework to Linear Process, Workflow Design, Difference between Linear process and Transactional process

The Object Repository is a feature of UiPath Studio that allows you to store and manage UI elements in a structured way, similar to a DOM (Document Object Model)1. The Object Repository can be created and used in both libraries and processes2. When you import a library as a dependency in a process, the Object Repository defined in the library will automatically be available in the process3. You can access the UI elements from the library by using the UI Activities tab in the Object Repository panel3. You can also drag and drop the UI elements from the library to the Designer panel3.

The "Step Out" action in UiPath Studio's debugging tools allows the developer to finish executing the current container (such as a sequence, loop, or workflow) and returns to the next higher level in the call stack. Essentially, it continues the execution of activities within the current container without stepping into any invoked workflows or activities.

The correct functionality provided by the "Step Out" action is:

D. Executes activities in the current container and then pauses the execution after stepping out to the next higher level in the call stack.

A Business Rule Exception is a type of exception that indicates that the data or the input required for the automation process is incomplete or invalid1. For example, a Business Rule Exception can occur when a phone number is missing a digit, or when a mandatory field is left blank1. A Business Rule Exception is usually thrown by the developer using the Throw activity, and it is handled by the Set Transaction Status activity, which sets the status of the transaction item to Failed and adds the exception details to the queue item2. By default, Orchestrator does not retry transactions that are failed due to Business Rule Exceptions, regardless of the Max # of retries setting for the queue3. This is because retrying the transaction does not solve the issue, and there are other better courses of action, such as notifying the human user of the error1. Therefore, if the first transaction item throws a Business Rule Exception, the transaction is not retried, but the remaining transactions continue processing, as long as they do not encounter any other exceptions.

The graphics show a UiPath workflow that contains a Try Catch activity with a Type Into activity inside the Try block and a Log Message activity inside the Catch block. The Type Into activity is configured to type “Typing into Notepad” into a Notepad window with the selector “”. The Log Message activity is configured to log the exception message in the Output panel.

If the automation is executed and Notepad.exe is not running, the Type Into activity will fail to find the target UI element and throw an exception. The exception will be caught by the Catch block and the Log Message activity will log the exception message in the Output panel. The exception message will contain the name of the exception type, which is ApplicationNotFoundException. This exception is thrown when the application that is specified in the selector is not found or not running. Therefore, the Log Message text value that is contained in the Output panel is ApplicationNotFoundException.

The other options are not correct, as they are not the exception type that is thrown by the Type Into activity when the application is not running. Option A is incorrect, because Exception is a generic term for any error or problem that occurs during the execution of a program, not a specific exception type. Option C is incorrect, because Try is not an exception type, but a keyword that marks the beginning of a block of code that may throw an exception. Option D is incorrect, because SelectorNotFoundException is not an exception type, but a possible error message that is displayed when the selector is invalid or does not match any UI element.

References: Activities - Type Into - UiPath Documentation Portal, Activities - Log Message - UiPath Documentation Portal, Studio - Try Catch - UiPath Documentation Portal, UiPath.Core.Activities.ApplicationNotFoundException Class - UiPath Documentation Portal

The default URL of the OCR server that runs the Computer Vision service is The Computer Vision service is a cloud-based service that provides OCR and AI capabilities for UiPath automation projects. The service can be accessed by using the Computer Vision activities in UiPath Studio, such as CV Screen Scope, CV Click, CV Type Into, and more. The service requires an API key and a URL to connect to the OCR server. The default URL is but it can be changed to a custom URL if the developer has a self-hosted OCR server. The API key can be obtained from the UiPath Automation Cloud portal or from the UiPath Marketplace. References: [About Computer Vision], [Computer Vision Activities]

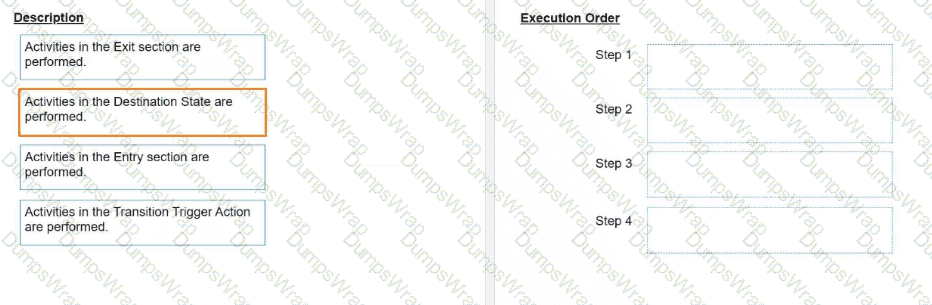

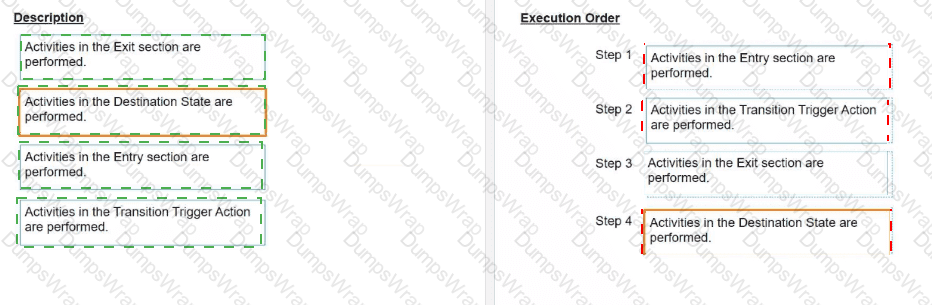

The Exit action in a state is an activity or a sequence of activities that are executed when the state is exited, before the transition to the next state occurs1. The purpose of the Exit action is to perform any final actions of the current state, such as closing applications, releasing resources, logging information, etc. The Exit action is executed even if the state transitions back to the same state2.

Option A is incorrect, because the Exit action does not stop the state machine’s execution, but rather prepares the state for the next transition. Option C is incorrect, because the Exit action does not revoke any entry actions, but rather complements them with any necessary exit actions. Option D is incorrect, because the Exit action does not define the conditions for the state transition, but rather executes after the conditions are evaluated.

References: 1: State 2: State Machines - Exit workflow and Trigger

 UiPath handles different dependency versions for multiple running processes that run at the same time by using the concept of isolation. This means that each running process uses its own required version of the dependency, without affecting or being affected by other processes. This ensures that the processes run smoothly and consistently, regardless of the dependency versions. The isolation is achieved by using the NuGet protocol, which allows the robot to download and store the dependencies in a local cache folder. The robot then loads the dependencies from the cache folder into separate application domains for each process, creating isolated environments for each process. References: [Managing Dependencies], [About the NuGet Protocol]

The Descriptor Coverage sub-panel in the Test Explorer provides Selector coverage information. This coverage data is crucial for understanding how well the selectors in a project are being tested.

In UiPath, the four job types according to the place of execution and robot impersonation are Foreground unattended, Background unattended, Attended, and Development. These job types differentiate the automation tasks based on whether they require user interaction (Attended), can run in the background without user intervention (Background unattended), are designed for development and testing purposes (Development), or are unattended tasks that require a virtual environment (Foreground unattended).References:

UiPath Orchestrator Guide: Job Types

To replace the functionality of the MessageBox with a LogMessage during mock testing, the developer can perform the action of Surround activity with mock. This action inserts a mock activity around the selected activity, which allows the developer to change the behavior of the activity for testing purposes. For example, the developer can right-click on the MessageBox activity and select Surround activity with mock from the dropdown menu. This will create a mock activity that contains the MessageBox activity. The developer can then edit the mock activity and replace the MessageBox activity with a LogMessage activity, which will write the message to the output panel instead of displaying it in a dialog box. This way, the developer can test the functionality of the workflow without having to interact with the MessageBox dialog box. References: [Mock Testing], [Surround Activity with Mock]

The recommended approach for handling tabular data when building a REFramework transactional project in UiPath is to utilize a DataTable variable to store and process the tabular data. A DataTable variable can hold data in a tabular format, with rows and columns, and can be easily manipulated using built-in activities such as Read Range, Write Range, Filter Data Table, For Each Row, etc. A DataTable variable can also be used as the input for the Get Transaction Data state in the REFramework, which retrieves each row of data as a transaction item for processing. References: [UiPath Studio Guide - Data Tables], [UiPath Studio Guide - The REFramework]

Based on the exhibits provided, the developer has set up an Invoke Method activity to add an item to the "Colors" list variable. The list is initially declared with two items "Red" and "Green". The Invoke Method activity is configured to add the string "Yellow" to this list.

The properties of the Invoke Method activity indicate that the method 'Add' will be called on the target object 'Colors' with the parameter "Yellow". This means the string "Yellow" will be added to the end of the list.

The outcome of executing this Invoke Method activity will be:

D. Colors will contain items in the following order: "Red", "Green", "Yellow".

This is because items in a List in .NET are added in sequence, and the "Add" method appends the new item to the end of the list.

When creating a new test case in UiPath Studio, you can configure a data source that can be imported through arguments and used when running the test case. You can choose from different options for the data source, such as File, Data Service, Test Data Queue, and Auto Generate. Each option has different implications for how the test data is updated in UiPath Orchestrator once the test case is published.

The option that restricts dynamic data update in UiPath Orchestrator once the test case is published is File. This option allows you to use Excel and CSV files as data sources for your test cases. When you import a file as a data source, a JSON file is created in the Test Data folder of your project, which contains the test data values. When you publish the test case, the JSON file is also published and stored in Orchestrator. The test data values are not updated dynamically in Orchestrator, unless you manually update the test data by choosing the Update Test Data option in Studio or Test Explorer. This option is useful when you want to use static or predefined test data that does not change frequently.

The other options do not restrict dynamic data update in UiPath Orchestrator once the test case is published. Option A, Test Data Queue, allows you to use a queue in Orchestrator as a data source for your test cases. You need to configure a JSON schema and add a test data queue in Orchestrator before using this option. The test data values are updated dynamically in Orchestrator, as the queue items are processed by the test case. This option is useful when you want to use queue items as test data and track their status and progress. Option B, Data Service with Filter, allows you to use Data Service entities as data sources for your test cases. Data Service is a feature of Automation Cloud that lets you create and manage data entities and relationships. You need to select an entity and apply a filter using the Query Builder before using this option. The test data values are updated dynamically in Orchestrator, as the entity records are modified by the test case or other processes. This option is useful when you want to use data entities as test data and perform CRUD operations on them. Option D, Auto Generate, allows you to use test data that is automatically generated by UiPath Studio to cover as many paths as possible during execution. You need to select a test data generation strategy and a number of test data sets before using this option. The test data values are updated dynamically in Orchestrator, as the test case is executed with different data sets. This option is useful when you want to use random or diverse test data that can increase the test coverage and quality.

References: Studio - Data-Driven Testing - UiPath Documentation Portal, RPA Testing with Studio - UiPath Academy, Step-by-step illustration of UiPath Test Suite | Community Blog, How to Create Test Automation with UiPath Studio

The statement that is true about the existing UiPath Studio installation packages is that the Attended Robot installation package installs only the UiPath Robot. The UiPath Robot is the component that executes the automation workflows designed in UiPath Studio. The Attended Robot installation package is intended for scenarios where the Robot works on the same machine as a human user and requires human input or supervision. The Attended Robot installation package does not include UiPath Studio or UiPath Assistant. UiPath Studio is the component that allows the developer to design and debug the automation workflows. UiPath Assistant is the component that allows the user to manage and run the automation workflows on their machine. The Unattended Robot installation package and the Automation Developer installation package both include UiPath Studio, UiPath Assistant, and UiPath Robot, but they are intended for different scenarios. The Unattended Robot installation package is for scenarios where the Robot works on a dedicated machine and does not require human input or supervision. The Automation Developer installation package is for scenarios where the developer needs to create and test the automation workflows on their machine. References: [UiPath Installation Guide], [UiPath Robot], [UiPath Studio], [UiPath Assistant]
